Page HANWHA TECHWIN 11 0 SM482(L) AIR Ass’y(4/5) C B-C 2 1 3 4 5 7 8 6 V ACUUM GENERATOR (AIR OPTION) 초기 진공도달압 : -93.3 kPa 이하 교체 기준 : -87 kPa V ACUUM PUMP (OPTION) 'a' 'b' U2-4-10*6.5, BLACK U2-4-10*6…
Page
HANWHA TECHWIN
109
SM482(L)
AIR Ass’y(3/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC14-900644 PLUG KQ2P-08 5
2 HP09-000007 MANIFOLD;ET1:ETC. 1
3 HP06-900282 STRAIGHT FITTING [KQ2R06-08] 3
4 HP06-000226 FITTING-KQ2R10-12;STRAIGHT 1
5 FC14-900641 PLUG KQ2P10 1
6 HP09-000150 COMPONENTS,ELECTRIC-SPABT-P10-R18-2N-K1- 1
7 HP06-900043 JOINT KQ2F04-01 1
8 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1
9 TE07-900096 METER GZ46-K-01-C1 1
10 HP09-001019 REGULATOR-ARP20-02BG-CJSZ1406;AIR,1.0MPA 1
11 HP04-001016 FILTER,AIR-AC30-03D-CJSZ2045 1
12 HP06-900050 UNION Y FITTING 1
13 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2
Page
HANWHA TECHWIN
110
SM482(L)

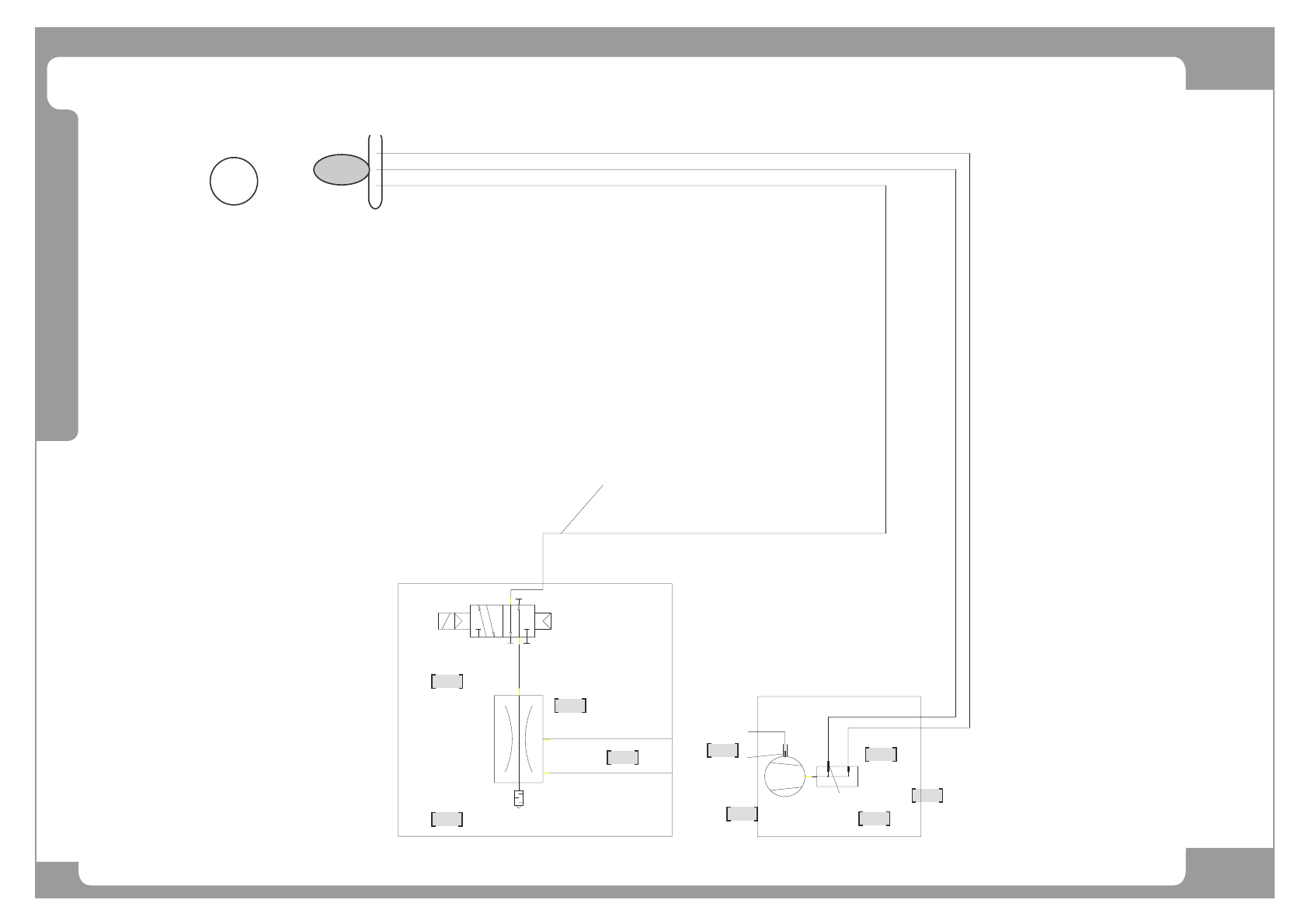

AIR Ass’y(4/5)
C
B-C
2
1
3
4
5
7
8
6
VACUUM GENERATOR (AIR OPTION)
초기 진공도달압 : -93.3 kPa 이하
교체 기준 : -87 kPa
VACUUM PUMP (OPTION)
'a'
'b'
U2-4-10*6.5, BLACK
U2-4-10*6.5, BALCK
VACUUM GENERATOR (OPTION) 㐐,
ḩ㚉
ⵤ㉔䚔
ᶷ
U2-4-10*6.5, BACLK
U2-4-4*2.5, BLACK
U2-4-12*8, BLACK
U2-4-4*2.5, BLACK
U2-4-12*8, BLACK
HP11-000074
INJECTOR-P5010.00.AJ.01. (PI48-3)
HP06-000277
KQ2L12-04S
HP06-900041
KQ2L04-01S
'a'
'b'
HP11-001019
VACUUM PUMP
KHB200A-304A-G1
HP06-001070
FITTING
KQ2VD12-02AS
HP06-000234 / KQ2R08-12
HP06-900046 / KQ2R04-08
HP06-900104
FITTING
KQ2L06-02S
U2-4-6*4(YELLOW)
HP14-000978
SOLENOID VALVE
VUVG_L18_M52
3-DIN908-G1/4
2-QSL-E-1/4-10
VUVG-L18-M52-RT-G14-1H2L
9
Page
HANWHA TECHWIN
111
SM482(L)
AIR Ass’y(4/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 HP14-000978 VALVE,SOLENOID-VUVG_L18_M52 1
2 HP06-900041 JOINT KQ2L04-01S 1
3 HP06-000277 FITTING-KQ2L12-04S;FITTING,R1/2, Rc1/2 1
4 HP11-000074 INJECTOR-P5010.00.AJ.01. (PI48-3) 1
5 HP06-900104 FITTING KQ2L06-02S 1
6 HP06-001070 FITTING-[KQ2VD12-02AS];ELBOW 1
7 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1
8 HP06-900046 JOINT KQ2R04-08 1
9 HP11-001019 PUMP-KHB200A-304A-G1;200W 1
