Page HANWHA TECHWIN 77 SM482(L) Head Ass’y(1/5) NO. Lev . PA R T N O . P A RT NAME Q'TY Old No. Reference 1 J7154108 6A HEAD_TOP_COVE R J71541086A 1 2 J70541 125A HEAD_COVER_SUPPOR T J70541 125A 2 3 AM03-0068 67F AS…

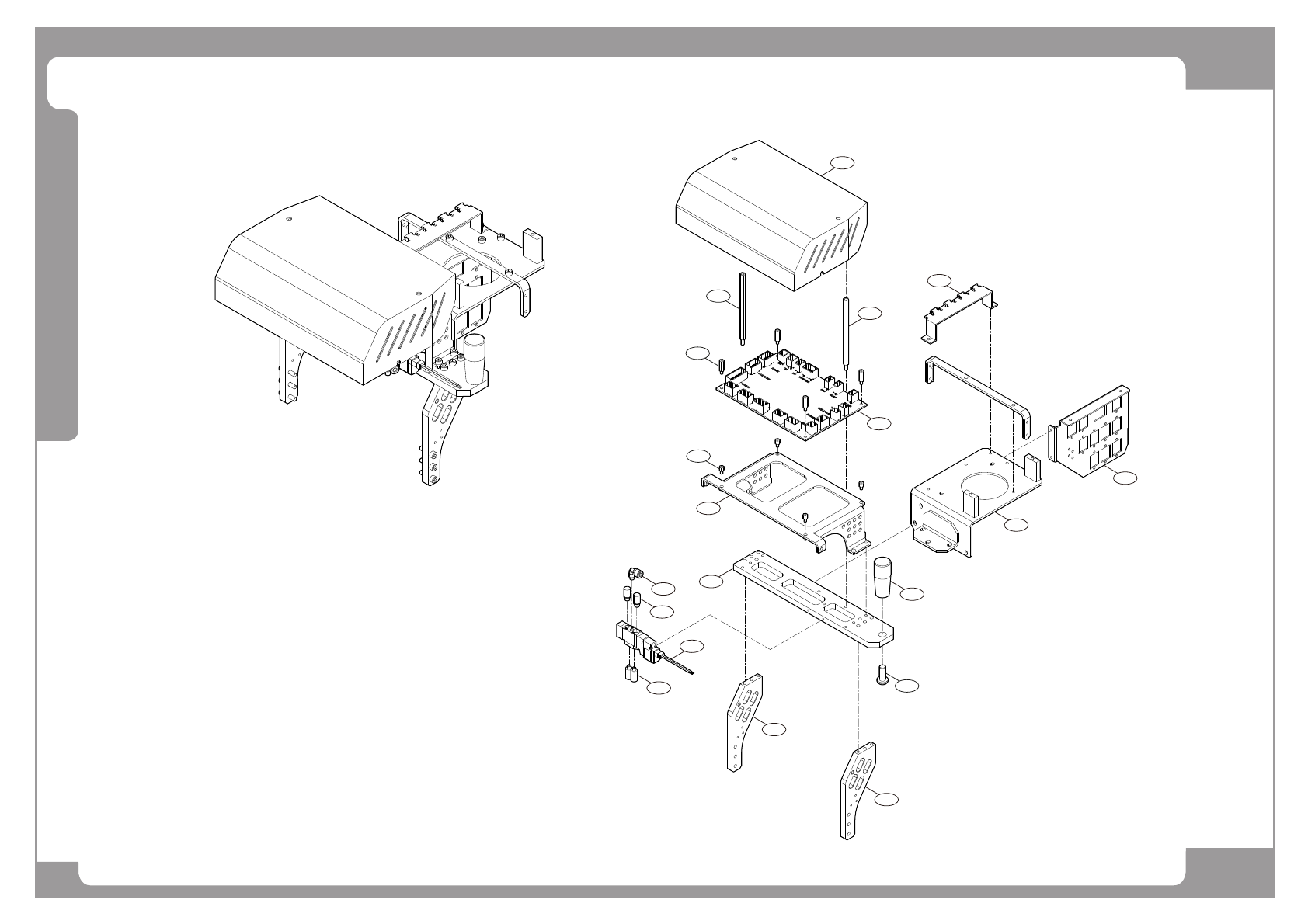

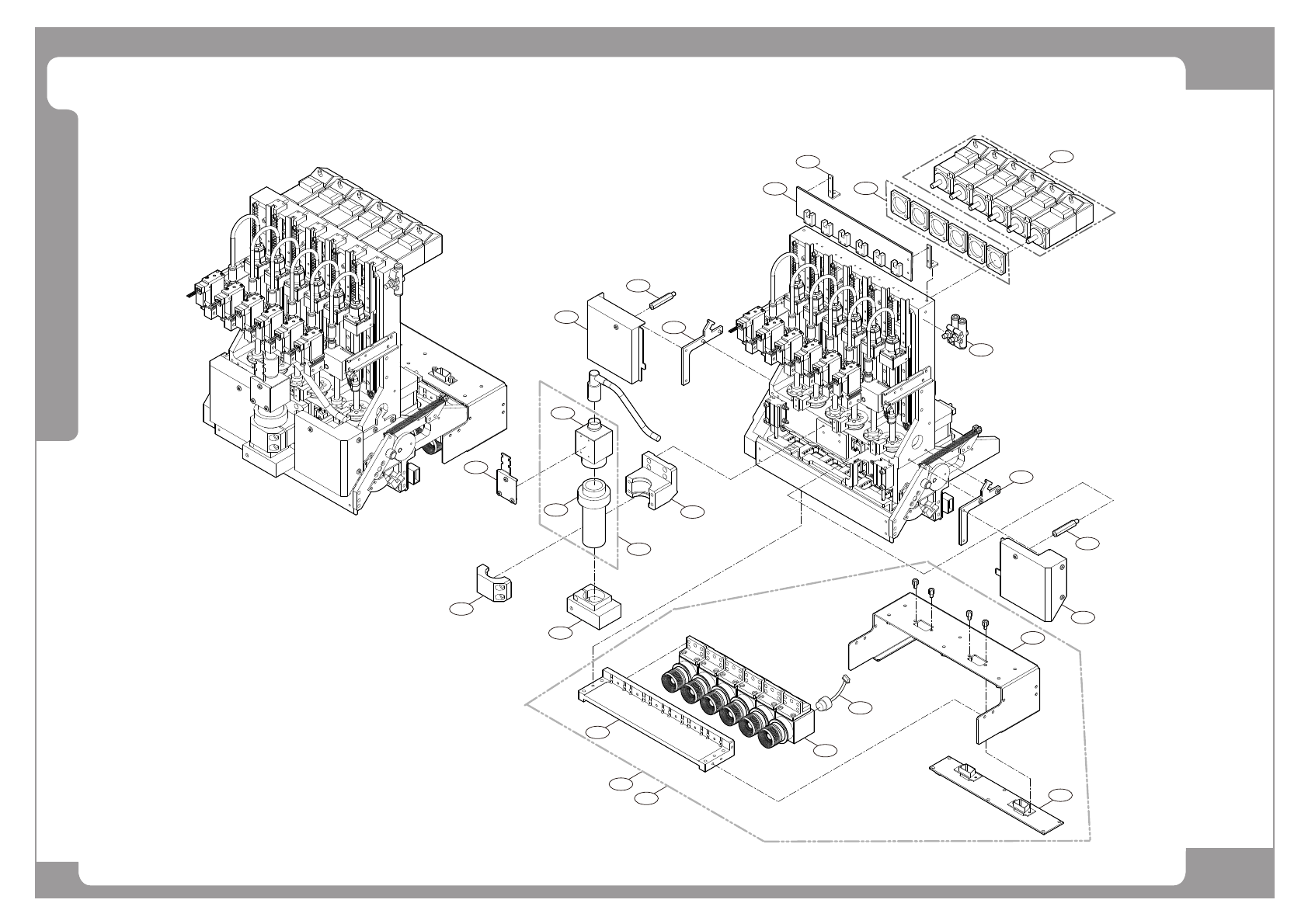

Page
HANWHA TECHWIN
76
SM482(L)
Head Ass’y(1/5)
4
1
2
6
10
3
7
8
9
11
14
13
5
5
12
15
2
16
17
Page
HANWHA TECHWIN
77
SM482(L)
Head Ass’y(1/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Reference
1 J71541086A HEAD_TOP_COVER J71541086A 1
2 J70541125A HEAD_COVER_SUPPORT J70541125A 2
3 AM03-006867F ASSY,BOARD-SM482 HEAD IF_D 1 AM03-006867C/ AM03-006867D/ AM03-006867E(~#2011)
4 J70541124A CABLE_SPACER J70541124A 1
5 J71541016B HARNESS SUPPORT 2
6 J71541019A HEAD_BOARD_BRACKET J71541019A 1
7 J71541018B CABLEVEYOR_BRACKET 1
8 J70541015B CONNECTOR_PANNEL 1
9 FC29-000216 HANLDE_GRAF8(MISUMI) 1
10 FC09-002283A BRACKET-HARNESS_PLATE 1
11 HP06-900183 FITTING_ELBOW KJL04-M5 1
12 HP14-900064 SOL VALVE[SY3120-5LZ-M5-F2] SY3120-5LZ-M 1
13 HP06-000074 FITTING-AS1211FM-M5-23;AS1211FM-M5-23 2 HP06-000084
14 HP06-900183 FITTING_ELBOW KJL04-M5 2
15 FC18-902837 SEMUS NABE SCREW M4*8 4
16 FC29-900610 HEX SUPPORT 4
17 FC18-902795 BUTTON_HEAD_CAP_SCREW M10*20 (NI/ZN) 1
Page
HANWHA TECHWIN
78
SM482(L)
Head Ass’y(2/5)
5
12
11
6
7
7
17
9
13
14
16
20
21
15
4
6
11
18
10
A
8
2
1
3
19
