1 7 Traverse Assy . L T -Axis KV5-1002 24 57 27 25 22 44 13 6 32 2 24 6 6 1 1 40 33 67 72 21 57 69 77,78,79,80 63 68 43 43 24 23 42 57 2 31 6 59 64 75 74 73 76 28 71 56 69 61 1 1 1 1 1 1 1 1 30 28 57 76 29 16 19 19 70 56…
System Parts
System Parts
61
KV5-9906
3
2
19
1
4
7 4
8
9
11
12
13
21
14
15
16
13
13
17
18
15
20
10
5
6
5
6
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KH1-M5138-00X SWITCH, EMG ASSY 1
2 KH6-M668W-00X HARNESS 8-5 2
3 KH6-M668M-10X HNS 8-9 (SELECT SW) 2
4 KV5-M1778-A0X SENSOR SHUTTER 4
5 KH2-M1131-01X LOCK SOLENOID 2
6 KG2-M668R-00X HARNESS 8-11 2
7 KH2-M7101-00X VALVE 1 1
8 KH2-M655E-10X SENSOR 1-2 1
9 KH2-M1819-00X VALVE 1
10 KV5-M1825-A0X SENSOR 1-1 1
11 KV5-M1826-A0X SENSOR 1-2 1
12 KV5-M7836-00X VALVE 1 1
13 KU0-M655F-10X SENSOR 1-3 3
14 KV5-M7840-A0X SENSOR VACUUM 4
15 KV5-M7114-A0X SENSOR 1-1 3
16 KH2-M1725-01X BRAKE MAGNETIC 1
17 KV5-M7121-R0X MULTI CYLINDER 1
18 KV5-M7121-L0X MULTI CYLINDER 1
19 KV5-M7124-A0X SENSOR VACUUM 2
20 KV5-M1134-A0X SENSOR PALETTE ORG. 1
21 KM5-M4580-02X I/O CONVEYOR UNIT ASSY 1
1
7
Traverse Assy.
LT-Axis
KV5-1002
24
57
27
25
22
44
13
6
32
2
24
6
6
1
1
40
33
67
72
21
57
69
77,78,79,80
63
68
43
43
24
23
42
57
2
31
6
59
64
75
74
73
76
28
71
56
69
61
11
11
11
11
30
28
57
76
29
16
19
19
70
56
56
56
62
62
74
11
11
73
12
49
50
41
5
60
59
13
39
60
42
23
59
59
67
5
3
45
20
18
17
60
3
59
59
59
12
36
72
57
57
30
14
10
37
34
68
38
29
60
56
20
59
26
15
16
70
46
27
6
4
8
6
23
6
8
4
6
24
7
7
72
60
60
71
71
57
48
73,74,75,76
80
79
78
77
53
53
68
58
69
81
11
75
71
81
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KB0-M223E-00X COLLAR 2 2
2 KB0-M2255-01X PULLEY 5 2
3 KB0-M2257-00X BELT 2 : B150S3M 1 5000 mm
4 KB0-M223F-00X COLLAR 3 2
5 KC0-M1751-00X PULLEY 1 : P16S3M0150 2
6 KB0-M2274-00X BEARING 2 8
7 KB1-M2274-00X BRG. 2 6
8 KB2-M2254-00X PULLEY 4 2
10 KJ9-M7829-00X VACUUM GENERATOR 4
11
KV5-M7819-A0X PAD VACUUM 4 S.T.D
KV5-M7819-E0X PAD VACUUM 4 BGA
12 K94-M220A-10X TAPE X-AXIS 1 1200 mm
13 90K50-41073M AC SERVO MOTOR 2
14 KV5-M7801-00X BASE 1
15 KV5-M7802-20X GUIDE BASE 2 1
16 KV5-M7803-00X GUIDE T 2
17 KV5-M7804-00X HOLDER BASE 1 1
18 KV5-M7805-00X HOLDER BASE 2 1
19 KV5-M7806-00X BELT CLAMP 2
20 KV5-M7807-00X STOPPER 2
21 KV5-M7808-00X PULLEY BASE 1
22 KV5-M7809-00X TOP SHAFT 1
23 KV5-M7810-00X SPACER 1 3
24 KV5-M7811-00X SPACER 2 4
25 KV5-M7812-00X PLATE HOLDER 1 1
26 KV5-M7813-00X PLATE HOLDER 2 1
27 KV5-M7814-00X PLATE WORK 2
28 KV5-M7815-00X BLACKET PAD 2
29 KV5-M7817-00X GUIDE CABLE 2
30 KV5-M7818-00X PLATE NUT 1 2
31 KV5-M7820-00X BELT 1 1
32 KV5-M7821-00X BELT 2 1
33 KV5-M7822-01X PULLY SHAFT 1 1
34 KV5-M7823-01X PULLY SHAFT 1 1
36 KV5-M7825-01X BELT TENSION 1 1
37 KV5-M7826-01X BELT TENSION 2 1
38 KV5-M7827-00X TENSION BRACKET 1
39 KV5-M7828-00X MOTOR BRACKET 1
40 KV5-M7829-00X MOTOR PLATE 1
41 KV5-M7833-00X VALVE BRACKET 1
42 KV5-M7834-00X BELT SHAFT 2
43 KV5-M7835-00X BELT BLOCK 2
44 KV5-M7836-00X VALVE 1 1
45 KV5-M7838-00X PULLEY COVER 1
46 KV5-M7840-A0X SENSOR VACCUM 4
48 $KM-10 MUFFLER 1
49 $SL6-01 JOINT 1
50 $UY6 JOINT 3
53 $USD6-4 JOINT 3
56 91317-03005 BOLT HEX. SOCKET HEAD 50
57 91317-03006 BOLT HEX. SOCKET HEAD 40
58 91317-03025 BOLT HEX. SOCKET HEAD 2
59 91317-04006 BOLT HEX. SOCKET HEAD 15
60 91317-04008 BOLT HEX. SOCKET HEAD 20
61 91317-05010 BOLT HEX. SOCKET HEAD 4
62 91317-06006 BOLT HEX. SOCKET HEAD 4
63 92907-04200 WASHER PLAIN 4
64 92907-05200 WASHER PLAIN 4
67 92A08-04003 SET SCREW M4X3 4
68 91317-0308 BOLT HEX. SOCKET HEAD 8
68 KV5-M7802-10X GUIDE BASE 1 1
69 KV5-M7841-00X TUBE GUIDE 1
69 98707-03006 SCREW, FLAT HEAD 4
70 98707-03010 SCREW, FLAT HEAD 12
71 KV5-M7819-B0X VACUUM PAD UNIT 4
72 95304-04600 NUT, HEXAGON 4
73 $TSU0604BU TUBE 2
73-1 KV5-M7844-20X TUBE (BLACK) 2 L=1500mm
74 $TSU0604B TUBE 2
74-1 KV5-M7843-20X TUBE (BLUE) 2 L=1500mm
75 $TUS0604Y TUBE 2
75-1 KV5-M7842-20X TUBE (YELLOW) 2 L=1500mm
76 $TUS0604N TUBE 2
76-1 KK5-M8592-30X TUBE (TRANSPARENCE) 2 L=1500mm
77 $TSU0425BU TUBE 1
77-1 KV5-M7847-10X TUBE 1 L=1000mm
78 $TSU0425B TUBE 1
78-1 KV5-M7848-10X TUBE 1 L=1000mm
79 $TUS0425Y TUBE 1
79-1 KV5-M7846-10X TUBE 1 L=1000mm
80 $TUS0425N TUBE 1
80-1 KV5-M7845-10X TUBE 1 L=1000mm
81 KV5-M7819-10X VACUUM PAD 4 2001/1
1
8

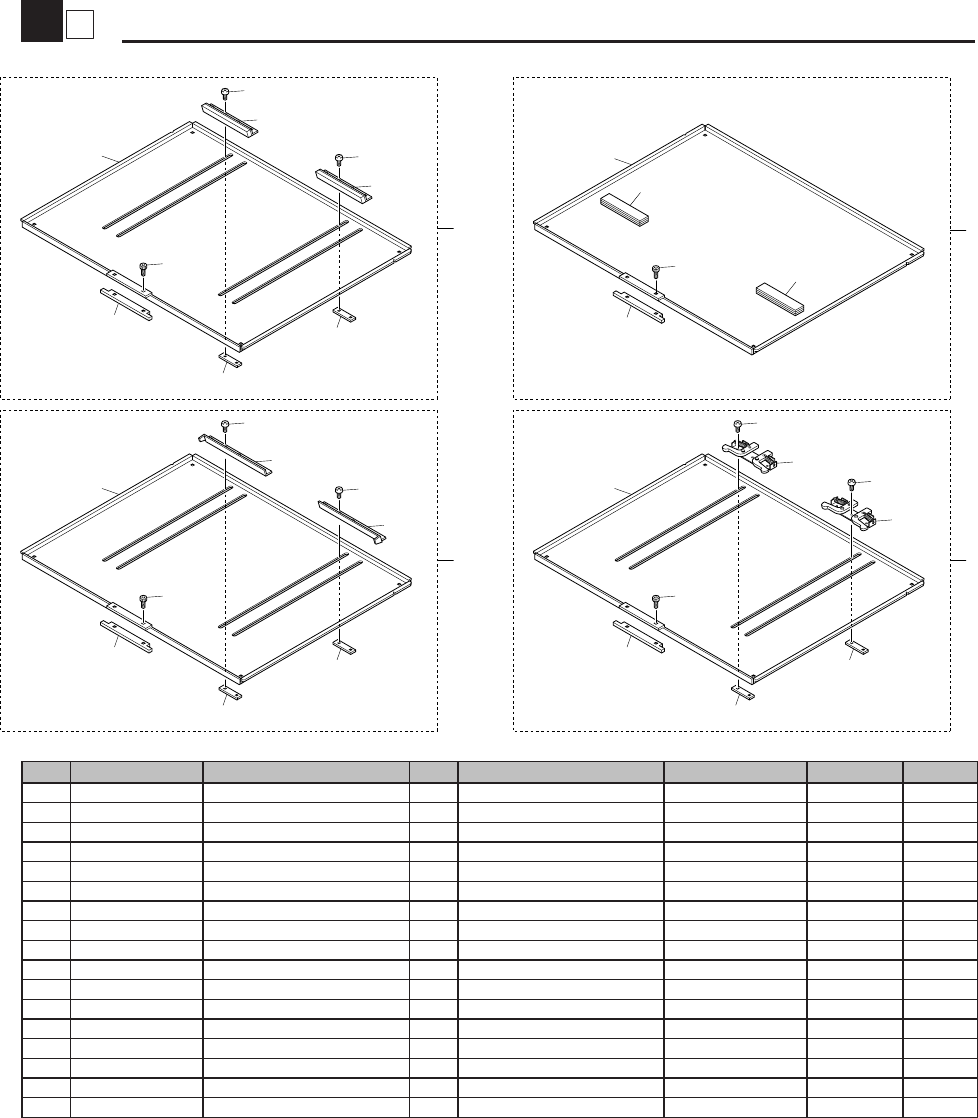

Pallet
Pallet
KV5-1301
5
7
3
1
6
4
2
5
7
2
12
11
6
13
13
4
5
9
3
8
6
4
2
5
10
2
15
16
3
14
6
4
2
15
16
2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
KV5-M1750-XXX PALLET ASSY SEL.
1 KH2-M1750-10X PALLET ASSY 20
2 K44-M7468-02X PLATE 8 PALLET 2
3 KH2-M1751-00X PLATE 1 1 Aluminum Plate t1.0
4 KH2-M1752-00X PLATE 2 1
5 KH2-M1754-02X KNOB 4
6 K16-90105-00X BOLT: TP-M3X6 2
6-1 90990-46J005 BOLT, THIN HEAD 2 (2008/6/3) ME30136 OK
7 KV5-M1753-00X PLATE 3 2
8 KH2-M1750-10X PALLET ASSY 20
9 KH2-M1753-20X PLATE 3,L 1
10 KH2-M1753-30X PLATE 3,R 1
11 KH2-M1750-20X PALLET ASSY 20 With Magnet
12 KH2-M1751-20X PLATE 1 1 SUS Plate t0.7
13 KL6-M1753-00X MAGNET 2
14 KV5-M1750-00X PALLET ASSY. 20 With Clip
15 90990-08J001 SCREW PAN HEAD 4
