26.カムボックス 2 Cam box 2(WPA)
CP-642ME PARTS LIST ver05
26-3
26.カムボックス 2(WPA)
26.Cam box 2(WPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
45WPA1201 1 HOOK, SPRING ﾌｯｸ ｽﾌﾟﾘﾝｸﾞ
46WPA1721 1 SPRING ｽﾌﾟﾘﾝｸﾞ
47WPA1543 1 BKT BKT
48WPA1552 1 BKT BKT
49S2085H 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ DAD25X40-ZG553A2-3731W
50WPA1560 2 BKT BKT
51WPA1570 4 WASHER ﾜｯｼｬ
52WPA1710 2 PIN ﾋﾟﾝ
53H31811 2 PLATE, END ﾌﾟﾚｰﾄ ｴﾝﾄﾞ PBR8FN
54AWPQ9011 1 LEVER ﾚﾊﾞｰ
55AWPQ9022 1 BOLT, STUD ﾎﾞﾙﾄ ｽﾀｯﾄﾞ
56GPH4491 9 ROLLER ﾛｰﾗ
57H4130E 18 BEARING ﾍﾞｱﾘﾝｸﾞ 608ZZ
58S1001A 18 CIR-CLIP ｻｰｸﾘｯﾌﾟ RTW022
59N4038A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X10L
60N4027A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X5L
61N1089A NUT, HEX ﾅｯﾄ 六角 M8
62W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
63W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
64W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
65W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
66W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M-8-H
67W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
68H5348A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X55L
69H5345A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X40L
70H5343A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X30L
71H5342A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X25L
72H5341A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X20L
73H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L
74H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
75H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
76WPA1182 2 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ
77WPA1230 1 JOINT ｼﾞｮｲﾝﾄ
78WPA1410 1
HOLDER, PIN(For Station 18)
ﾎﾙﾀﾞ ﾋﾟﾝ(18st用)
79WPA1513 1 BKT BKT
80WPA1601 4 PIN, LOCATING ﾋﾟﾝ 位置決め
81A4043A 3 ELBOW ｴﾙﾎﾞ PL6-01(1/8)
82H3181E 2 PLATE, END ﾌﾟﾚｰﾄ ｴﾝﾄﾞ MBWT5
84WPL0232 2 NUT ﾅｯﾄ
86W1036T 32 WASHER, THRUST ﾜｯｼｬ ｽﾗｽﾄ AS2542
87WPU0230 1 JOINT (For CUTTER) ｼﾞｮｲﾝﾄ (ｶｯﾀ用)
88WPM0310 1 JOINT (For Station 18) ｼﾞｮｲﾝﾄ (18st用)
91N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8
92A4042A 7 ELBOW ｴﾙﾎﾞ PL6-M5M
26.カムボックス 2 Cam box 2(WPA)
CP-642ME PARTS LIST ver05
26-4
26.カムボックス 2(WPA)
26.Cam box 2(WPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
93WPQ0784 4 HOLDER ﾎﾙﾀﾞ
94W1008T WASHER, TOOTHED CONICAL ﾜｯｼｬ ｷﾞｻﾞ付皿 WW-12
95H4118T 8 BEARING ﾍﾞｱﾘﾝｸﾞ SST-1810DSG
96WPQ0760 4 COLLAR ｶﾗｰ
97WPQ0771 4 NUT ﾅｯﾄ
98WPQ0791 4 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
99H42726 4 BEARING, SPHERICAL ﾍﾞｱﾘﾝｸﾞ 球面 NB-5
100WPQ0850 4 PIN ﾋﾟﾝ
101WPQ0811 4 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ
102H2025A 4 PIN, SNAP ﾋﾟﾝ ｽﾅｯﾌﾟ SSP-5
103K5203A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X6L
104WPA1781 4 WASHER, THRUST ﾜｯｼｬ ｽﾗｽﾄ
105. SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M6X6L
106WPL0432 2 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ
107H1156T 14 PACKING ﾊﾟｯｷﾝｸﾞ MYP-25
108H2050A 2 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ φ3X15
109S2176A 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TS6-01
110WPA5152 7 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ
111WPP0131 1 JOINT ｼﾞｮｲﾝﾄ
112N1089A 1 NUT, HEX ﾅｯﾄ 六角 M8 P=1.25 ･

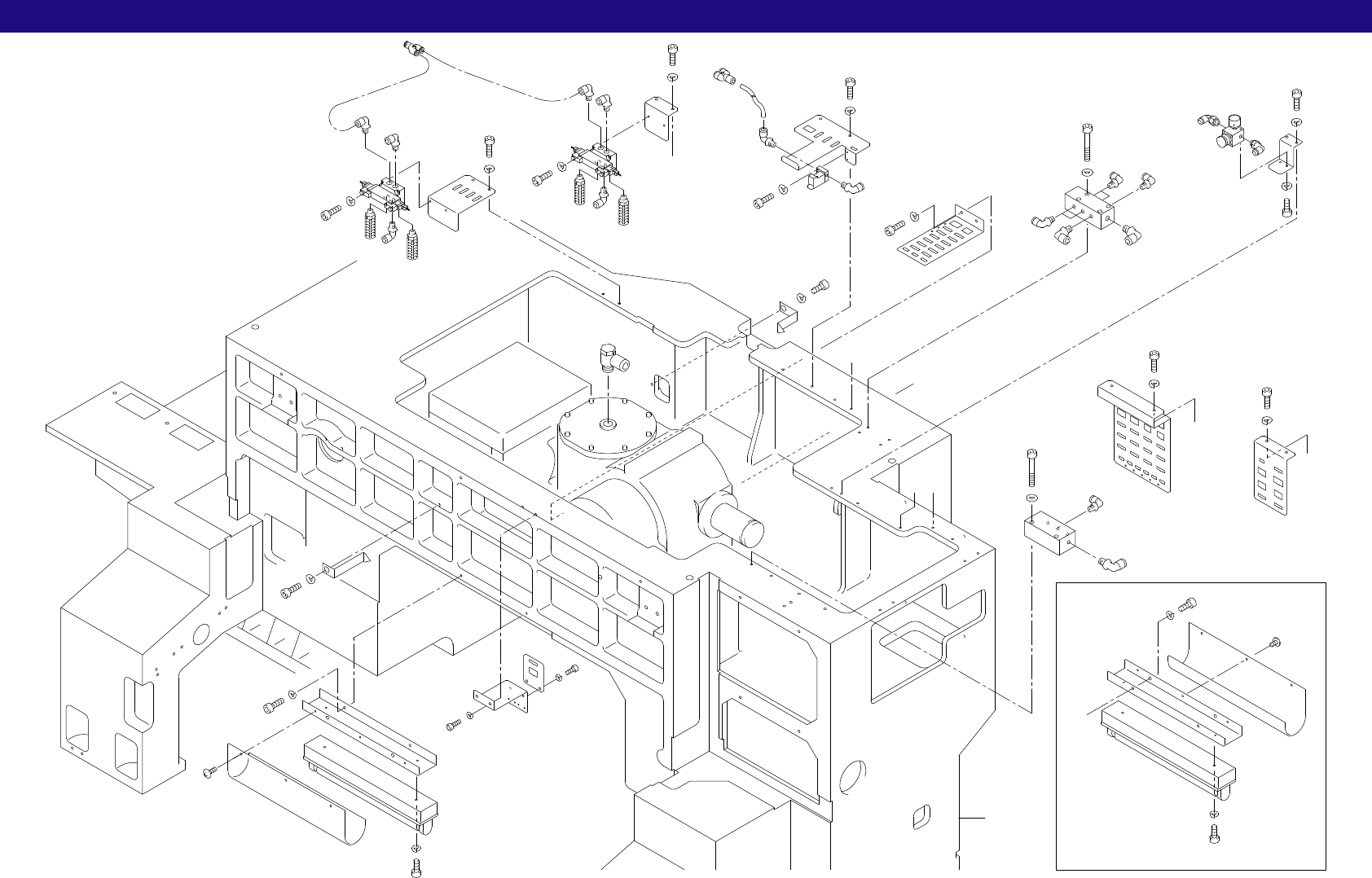

27.1.カムボックス 3 Cam box 3(WPA)
CP-642ME PARTS LIST ver05
27-1
27.1.カムボックス 3(WPA)
27.1.Cam box 3(WPA)
62
53
65
79
78
53
62
75
78
76
60
77
45
47
64
56
45
80
48
44
47
62
53
38
42
60
49
53
62
74
53
62
39
93
94
90
92
88
87,95
91
89
62
56
43
45
47
防音カバー取付時のみ
Used only when the noise reduction cover is attched
85
47
58
63
33
x10
41
46
97
40
61
52
62
53
35
41
62
53
37
41
46
41
46
40
61
52
34
57
62
31
30
62
54
67
68
62
54
29
28,96
61
51
58
63
32
46
46
46
