32-2
32.インコンベア(逆流れ)(オプション)(WQC)
32.In conveyor(Right-to-left board flow)(Option)(WQC)
32.インコンベア(逆流れ)(オプション) In conveyor(Right-to-left board flow)(Option)(WQC)
CP-642ME PARTS LIST ver05
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L (HELPS)
2W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M (HELPS)
3W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 (HELPS)
4GVC1151 1 DOG ﾄﾞｯｸﾞ (HELPS)
5GVC1160 1 NUT ﾅｯﾄ (HELPS)
6H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L (HELPS)
7W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M (HELPS)
8W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 (HELPS)
9GVC1141 1 DOG ﾄﾞｯｸﾞ (HELPS)
10H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L (HELPS)
11W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M (HELPS)
12MQC5110 1 BKT BKT (HELPS)
13IQC6072 2 NUT ﾅｯﾄ (HELPS)
14S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
15H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L
16W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
17W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
18GVC2182 1 BKT, SENSOR BKT ｾﾝｻ
19H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
20W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
21MQC4092 1 BKT, SENSOR BKT ｾﾝｻ
22IQC6072 2 NUT ﾅｯﾄ
23S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
24S3169A 1 SENSOR ｾﾝｻ EX4-LS30RE
25H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L
26W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
27W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
28MQC5130 1 BKT, SENSOR BKT ｾﾝｻ
29H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
30W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
31W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
32MQC3630 1 BKT, SENSOR BKT ｾﾝｻ ･
33.アウトコンベア(逆流れ)(オプション) Out conveyor(Right-to-left board flow)(Option)(WQC)
CP-642ME PARTS LIST ver05

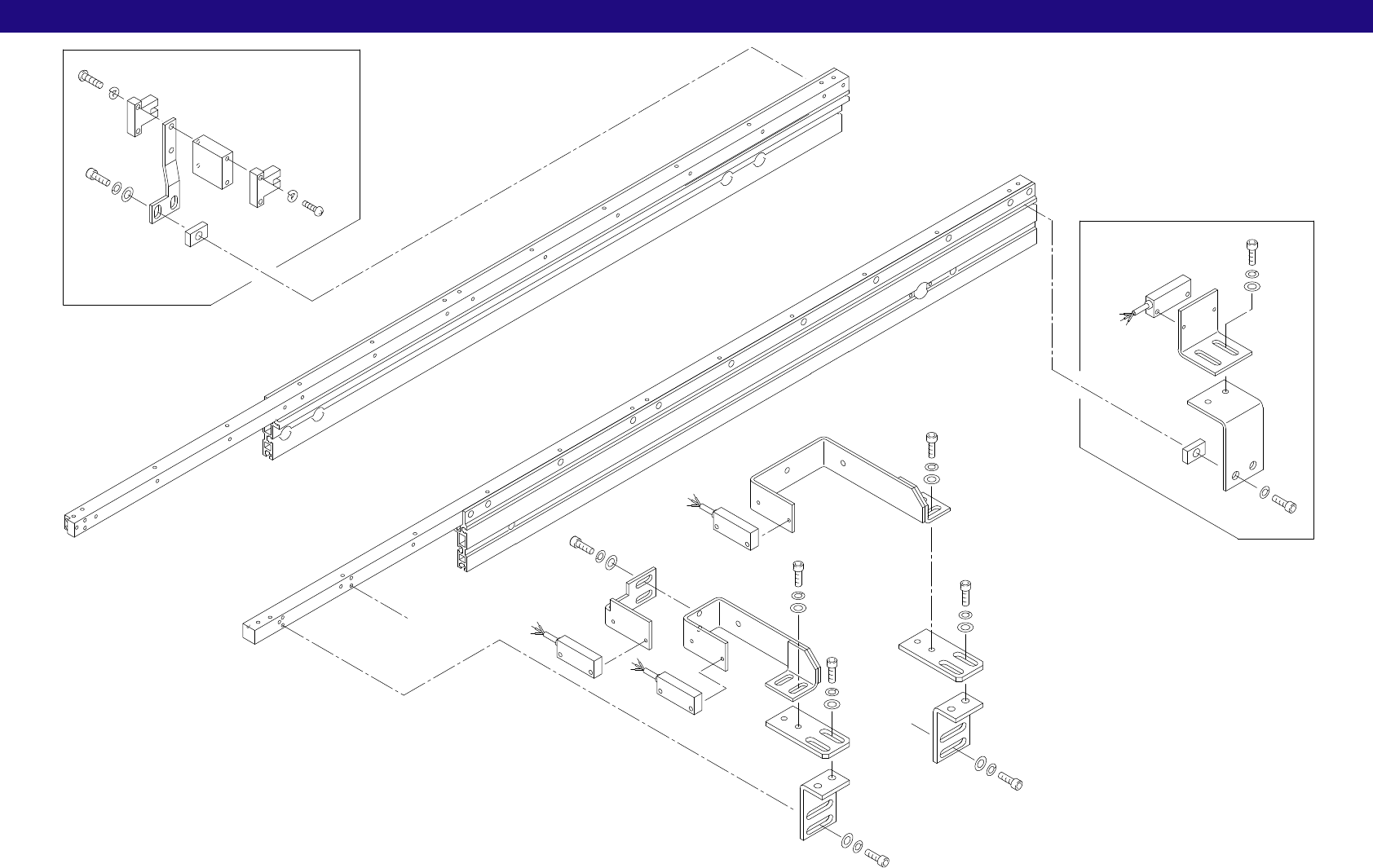

33-1
33.アウトコンベア(逆流れ)(オプション)(WQC)
33.Out conveyor(Right-to-left board flow)(Option)(WQC)
HELPS
HELPS
13
14
15
17
16
11
12
10
9
49
50
5
7
5
50
49
6
4
3
2
1
18
19
20
21
22
23
24
25
26
30
29
28
27
33
32
31
41
42
43
44
48
47
46
45
34
35
40
39
38
37
36
x3
A
A
33-2
33.アウトコンベア(逆流れ)(オプション)(WQC)
33.Out conveyor(Right-to-left board flow)(Option)(WQC)
33.アウトコンベア(逆流れ)(オプション) Out conveyor(Right-to-left board flow)(Option)(WQC)
CP-642ME PARTS LIST ver05
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L (HELPS)
2W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M (HELPS)
3W1044A WASHER, FLAT ﾜｯｼｬ ﾋﾗ 4W-5 (HELPS)
4IQC6072 2 NUT ﾅｯﾄ (HELPS)
5S4042A 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SX670A (HELPS)
6MQC5101 1 BKT, SENSOR BKT ｾﾝｻ (HELPS)
7GVC4070 1 SPACER ｽﾍﾟｰｻ (HELPS)
9H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
10W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
11MQC4092 1 BKT, SENSOR BKT ｾﾝｻ
12IQC6072 2 NUT ﾅｯﾄ
13H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
14W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
15W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
16GVC2182 1 BKT, SENSOR BKT ｾﾝｻ
17S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
18H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
19W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
20W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
21MQC5010 1 BKT, SENSOR BKT ｾﾝｻ
22S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
23H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L
24W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
25W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
26MQC5040 1 PLATE ﾌﾟﾚｰﾄ
27H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L
28W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
29W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
30MQC5050 1 BKT BKT
31H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
32W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
33W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
34MQC5020 1 BKT, SENSOR BKT ｾﾝｻ
35S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
36H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
37W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
38W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
39MQC5120 1 BKT, SENSOR BKT ｾﾝｻ
40S3122Z 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3RC4
41H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L
42W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
43W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
44MQC5040 1 PLATE ﾌﾟﾚｰﾄ
45H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L
