38.リールセット台 Feeder setting jig(WPJ)
CP-642ME PARTS LIST ver05
38-2
38.リールセット台(WPJ)
38.Feeder setting jig(WPJ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WPJ0681 1 BASE ﾍﾞｰｽ
2WPJ0690 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準
3WPJ0700 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準
4WPJ0710 1 CLAMPER ｸﾗﾝﾊﾟ
5WPJ0721 1 GUIDE, HOLDER ｶﾞｲﾄﾞ 受け
6WSD0013 2 CLAMPER ｸﾗﾝﾊﾟ
7WSD0641 2 BOLT ﾎﾞﾙﾄ
8WSD0651 2 SPRING ｽﾌﾟﾘﾝｸﾞ
9H4435T 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1150ZZ
10R5025T 2 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ 5ﾟX10
11W1013A 2 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
12W1012A 2 WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
13W1011A 12 WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
14H5321A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12
15H5300A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15
16H5289A 12 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12
17AWPJ9020 1 Feeder Setting JIG ﾘｰﾙｾｯﾄ台 ･

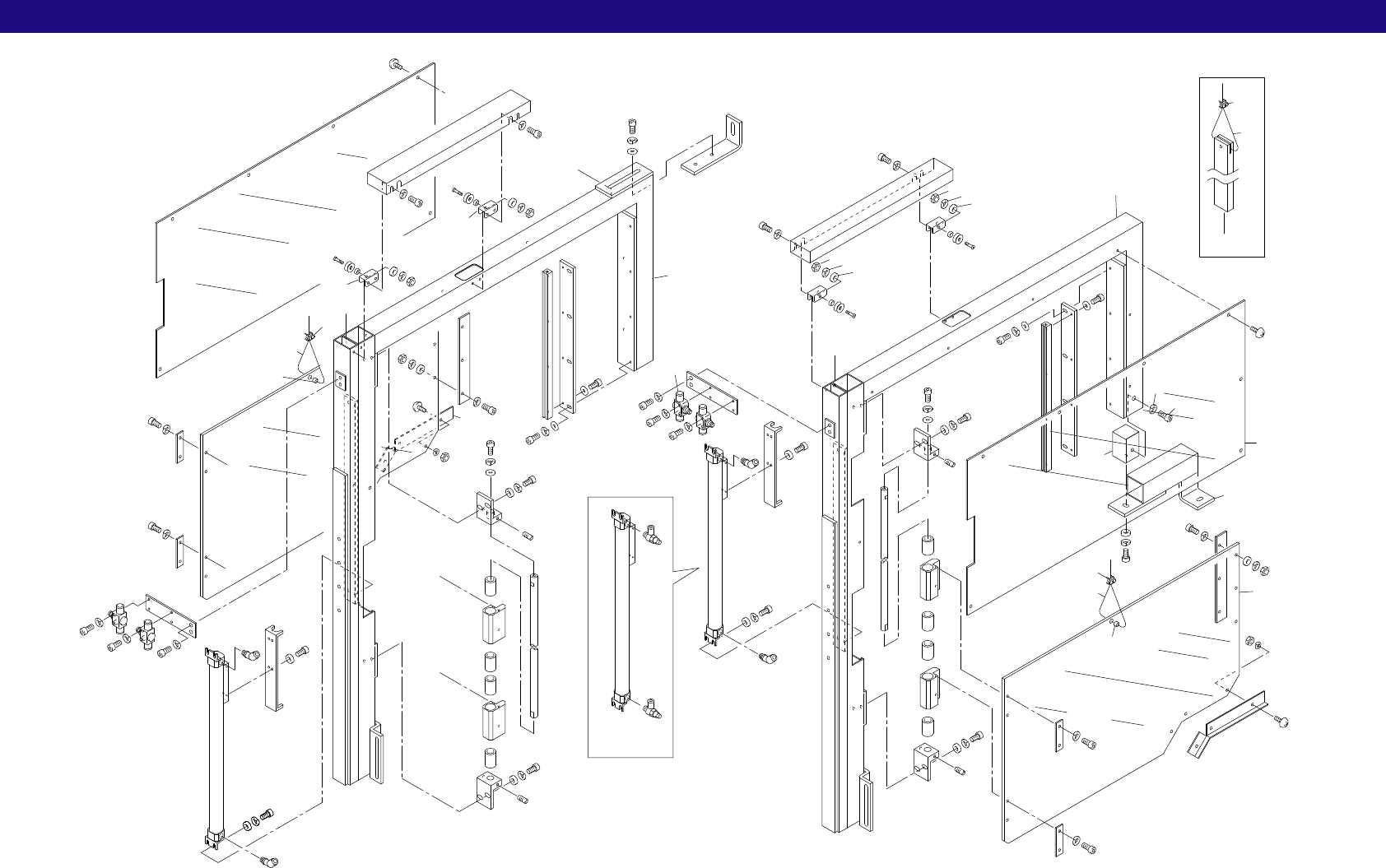

39.シャッタ Shutter(WAF)
CP-642ME PARTS LIST ver05
39-1
39.シャッタ(オプション)(WAF)
39.Shutter(Option)(WAF)
B
B
A
A
C
C
D
D
C
14
43
52
37
31
47
39
42
48
45
37
40
7
22
21
20
31
37
37
45
40
22
21
20
7
17
19
37
32
45
37
40
18
37
33
58
38
60
61
9
10
1
46
30
32
37
40
38
29
35
56
39
54
53
37
57
37
57
54
55
31
37
51
31
37
45
37
40
2
22
21
20
7
22
21
20
45
37
40
7
43
25
39
11
10
9
40
37
32
46
30
42
39
36
38
29
35
3
44
30
6
5
13
15
16
19
37
32
53
54
54
37
57
37
57
39
56
55
26
5
6
30
41
38
50
55
3
44
42
39
36
23
12
24
24
24
12
24
3
44
42
39
36
26
55
41
38
50
23
3
44
42
39
36
24
12
24
24
12
24
14
8
19
37
32
59
61
60
38
40
37
45
18
37
33
42
39
49
17
15
16
37
32
19
15
16
4
26
62
62
UK
x8
39.シャッタ Shutter(WAF)
CP-642ME PARTS LIST ver05
39-2
39.シャッタ(オプション)(WAF)
39.Shutter(Option)(WAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WAF5300 1 BKT, FENCE BKT ﾌｪﾝｽ
2WAF5310 1 BKT, FENCE BKT ﾌｪﾝｽ
3WAF5350 4 BKT BKT
4WAF5210 1 BKT BKT
5WAF5360 2 PLATE ﾌﾟﾚｰﾄ
6W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L
7WAF5380 4 BKT BKT
8AWAF8590 2 PLATE ﾌﾟﾚｰﾄ WAF5330+WWM0210
9WAF1210 2 RAIL ﾚｰﾙ
10WAF1220 2 RAIL ﾚｰﾙ
11WAF5220 1 HOLDER ﾎﾙﾀﾞ
12WAF5340 4 HOLDER ﾎﾙﾀﾞ
13WAF5390 2 BALANCER ﾊﾞﾗﾝｻ
14AWAF8580 2 COVER ｶﾊﾞｰ WAF5320+WWM0210
15WAF2310 2 WIRE, STAINLESS STEEL ﾜｲﾔ ｽﾃﾝﾚｽ
16K3017A 4 CLIPPER, WIRE ｸﾘｯﾊﾟ ﾜｲﾔ ﾟ1.5
17GXZ0230 2 COLLAR ｶﾗｰ
18GXZ0251 2 PLATE ﾌﾟﾚｰﾄ
19GXZ0240 4 PLATE ﾌﾟﾚｰﾄ
20GXZ0350 4 PIN ﾋﾟﾝ
21H4106A 4 BEARING ﾍﾞｱﾘﾝｸﾞ AS-1130
22GXZ0360 4 COLLAR ｶﾗｰ
23GXZ0300 2 BAR ﾊﾞｰ
24H4282A 8 BEARING, SLIDE ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ KH1228
25H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
26WAF5370 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ
29GXZ0310 2 WASHER ﾜｯｼｬ
30H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L
31H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
32H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
33H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X15L
35H5304A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X25L
36H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
37W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
38W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
39W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
40W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
41W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
42W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
43K5207A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X5L
44N4036A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X5L
45N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
46W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L
47H5327A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X30L
