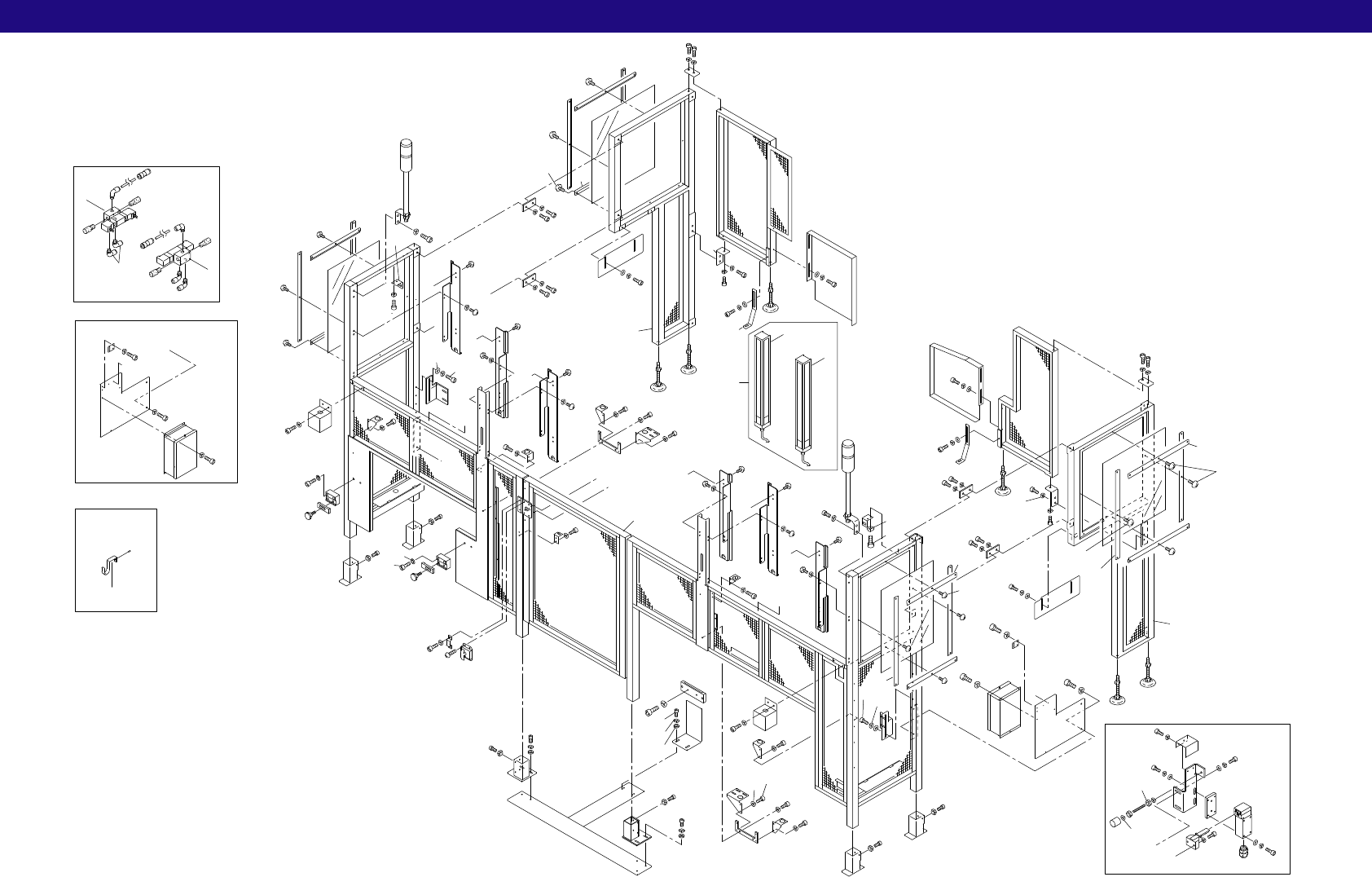

40.1.フェンス Fence(WAF)
CP-642ME PARTS LIST ver05
40-1
40.1.フェンス(オプション)(WAF)
40.1.Fence(Option)(WAF)
11
45
38
31
44
37
36
43
138
53
44
29
74
75
42
13
6
42
42
5
13
6
77
42
44
42
76
42
44
42
38
45
49
79
36
43
141
42
44
42
136
43
36
135
43
36
45
140
43
36
134
131
142
42
42
14
72
73
71
12
50
40
12
50
40
73
72
71
75
74
121
44
122
120
33
139
43
36
1
43
36
44
77
42
44
42
136
43
36
42
44
76
42
137
43
36
5
13
42
6
42
42
6
13
38
45
49
78
12
50
40
50
40
12
43
36
132
131
45
140
43
36
133
135
43
36
29
44
53
37
44
31
11
45
38
138
43
36
137
132
x22.5
18
19
101
18
17
101
19
18
17
18
19
19
19
27
46
41
143
50
38
45
49
2
10
49
45
38
50
40
15
38
45
49
40
50
16
46
41
27
81
47
43
52
23
22
54
43
24
20
48
44
37
21
43
36
48
44
53
45
50
25
50
45
26
9
40
144
Option
84
46
41
46
41
42
42
111
42
111
85
86
86
82
84
46
41
41
46
100
48
44
53
80
80
46
41
41
46
124
123
46
41
46
45
38
125
128
127
130
43
47
36
126
129
49
45
38
128
41
46
41
46
124
85
86
42
47
43
36
41
46
80
80
83
42
86
111
42
111
41
46
46
41
123
125
84
46
41
46
41
53
44
48
100
46
41
84
41
49
G
D
A
B
E
E
F
E
E
F
F
F
E
E
C
G
A
B
D
C
G
40.1.フェンス Fence(WAF)
CP-642ME PARTS LIST ver05
40-2
40.1.フェンス(オプション)(WAF)
40.1.Fence(Option)(WAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WAF5295 1 FENCE, SAFETY ﾌｪﾝｽ 安全
2WAF5070 1 PLATE ﾌﾟﾚｰﾄ
5AWAF8540 2 COVER ｶﾊﾞｰ WAF1020+WWM0210
6WAF1080 4 RETAINER, COVER 押え ｶﾊﾞｰ
9WAF1630 1 STAND ｽﾀﾝﾄﾞ
10WAF5180 1 STAND ｽﾀﾝﾄﾞ
11WAF5420 2 PLATE ﾌﾟﾚｰﾄ
12WAF5100 4 STAND ｽﾀﾝﾄﾞ
13GXZ2240 4 RETAINER, COVER 押え ｶﾊﾞｰ
14S40363 3 SENSOR, AREA ｾﾝｻ ｴﾘｱ FGS-450-21-1
15GPZ2460 1 BKT BKT
16GPZ2451 1 BKT, RETAINER BKT 押え
17H1073F 2 VALVE ﾊﾞﾙﾌﾞ SOL PCD345-01D-D24SP
18S1056A 4 SILENCER ｻｲﾚﾝｻ AN101-01
19S2171A 6 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01
20GPZ4221 1 BKT BKT
21GPZ4290 1 COVER ｶﾊﾞｰ
22GPZ4242 1 SPACER ｽﾍﾟｰｻ
23S3197A 1 SW, LIMIT SW ﾘﾐｯﾄ XCK-J5970
24S3199A 1 SW, LIMIT SW ﾘﾐｯﾄ ZCK-Y09
25SZ42002 1 BOLT ﾎﾞﾙﾄ
26M1013A 1 MAGNET ﾏｸﾞﾈｯﾄ KM025C
27H2003T 2 INDICATOR LAMP 表示灯 SEF-102AF-Y
29AWEM-7301 1 SET SW, BOX ｾｯﾄSW BOX
31AWEE-7701 1 BOX TERMINAL BOX ﾀｰﾐﾅﾙ
33H1018D 1 HANDLE 取手 THA-299-Z
36H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
37H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
38H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
40H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L
41H5340A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X15L
42K5215A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X10L
43W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
44W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
45W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
46W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
47W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
48W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
49W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
50N1085A NUT, HEX ﾅｯﾄ 六角 M6
52H5296A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X40L
53H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
54H5294A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X30L
71WAF5160 2 HOLDER ﾎﾙﾀﾞ
40.1.フェンス Fence(WAF)
CP-642ME PARTS LIST ver05
40-3
40.1.フェンス(オプション)(WAF)
40.1.Fence(Option)(WAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
72WAF5150 2 CLAMPER ｸﾗﾝﾊﾟ
73. 2 KNOB, KNURLED ﾂﾏﾐ ﾛﾚｯﾄ KNM-36-M10
74H5343A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X30L
75W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M-8-H
76WAF5690 2 BKT, SENSOR BKT ｾﾝｻ
77WAF5700 2 BKT, SENSOR BKT ｾﾝｻ
78WAF5430 1 BKT, CONNECTING BKT ﾂﾅｷﾞ
79WAF5440 1 BKT, CONNECTING BKT ﾂﾅｷﾞ
80. 4 BOLT, LEVELING ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ C-275-A-4 (Option)
81. 1 SEAL ｼｰﾙ STP13.5
82WAF0572 1 FENCE ﾌｪﾝｽ (Option)
83WAF0582 1 FENCE ﾌｪﾝｽ (Option)
84WAF0620 4 JOINT ｼﾞｮｲﾝﾄ (Option)
85AGPZ8140 2 COVER ｶﾊﾞｰ (Option) GPZ4310+WWM0210
86GPZ4320 4 RETAINER, COVER 押え ｶﾊﾞｰ (Option)
100WAF0660 2 COVER ｶﾊﾞｰ (Option)(H=900∼965)
101Y3033A 2 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KCH06-00
111GXZ2240 4 RETAINER, RAIL 押え ﾚｰﾙ (Option)
120. SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M6X10L
121MPZ6320 1 HOOK ﾌｯｸ
122H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
123WAF0840 2 BKT, FENCE BKT ﾌｪﾝｽ (Option)
124WAF0850 2 PLAT, JOINT ﾌﾟﾚｰﾄ ｼﾞｮｲﾝﾄ (Option)
125H5145H 2 BOLT, LEVELING ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ TM-257-No3 (Option)
126WAF5450 1 FENCE, FRONT ﾌｪﾝｽ ﾌﾛﾝﾄ (Option)
127WAF5461 1 FENCE, FRONT ﾌｪﾝｽ ﾌﾛﾝﾄ (Option)
128WAF5470 2 BKT, FENCE BKT ﾌｪﾝｽ (Option)
129WAF0940 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ (Option)
130WAF0930 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ (Option)
131WAF2150 2 BKT BKT
132WAF2140 2 BKT, WIRING BKT 配線
133MPZ5090 1 BKT, WIRING BKT 配線
134MPZ5120 1 BKT, WIRING BKT 配線
135MPZ5110 2 BKT, WIRING BKT 配線
136WAF0950 2 BKT, WIRING BKT 配線
137WAF1310 2 BKT BKT
138WAF1340 2 BKT BKT
139WAF1320 1 BKT BKT
140H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
141WAF5711 1 BKT, SENSOR BKT ｾﾝｻ
142WAF5721 1 BKT, SENSOR BKT ｾﾝｻ
143GXD7050 2 HOOK ﾌｯｸ Handy terminal option
144N4002A 2 SCREW ﾈｼﾞ M4X12L No.2 Handy terminal option
･
