3 . インコンベア I n c o n v e y o r ( W Q C ) CP-642ME P AR TS LIST ver05 3 - 4 3 . インコンベア( W Q C ) 3 . I n c o n v e y o r ( W Q C ) 番号 図番 & ｺ ｰ ﾄ ﾞ 番号 個数 品名 規格 備考 N o . Q T Y D e s c r i p t i o n R a t i n g R e m a r …

100%1 / 162
3.インコンベア In conveyor(WQC)
CP-642ME PARTS LIST ver05
3-3
3.インコンベア(WQC)
3.In conveyor(WQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. QTY Description Rating Remarks
46MQC3570 1 PLATE ﾌﾟﾚｰﾄ
47MQC3540 1 BKT, SENSOR BKT ｾﾝｻｰ
48MQC3550 1 BKT, SENSOR BKT ｾﾝｻｰ
49MQC1500 1 BKT BKT
50S3122A 3 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
51S3122Z 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3RC4
53WQC0042 1 JOINT ｼﾞｮｲﾝﾄ
54IQC6062 25 NUT ﾅｯﾄ
55IQC6072 4 NUT ﾅｯﾄ
56JQC3672 4 NUT, HEX ﾅｯﾄ 六角
57MQC3461 1 SHAFT ｼｬﾌﾄ
58MQC1292 4 PULLEY ﾌﾟｰﾘ
60MQC3313 2 GUIDE ｶﾞｲﾄﾞ
62MQC1061 4 PULLEY ﾌﾟｰﾘ
63IQC6041 4 RETAINER, BARING 押え ﾍﾞｱﾘﾝｸﾞ
64MQC3254 1 BRIDGE ﾌﾞﾘｯｼﾞ
65MQC3441 8 WASHER ﾜｯｼｬ
66WQC0010 4 BOLT ﾎﾞﾙﾄ
67N1092A 8 NUT, HEX ﾅｯﾄ 六角 M10 P=1.5
68N4015A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X4L
69N4027A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X5L
70W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
71W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
72W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
73W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
74W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
75W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
76W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
77W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
78W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
79W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
80N1085A NUT, HEX ﾅｯﾄ 六角 M6 P=1.0
81N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
82H5342A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X25L
83H5330A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X40L
84H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
85H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
86H5320A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X10L
87H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
88H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
89H5296X BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X90L
90H5292A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X20L
91H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
92H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
Drg.No. & Code No.
3.インコンベア In conveyor(WQC)
CP-642ME PARTS LIST ver05
3-4
3.インコンベア(WQC)
3.In conveyor(WQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. QTY Description Rating Remarks
93K5261A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M5X10L
94K5208A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X6L
95K5186T SCREW, COUNTERSUNK 小ﾈｼﾞ 皿 M4X6L
96K5177A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M2.5X14L
97MQC1160 4 PULLEY ﾌﾟｰﾘ
98MQC1170 4 BOLT ﾎﾞﾙﾄ
99MQC1181 4 COLLAR ｶﾗｰ
100H4129A 8 BEARING ﾍﾞｱﾘﾝｸﾞ LF950ZZ
101WQC0120 2 HOLDER 受け
102WQC0521 1 COVER, CHAIN ｶﾊﾞｰ ﾁｪｰﾝ
103MQC0141 1 BKT, SENSOR BKT ｾﾝｻ
106MQC1430 2 BKT BKT
109GVC4070 1 SPACER ｽﾍﾟｰｻ
111M5017H 2 MOTOR, INDUCTION ﾓｰﾀ ｲﾝﾀﾞｸｼｮﾝ 2IK6RGN-A-K1 注1.Note.1
112S4040X 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A
114H5332A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X50L
115. SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X15L
116W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
117MQC4092 1 BKT BKT
118GVC2182 1 BKT, SENSOR BKT ｾﾝｻ
120MQC1480 1 PLATE ﾌﾟﾚｰﾄ
121MQC1490 1 RETAINER, PLATE ﾌﾟﾚｰﾄ押え
122H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X5L
123MQC1460 1 PLATE ﾌﾟﾚｰﾄ
124MQC1470 1 PLATE ﾌﾟﾚｰﾄ
125H5181A BOLT, HEX ﾎﾞﾙﾄ 六角 M6X12L
126WQC4100 1 BRIDGE ﾌﾞﾘｯｼﾞ
127IQC6291 1 NUT ﾅｯﾄ
128WQC0111 1 BKT BKT
129GVC2311 1 SHAFT ｼｬﾌﾄ
130N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8
131WQC4160 1 BKT BKT
132WQC4340 1 BKT BKT
133S3130T 1 SW, PHOTOELECTRIC SW 光電 PS-49
134A1040H 1 AMPLIFIER ｱﾝﾌﾟ PS2-61
135H5279A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X20L
136WQC6070 2 BELT ﾍﾞﾙﾄ
137H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L
138M5063H 2 MOTOR, REVERSIBLE ﾓｰﾀ ﾘﾊﾞｰｼﾌﾞﾙ RM-H6A06ZMR244
注1.正逆流れ用
Note.1: For board flow changeover manual.
Drg.No. & Code No.

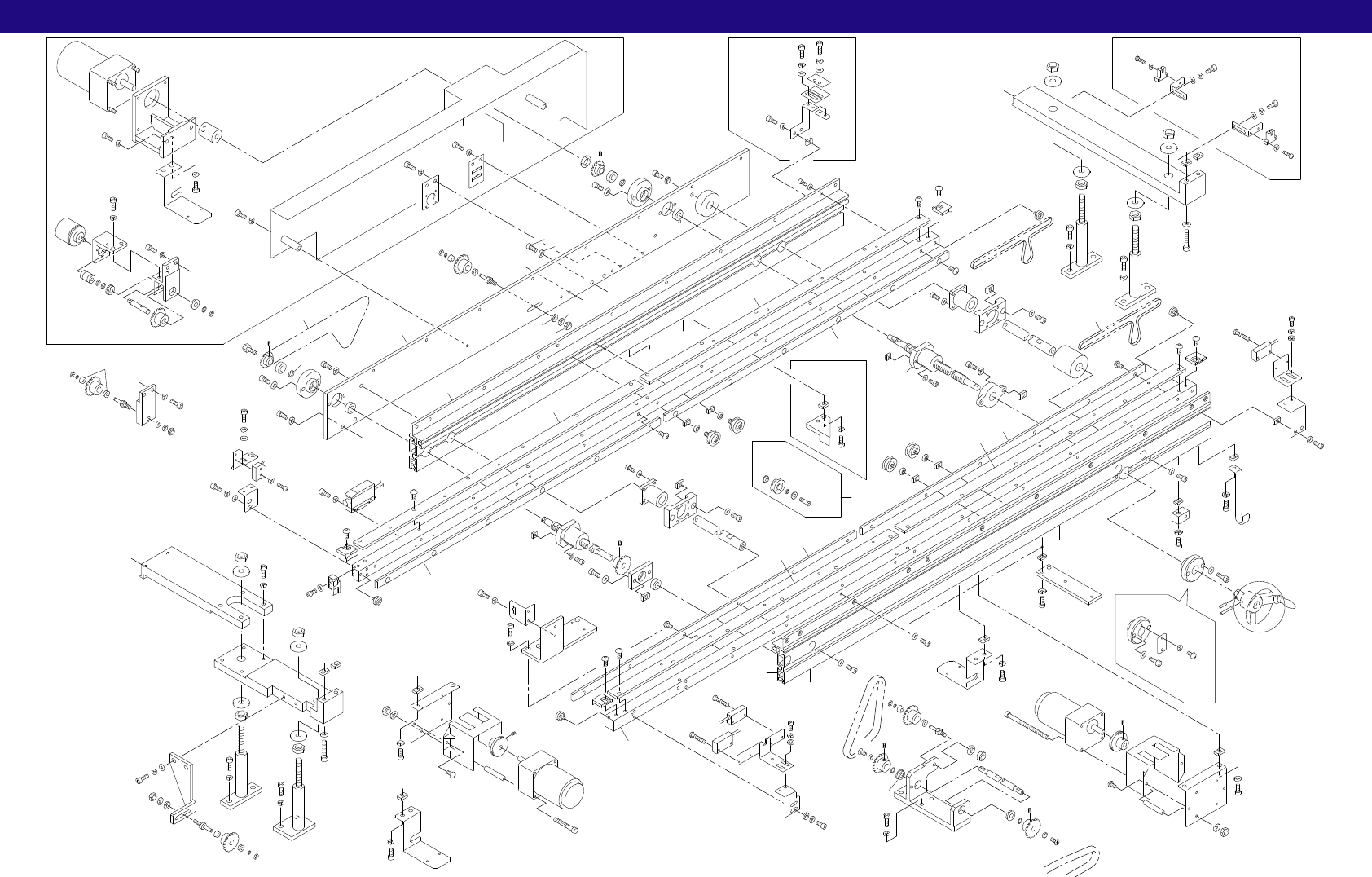

4.アウトコンベア Out conveyor(WQC)
CP-642ME PARTS LIST ver05
4-1
4.アウトコンベア(WQC)
4.Out conveyor(WQC)
A
HELPS
H
B
HELPS
G
44
122
82
99
44
33
92
84
82
98
35
79
36
67
68
172
108
34
103
44
122
82
99
103
67
68
172
79
36
108
34
35
33
44
82
98
84
92
140
141
84
108
88
102
28
88
102
29
63
62
44
111
82
100
158
83
101
85
82
91
159
61
72
27
65
136
83
101
59
52
148
71
137
59
52
148
146
135
83
101
147
152
82
122
83
102
145
129
144
143
156
106
89
157
84
106
82
153
170
151
83
125
151
83
130
D
C
F
E
HELPS
87
96
46
90
47
94
81
46
90
48
94
81
163
86
83
100
91
82
85
45
44
161
46
90
31
61
72
61
27
65
82
96
162
46
90
73
65
27
61
72
61
159
82
91
32
118
59
52
71
64
109
74
109
64
71
52
59
80
41
77
83
102
78
93
84
106
57
110
46
90
48
94
81
87
95
49
44
46
90
138
86
83
100
149
155
154
138
86
83
100
149
155
154
80
171
82
B
A
D
H
G
F
HELPS
HELPS
107
44
128
82
99
107
42
6
8
88
101
9
107
107
169
155
168
164
86
83
101
165
93
84
106
166
155
167
11
11
4
107
107
3
10
42
58
150
82
85
133
134
150
82
85
132
127
41
83
102
88
102
24
60
82
97
17
87
99
18
60
66
80
19
97
82
72
61
27
65
61
51
85
91
82
14
13
82
97
17
82
97
87
99
18
60
80
75
19
160
60
C
E
42
3
107
107
2
110
57
54
86
83
102
53
56
110
87
97
88
102
1
107
87
97
44
116
82
86
82
98
44
37
9
107
107
42
107
58
4
5
41
40
39
44
70
82
97
22
69
84
104
23
20
87
97
21
44
76
89
105
115
112
114
115
113
39
41
40
39
105
89
76
44
21
87
97
20
69
15
84
104
98
87
72
80
16
60
44
6
5
86
83
100
x8
