6 . 1 . 基板クランプ B o a r d c l a m p i n g u n i t ( W S S ) CP-642ME P AR TS LIST ver05 6 - 2 6 . 1 . 基板クランプ( W S S ) 6 . 1 . B o a r d c l a m p i n g u n i t ( W S S ) 番号 図番 & ｺ ｰ ﾄ ﾞ 番号 個数 品名 規格 備考 N o . D r g . N …

100%1 / 162

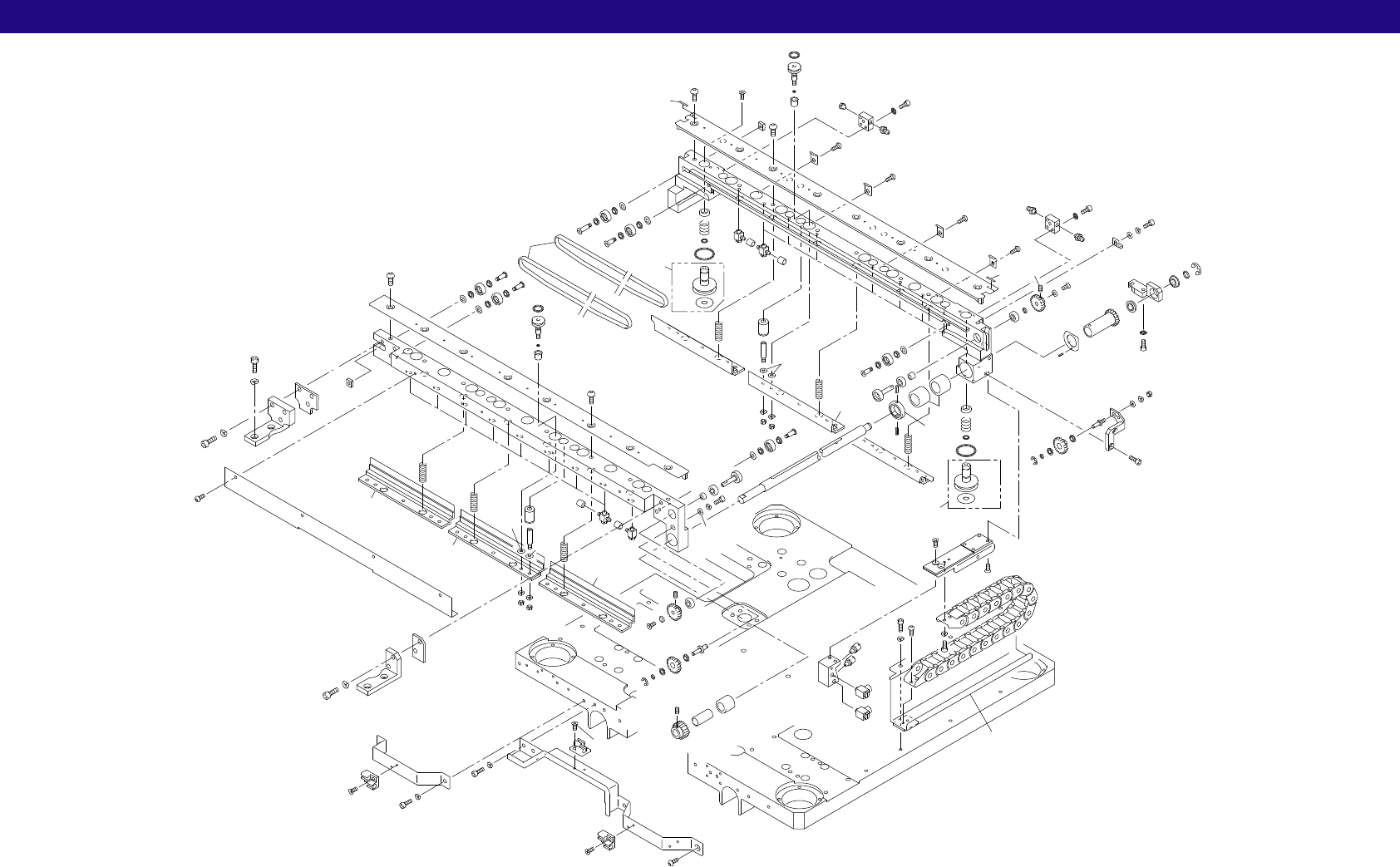

6.1.基板クランプ Board clamping unit(WSS)
CP-642ME PARTS LIST ver05
6-1
6.1.基板クランプ(WSS)
6.1.Board clamping unit(WSS)
77
146
77
61
73
145
147
129
126
124
137
23
119
91
127
140
138
126
22
97
98
144
100
148
26
100
148
126
136
25
126
136
100
148
161
118
159
103
104
84
29
85
102
30
47
70
149
2
79
3
52
76
59
76
55
47
10
8
126
124
5
83
47
31
103
104
84
29
85
162
52
76
59
76
50
55
88
75
87
75
6
71
65
78
21
78
60
74
131
136
79
58
64
82
119
117
33
130
127
141
89
89
32
132
139
122
44
122
44
44
122
122
44
89
90
132
139
7
81
11
86
121
56
118
121
28
27
32
152
152
102
162
80
68
66
63
117
53
77
1
77
61
73
79
62
82
119
117
13
12
125
133
47
10
83
5
126
124
8
8
47
47
10
10
46
122
56
15
14
125
133
121
9
45
55
76
52
76
59
86
11
81
7
121
157
57
79
51
130
127
140
54
52
76
55
76
59
55
75
87
75
88
158
160
x6
6.1.基板クランプ Board clamping unit(WSS)
CP-642ME PARTS LIST ver05
6-2
6.1.基板クランプ(WSS)
6.1.Board clamping unit(WSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WSS0220 1 PIN ﾋﾟﾝ
2WSS0231 1 COLLAR ｶﾗｰ
3WSS0241 1 PULLEY ﾌﾟｰﾘ
5WSS0383 12 SHAFT ｼｬﾌﾄ
6WSS0512 1 WASHER ﾜｯｼｬ
7WSS2592 17 BUSHING ﾌﾞｯｼｭ
8WSS2700 29 WASHER ﾜｯｼｬ
9WSS4031 1 GUIDE ｶﾞｲﾄﾞ
10WSS4100 4 PLATE, CLAMPING ﾌﾟﾚｰﾄ ｸﾗﾝﾌﾟ
11WSS4141 17 PISTON ﾋﾟｽﾄﾝ
12WSS4162 1 BKT BKT
13WSS4170 1 SPACER ｽﾍﾟｰｻ 注1. Note.1
14WSS4182 1 BKT BKT
15WSS4191 1 SPACER ｽﾍﾟｰｻ 注1. Note.2
21WSS5291 1 BKT BKT
22WSS4424 1 BKT BKT
23WSS4442 1 BKT BKT
25WSS4460 1 BKT BKT
26WSS4470 1 BKT BKT
27WSS4593 1 PLATE ﾌﾟﾚｰﾄ
28WSS4603 1 GUIDE ｶﾞｲﾄﾞ
29WSS4612 2 PISTON ﾋﾟｽﾄﾝ
30WSS4621 1 PLATE, CLAMPING ﾌﾟﾚｰﾄ ｸﾗﾝﾌﾟ
31WSS4630 1 PLATE, CLAMPING ﾌﾟﾚｰﾄ ｸﾗﾝﾌﾟ
32WSS4640 2 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
33WSS4650 1 RETAINER 押え
44WSS4800 4 RETAINER 押え
45WSS4811 1 PLATE ﾌﾟﾚｰﾄ
46WSS4820 1 COVER ｶﾊﾞｰ
47LXT0610 12 SPRING ｽﾌﾟﾘﾝｸﾞ
50MPT4440 1 PIN ﾋﾟﾝ
51MPT4461 1 PULLEY ﾌﾟｰﾘ
52MPT4481 6 PULLEY ﾌﾟｰﾘ
53MPT4491 1 GEAR ｷﾞﾔ
54WSS5280 1 SHAFT ｼｬﾌﾄ
55GXT2471 5 PIN ﾋﾟﾝ
56GXT2481 2 NUT ﾅｯﾄ
57GXT2531 1 COLLAR ｶﾗｰ
58GXT2542 1 COLLAR ｶﾗｰ
59GXT2550 6 COLLAR ｶﾗｰ
60GXT2562 1 COLLAR ｶﾗｰ
61GXT2571 2 COLLAR ｶﾗｰ
62GXT2581 1 GEAR ｷﾞﾔ
63GXT2591 1 GEAR ｷﾞﾔ
6.1.基板クランプ Board clamping unit(WSS)
CP-642ME PARTS LIST ver05
6-3
6.1.基板クランプ(WSS)
6.1.Board clamping unit(WSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
64GXT2611 1 GEAR ｷﾞﾔ
65GXT2623 1 GEAR ｷﾞﾔ
66GXT2741 1 BUSHING ﾌﾞｯｼｭ
68H4410A 1 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA12169UU
70H2047A 2
PIN, SPRING
ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 3ﾟX8
71H2039A 1
PIN, SPRING
ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 1.2ﾟX4
73S1021A 2
CIR-CLIP
ｻｰｸﾘｯﾌﾟ ST-EW-3
74S1024A 1
CIR-CLIP
ｻｰｸﾘｯﾌﾟ ST-EW-6
75S3084A 35
SLEEVE
ｽﾘｰﾌﾞ 40-13
76H4442A 12 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF850
77H4441A 4 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF840ZZ
78H4450A 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF1480ZZ
79H4098A 4 BEARING ﾍﾞｱﾘﾝｸﾞ R1350ZZ
80H4414A 2
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA1616Z
81H1160A 17
PACKING
ﾊﾟｯｷﾝ MY-3
82W10021 2 WASHER ﾜｯｼｬ TL-182No.1
83H44309 12
BEARING, BALL
ﾍﾞｱﾘﾝｸﾞ ﾎﾞｰﾙ LM6UP
84H1162T 2
PACKING
ﾊﾟｯｷﾝ MY-7
85H1167H 2
PACKING
ﾊﾟｯｷﾝ MY-24
86H1165A 17
PACKING
ﾊﾟｯｷﾝ MY-12
87T4023H 15
TEE
ﾃｨｰ UTF6
88A4089A 2 ELBOW, UNIVERSAL ｴﾙﾎﾞ ﾕﾆﾊﾞｰｻﾙ UEF6
89S2147A 3
JOINT
ｼﾞｮｲﾝﾄ BF6
90H3119A 1
PLUG
ﾌﾟﾗｸﾞ PF
91K4138B 1
FLEXIBLE TRACK
ｹｰﾌﾞﾙﾍﾞｱ 07.16-018-17-616P
97S2147H 2
JOINT
ｼﾞｮｲﾝﾄ BF6N
98A4089H 2 ELBOW, UNIVERSAL ｴﾙﾎﾞ ﾕﾆﾊﾞｰｻﾙ UEF6N
100H5056M 3
HOLDER
ﾎﾙﾀﾞ TM-06
102WSS5380 2 SHEET, RUBBER ｼｰﾄ ｺﾞﾑ
103YSS0540 2 WASHER ﾜｯｼｬ
104YSS0570 2 SPRING ｽﾌﾟﾘﾝｸﾞ
117N4018A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M3X3L
118K5359E
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿       
M4X8L
119K5357T
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿       
M3X8L
121K5261A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M5X10L
122K5255T
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M3X6L
124N1079A
NUT, HEX
ﾅｯﾄ 六角         
M4
125W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
126W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
127W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
129W1044A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-5
130W1042A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-3
131W1011A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L
132W1010A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L
