P-0183-001 - 第130页
MODEL TCM-X300S 0306-001 128 XY ࠹ࡉ࡞ㇱ XY T ABLE SECTION Fig. JD-2 X Y ࠪࡘ࠻ࡌ࡞࠻ XY Chute Belt 109 11 0 11 3 105 107 102 107 105 11 2 107 101 107 103 103 107 101 107 105 11 2 107 104 102 105 104 11 0 105 107 101 107 103 103…
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
127
JD-1
1 630 109 0313 CHUTE 1 814JD-010-001
2 630 109 0320 CHUTE 1 814JD-010-002
5 630 109 0337 PLATE 2 814JD-010-005
6 630 109 0344 PLATE 4 814JD-010-006
7 630 109 0351 PLATE 2 814JD-010-007
8 630 078 8143 SHAFT 16 814JD-010-008
9 630 070 1838 SEAL 16 814JD-010-009
10 630 070 1845 SEAL 16 814JD-010-010
11 630 003 3212 SEAL 16 814JD-010-011
12 630 002 3459 SPRING,COMP 16 5578 814JD-010-012
13 630 076 7759 GUIDE,LINEAR 16 814JD-010-013
14 630 109 6223 ASSY,SENSOR,PHOTO 2 BPH47,BPH49 814JD-010-014
16 630 109 2508 PIPE FITTINGS 8 814JD-010-016
17 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 36 814JD-010-017
18 630 076 8824 BOLT,HEX-SCT(BUTTON HEAD) 18 814JD-010-018
20 630 109 2515 PIPE FITTINGS 8 814JD-010-020
22 630 061 1434 SHEET 16 814JD-010-022
23 630 000 7794 BOLT,HEX-SCT 6 814JD-010-023
24 630 008 1053 SET SCREW 16 814JD-010-024
25 411 141 6705 WASHER SPR 5 8 814JD-010-025
26 411 141 4107 WASHER V 5X10X1 8 814JD-010-026
27 630 000 7787 BOLT,HEX-SCT 2 814JD-010-027
28 630 093 5738 BRACKET 1 814JD-010-028
29 411 140 6300 SCR PAN 2X8 4 814JD-010-029
30 411 141 2509 WASHER SPR 2 4 814JD-010-030
31 411 141 3605 WASHER V 2X5X0.3 4 814JD-010-031
32 630 093 5783 BRACKET 1 814JD-010-032
33 630 109 0368 CHUTE 1 814JD-010-033
34 630 109 0375 CHUTE 1 814JD-010-034
35 630 076 5670 BLOCK 4 814JD-010-035
36 630 076 6172 BLOCK 4 814JD-010-036
37 630 001 9780 SPRING,COMP 8 5075 814JD-010-037
MODEL TCM-X300S
0306-001
128
XY ࠹ࡉ࡞ㇱ XY TABLE SECTION

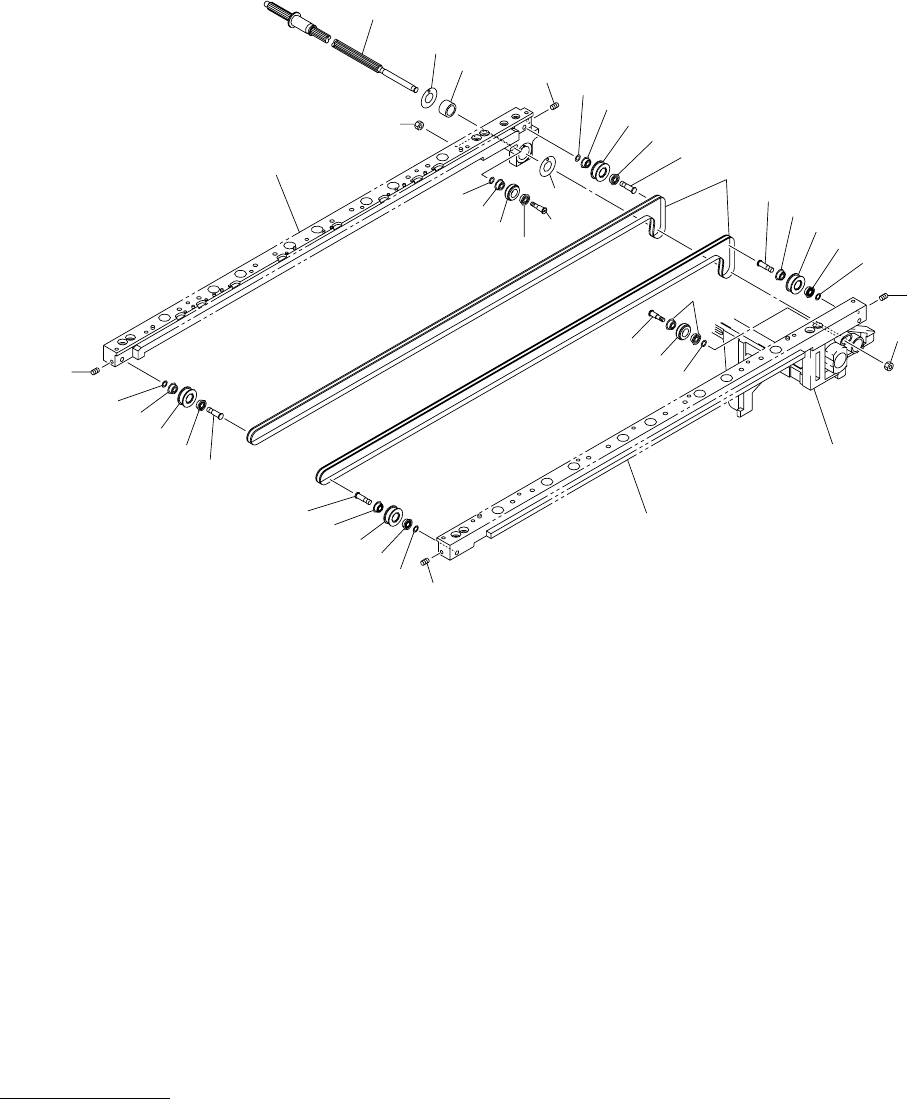

Fig. JD-2 XY ࠪࡘ࠻ࡌ࡞࠻ XY Chute Belt
109
110
113
105
107
102
107
105
112
107
101
107
103
103
107
101
107
105
112
107
104
102
105
104
110
105
107
101
107
103
103
107
101
107
105
112
113
106
112
108
See Fig.JD-1
Key No.33
See Fig.JD-1
Key No.1
See Fig.JD-4
Key No.306
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
129
JD-2
101 630 088 2285 PULLEY 4 814JD-010-101
102 630 093 5745 PULLEY 2 814JD-010-102
103 630 076 2792 ROD 4 814JD-010-103
104 630 076 2808 ROD 2 814JD-010-104
105 630 076 2815 COLLAR 6 814JD-010-105
106 630 120 1030 BELT,FLAT 2 814JD-010-106
107 630 001 1586 BEARING,RADIAL 12 LF-1050ZZ 814JD-010-107
108 630 076 8848 BEARING,RADIAL 1 TLA1210Z 814JD-010-108
109 630 108 4923 SHAFT,LINEAR 1 814JD-010-109
110 630 051 6166 MECH PARTS(DRYMET WASHER) 2 814JD-010-110
112 630 008 2296 SET SCREW 4 814JD-010-112
113 411 141 0307 NUT HEX 4 2 814JD-010-113
