P-0183-001 - 第185页
MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 183 KC-5 40 1 630 1 19 3427 BASE 2 8 1 4 K C - 0 1 0 - 4 0 1 40 2 630 001 1289 BEARING,RADIAL 4 60 01 Z Z 8 1 4 K C - 0 1 0 - 4 0 2 40 3 630 1 16…
MODEL TCM-X300S
0306-001
182
ࠞࡓ㧟ゲㇱ CAM SHAFT 3 AXIS SECTION

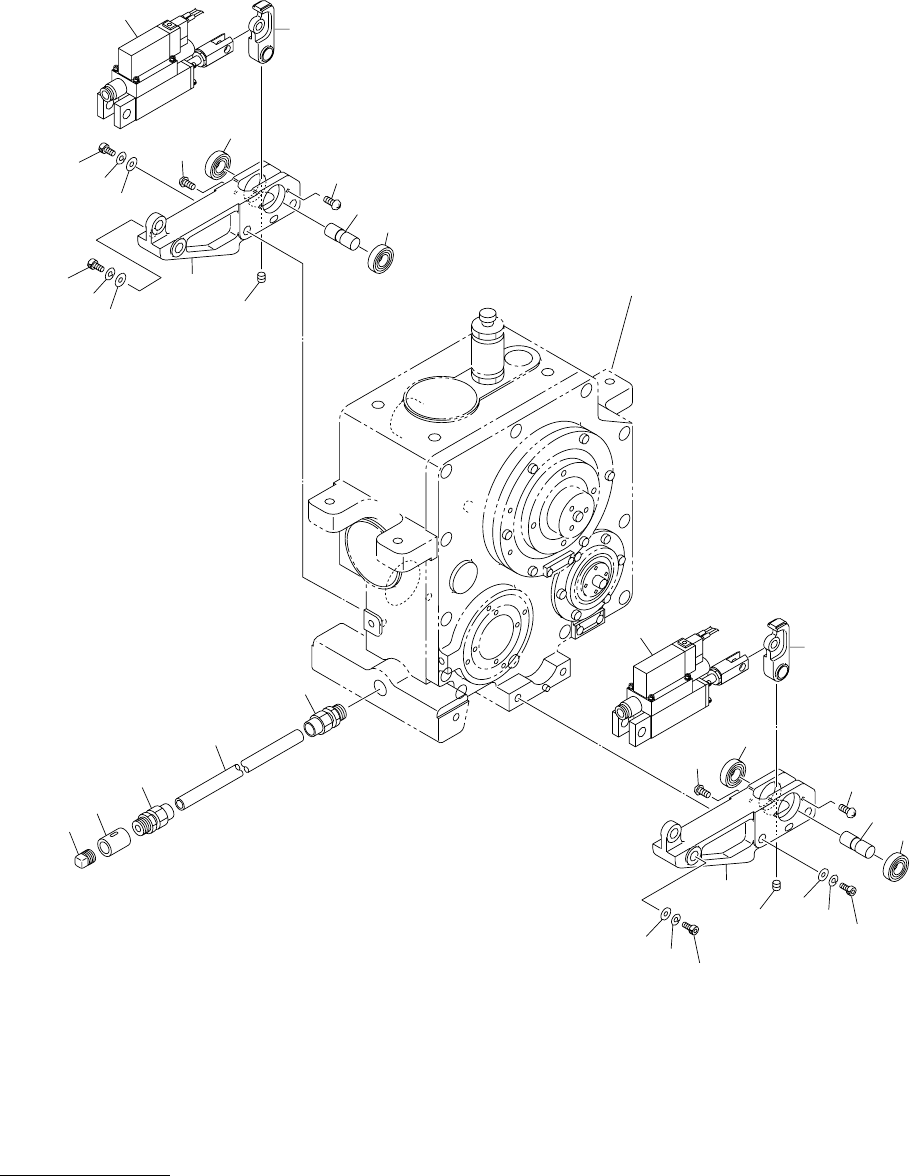

Fig. KC-5 ࡁ࠭࡞ಾᦧ߃ࠬ࠻࠶ࡄ Nozzle Changer Stopper
See Fig.KC-1
Key No.1
406
407
408
409
410
414
405
404
402
411
401
412
411
403
402
415
413
418
419
417
414
415
413
418
419
417
416
404
402
411
401
412
411
403
402
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
183
KC-5
401 630 119 3427 BASE 2 814KC-010-401
402 630 001 1289 BEARING,RADIAL 4 6001ZZ 814KC-010-402
403 630 116 3130 SHAFT 2 814KC-010-403
404 630 114 9882 LEVER 2 814KC-010-404
405 630 100 7205 CYLINDER 1 YSV17 814KC-010-405
406 630 004 0845 PIPE FITTINGS 1 814KC-010-406
407 630 004 1279 TUBE 1 814KC-010-407
408 630 003 7159 PIPE FITTINGS 1 814KC-010-408
409 630 003 7937 PIPE FITTINGS 1 814KC-010-409
410 630 003 8125 PIPE FITTINGS 1 814KC-010-410
411 411 051 1708 SCR TRS 4X6 8 814KC-010-411
412 630 000 8944 SET SCREW 2 814KC-010-412
413 630 000 8067 BOLT,HEX-SCT 4 814KC-010-413
414 411 141 3100 WASHER SPR 8 4 814KC-010-414
415 411 141 6101 WASHER F 8X15.5X1.6 4 814KC-010-415
416 630 100 7212 CYLINDER 1 YSV18 814KC-010-416
417 630 119 3571 BOLT 2 814KC-010-417
418 411 141 3209 WASHER SPR 10 2 814KC-010-418
419 411 141 6309 WASHER F 10X18X2 2 814KC-010-419
