P-0183-001 - 第191页
MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 189 L-3 20 1 630 093 6377 ASSY ,LIGHTING UNIT 1 8 1 4 L - - 010-201 20 1 -10 630 005 4286 L A M P 1 20 2 630 1 16 4465 MECH P ART S(R U BBER) 1 8…
MODEL TCM-X300S
0306-001
188
ᧄㇱ MAIN BODY SECTION

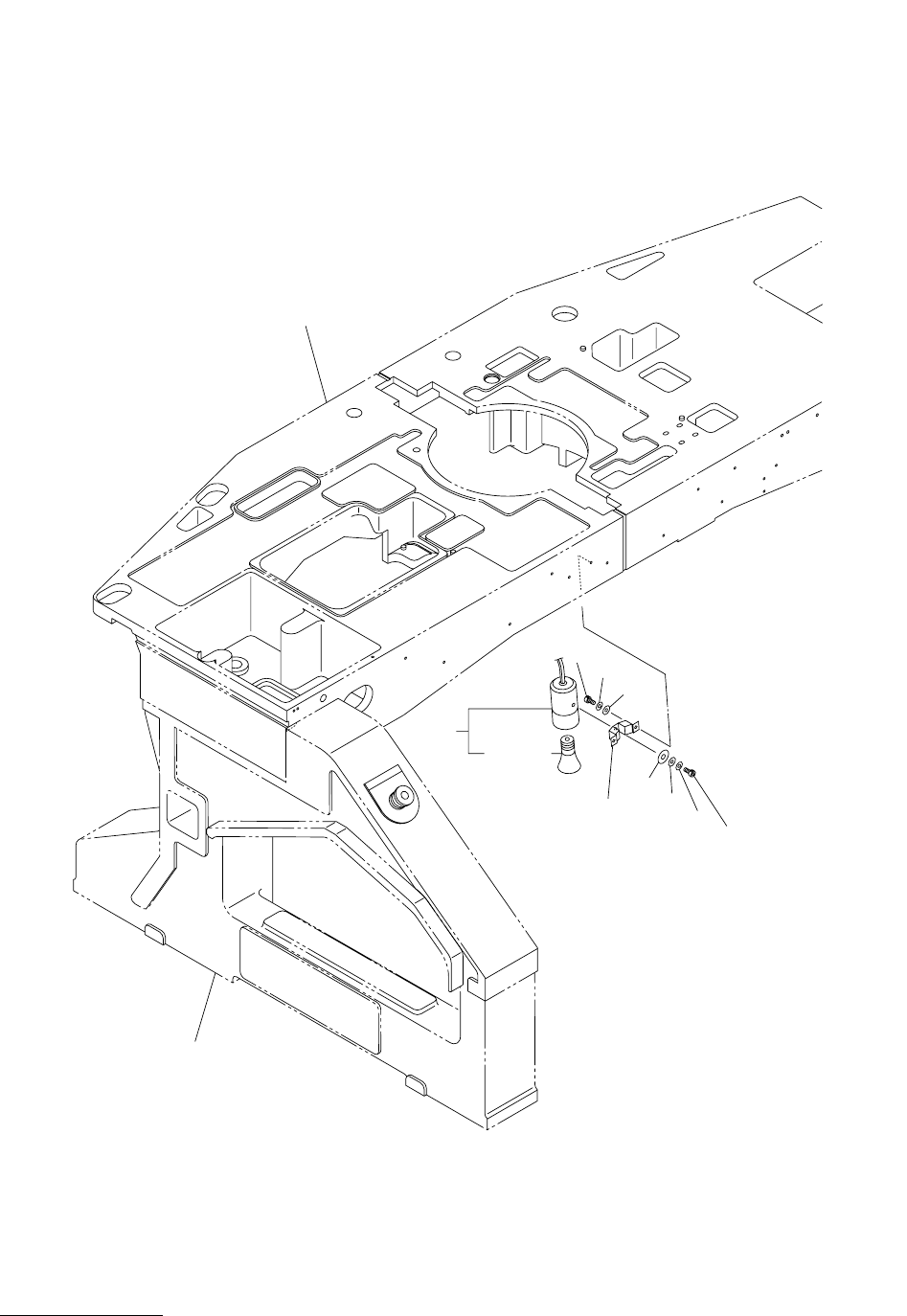

Fig. L-3 ࠬࡐ࠶࠻ࠗ࠻ Spotlight
Fig.L-3
4797L-002
TCM-X300-002
209
208
207
See Fig.L-1
Key No.12
See Fig.L-1
Key No.10
204
203
202
201
201-10
205
206
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
189
L-3
201 630 093 6377 ASSY,LIGHTING UNIT 1 814L--010-201
201 -10 630 005 4286 LAMP 1
202 630 116 4465 MECH PARTS(RUBBER) 1 814L--010-202
203 411 141 4107 WASHER V 5X10X1 1 814L--010-203
204 411 141 4008 WASHER V 4X9X0.8 1 814L--010-204
205 411 141 2905 WASHER SPR 4 1 814L--010-205
206 630 000 7633 BOLT,HEX-SCT 1 814L--010-206
207 411 141 4107 WASHER V 5X10X1 2 814L--010-207
208 411 141 6705 WASHER SPR 5 2 814L--010-208
209 630 000 7756 BOLT,HEX-SCT 2 814L--010-209
MODEL TCM-X300S
0306-001
190
ᧄㇱ MAIN BODY SECTION

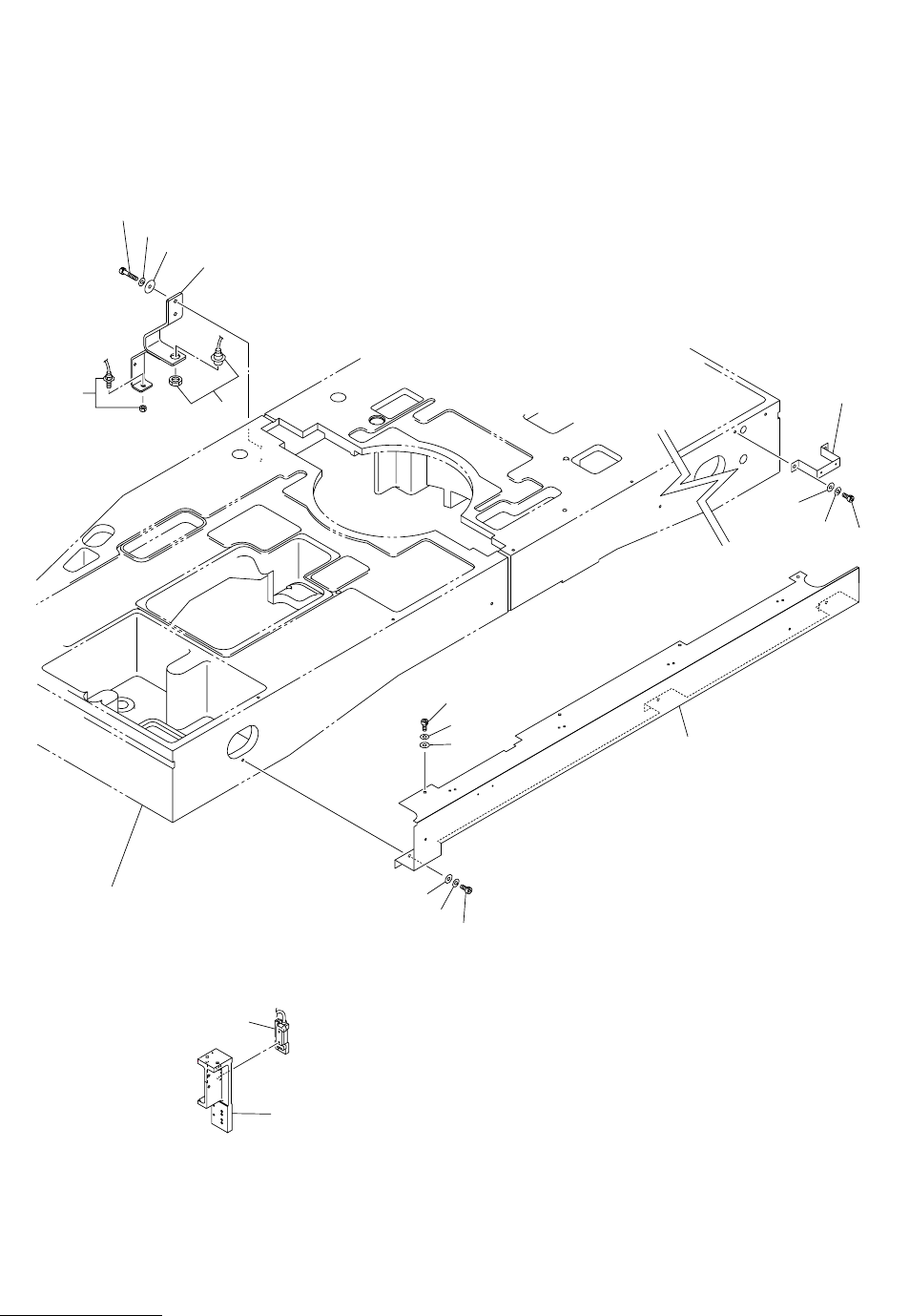

Fig. L-4 ࠹ࡊࠛࡦ࠼ᬌㇱ Tape End Detector
304
303
302
301
341
342
343
344
333
334
See Fig.L-1
Key No.12
See Fig.E-2
Key No.123
335
331
333
334
335
309
310
309
Fig.L-4
4797L-002
TCM-X300-002
TCM-X200-003
4797A-003
