MODEL TCM-X300S 0306-001 196 ࠳ࠬ࠻ࡏ࠶ࠢࠬㇱ DUST BOX SECTION Fig. LB-2 ࠳ࠬ࠻ࡏ࠶ࠢࠬࠞࡃ Dust Box Cover 131 131 131 132 131 11 2 111 11 0 107 109 106 128 See Fig.LB-1 Key No.1 See Fig.LB-1 Key No.42 127 126 122 128 127 126 121 123 12…
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
195
LB-1
1 630 118 3367 FRAME 1 814LB-010-001
2 630 116 0078 CASTER 4 814LB-010-002
4 411 141 2905 WASHER SPR 4 12 814LB-010-004
5 630 000 7619 BOLT,HEX-SCT 12 814LB-010-005
7 630 003 6206 MECH PARTS(LATEX SPONGE) 1 814LB-010-007
8 630 003 6718 AIR LINE EQPT 1 814LB-010-008
9 630 058 0259 BRACKET 1 814LB-010-009
11 411 141 3902 WASHER V 3X7X0.5 2 814LB-010-011
12 411 141 2806 WASHER SPR 3 2 814LB-010-012
13 630 000 7510 BOLT,HEX-SCT 2 814LB-010-013
14 630 003 6220 MECH PARTS(SNAP LOCKS) 1 814LB-010-014
15 411 002 2600 SCR FLT 3X6 2 814LB-010-015
16 411 141 4107 WASHER V 5X10X1 2 814LB-010-016
21 630 117 8226 SHEET 1 814LB-010-021
22 630 059 7189 PLATE 1 814LB-010-022
23 411 141 4107 WASHER V 5X10X1 6 814LB-010-023
24 411 141 6705 WASHER SPR 5 6 814LB-010-024
25 630 000 7763 BOLT,HEX-SCT 6 814LB-010-025
26 630 003 6503 MECH PARTS(CONTAINER) 1 814LB-010-026
27 630 097 5451 COVER 1 814LB-010-027
29 630 001 0220 WASHER 4 814LB-010-029
30 411 141 6705 WASHER SPR 5 4 814LB-010-030
31 630 000 7756 BOLT,HEX-SCT 4 814LB-010-031
32 630 003 6244 MECH PARTS(SNAP FASTENER) 1 814LB-010-032
33 411 002 2600 SCR FLT 3X6 2 814LB-010-033
34 411 108 7103 SCR FLT 3X10 2 814LB-010-034
35 411 141 3902 WASHER V 3X7X0.5 4 814LB-010-035
36 411 141 2806 WASHER SPR 3 4 814LB-010-036
37 411 140 9905 NUT HEX 3 4 814LB-010-037
41 630 087 6918 MECH PARTS(RUBBER PLATE) 2 814LB-010-041
42 630 116 3116 MOTOR,AC 1 M2,#VFC-408AN 814LB-010-042
43 411 141 4503 WASHER V 8X17X1.6 4 814LB-010-043
45 630 000 8043 BOLT,HEX-SCT 4 814LB-010-045
46 411 141 1007 NUT HEX 8 4 814LB-010-046
MODEL TCM-X300S
0306-001
196

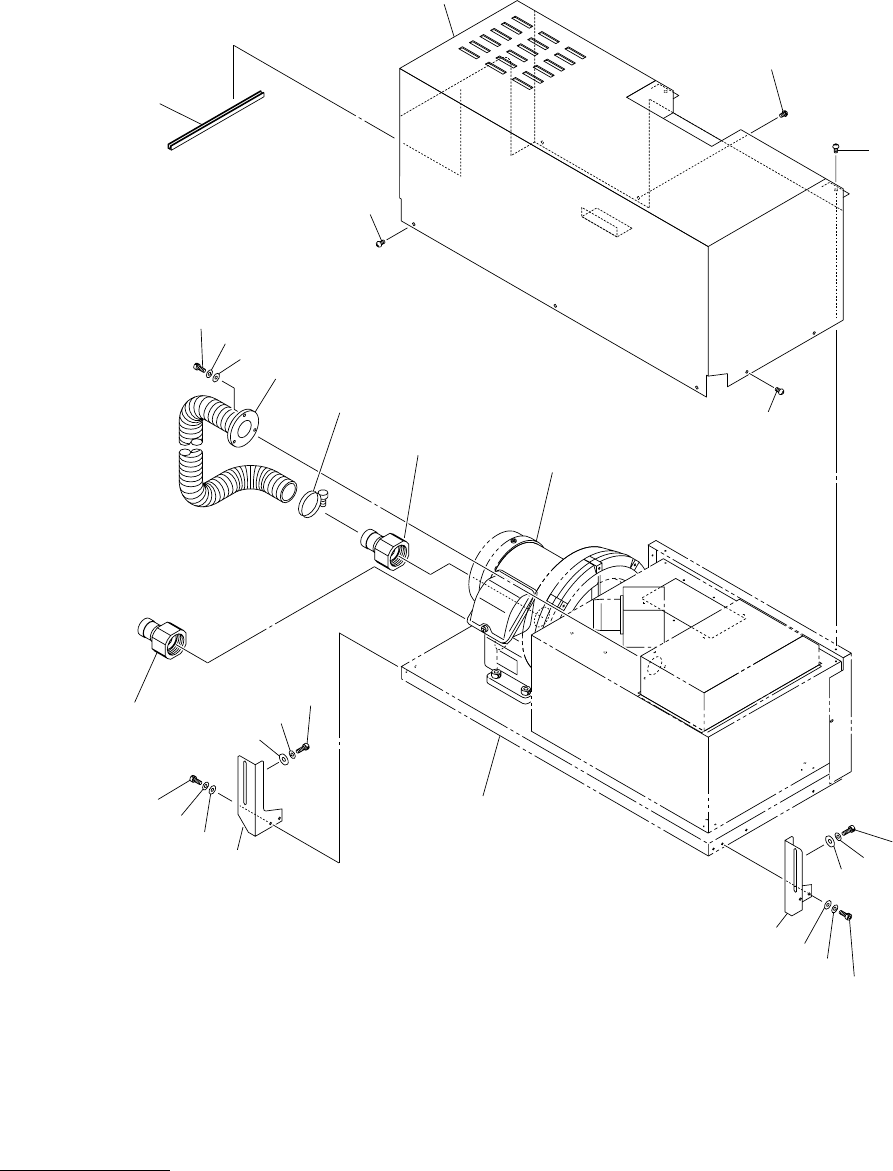

࠳ࠬ࠻ࡏ࠶ࠢࠬㇱ DUST BOX SECTION
Fig. LB-2 ࠳ࠬ࠻ࡏ࠶ࠢࠬࠞࡃ Dust Box Cover
131
131
131
132
131
112
111
110
107
109
106
128
See Fig.LB-1
Key No.1
See Fig.LB-1
Key No.42
127
126
122
128
127
126
121
123
124
125
123
124
125
130
106
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
197
LB-2
106 630 116 9606 PIPE FITTINGS 2 814LB-010-106
107 630 118 4074 TUBE 1 814LB-010-107
109 630 009 3544 PIPE FITTINGS(BAND) 1 814LB-010-109
110 411 141 4107 WASHER V 5X10X1 3 814LB-010-110
111 411 141 6705 WASHER SPR 5 3 814LB-010-111
112 630 000 7763 BOLT,HEX-SCT 3 814LB-010-112
121 630 110 5260 BRACKET 1 814LB-010-121
122 630 110 5277 BRACKET 1 814LB-010-122
123 411 141 4107 WASHER V 5X10X1 4 814LB-010-123
124 411 141 6705 WASHER SPR 5 4 814LB-010-124
125 630 000 7763 BOLT,HEX-SCT 4 814LB-010-125
126 630 001 0220 WASHER 4 814LB-010-126
127 411 141 6705 WASHER SPR 5 4 814LB-010-127
128 630 000 7770 BOLT,HEX-SCT 4 814LB-010-128
130 630 110 5291 COVER 1 814LB-010-130
131 411 140 8007 SCR TRS 5X6 8 814LB-010-131
132 630 087 1203 ACCESSORY,WIRING 1 814LB-010-132
