MODEL TCM-X300S 0306-001 220 ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃㇱ FEEDER CARRIAGE COVER SECTION Fig. MB-3 ࡈࠖ࠳ No. ࡞ Feeder No. Rail 236 204 237 235 232 235 232 231 235 236 231 235 236 231 235 237 237 235 231 201 202 232 235 237 219 216 224 …
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
219
MB-2
107 630 089 0907 MOTOR,AC 2 MFAN11,MFAN12,MRS16-TUL
814MB-010-107
108 630 068 4292 ACCESSORY,MOT-M 2 814MB-010-108
110 630 076 4932 ACCESSORY,MOT-M 2 814MB-010-110
130 411 140 6508 SCR PAN 5X20 8 814MB-010-130
131 630 000 7763 BOLT,HEX-SCT 8 814MB-010-131
132 411 088 1702 WASHER V 5X10X1 32 814MB-010-132
133 411 008 2109 WASHER SPR 5 16 814MB-010-133
134 411 056 0508 NUT HEX 5 16 814MB-010-134
135 411 141 0505 NUT HEX 5 8 814MB-010-135
136 411 141 4107 WASHER V 5X10X1 8 814MB-010-136
137 411 141 6705 WASHER SPR 5 8 814MB-010-137
138 630 107 3101 COVER 2 814MB-010-138
MODEL TCM-X300S
0306-001
220

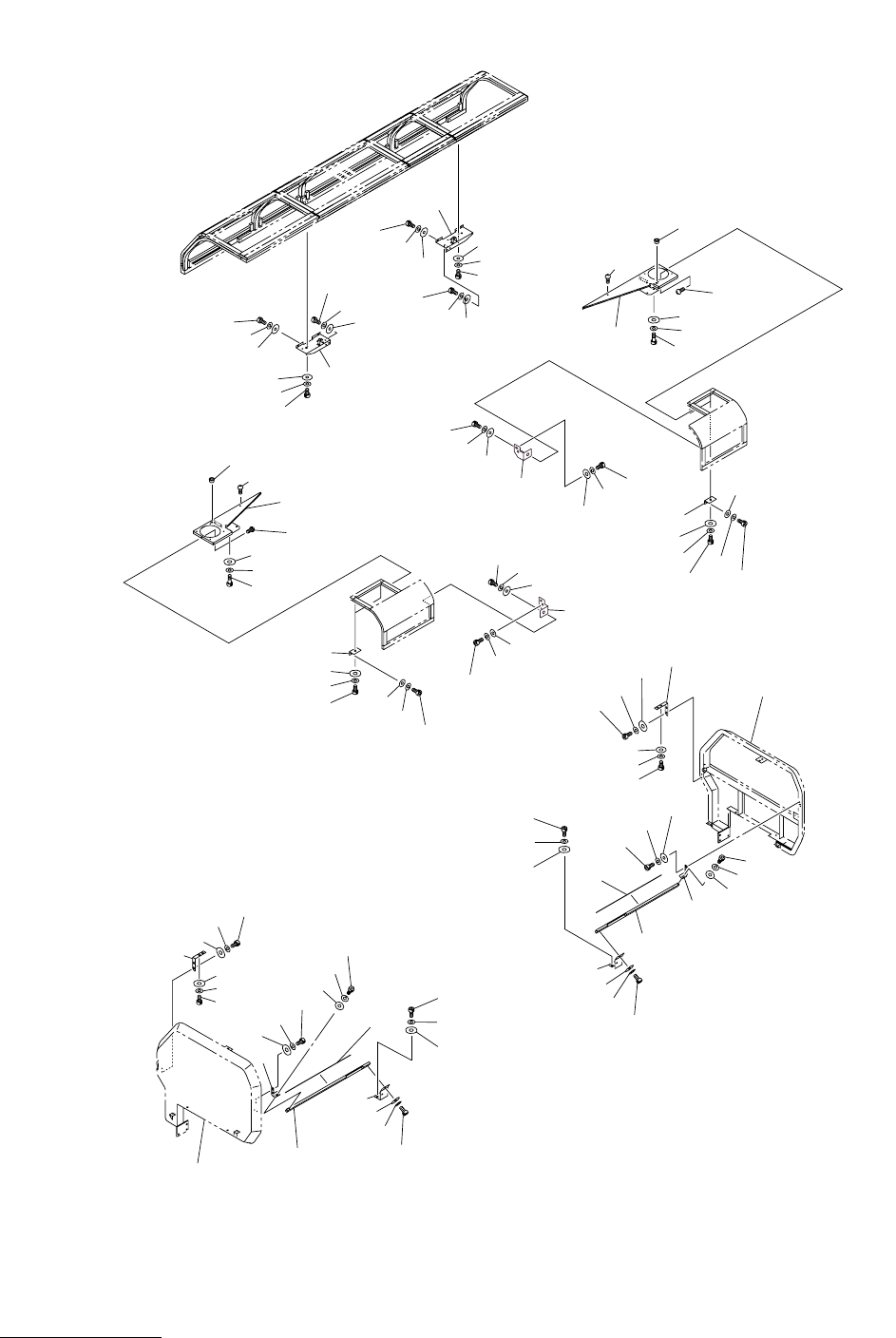

ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃㇱ FEEDER CARRIAGE COVER SECTION
Fig. MB-3 ࡈࠖ࠳ No. ࡞ Feeder No. Rail
236
204
237
235
232
235
232
231
235
236
231
235
236
231
235
237
237
235
231
201
202
232
235
237
219
216
224
236
235
232
225
209
236
235
232
See Fig.MB-1
Key No.1
See Fig.MB-1
Key No.2
236
235
232
213
236
235
232
236
235
232
232
235
237
232
209
235
236
237
204
236
235
232
235
232
232
235
236
214
215
220
236
235
232
236
235
232
231
235
236
231
235
236
236
206
235
232
236
205
235
232
231
235
236
231
235
236
236
235
232
236
235
232
236
235
232
239
221
239
230
230
227
227
222
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
221
MB-3
201 630 117 1890 BRACKET 1 814MB-010-201
202 630 117 1883 BRACKET 1 814MB-010-202
204 630 095 8850 BRACKET 4 814MB-010-204
205 630 118 6696 BRACKET(R) 1 814MB-010-205
206 630 118 6702 BRACKET(L) 1 814MB-010-206
209 630 089 2284 NAME PLATE,INDEX 2 814MB-010-209
213 630 097 3747 SUPPORT 1 814MB-010-213
214 630 097 3754 SUPPORT 1 814MB-010-214
215 630 118 8119 STAY 1 814MB-010-215
216 630 118 8133 STAY 1 814MB-010-216
219 630 119 7067 BRACKET 1 814MB-010-219
220 630 118 8539 BRACKET 1 814MB-010-220
221 630 117 1715 COVER(R) 1 814MB-010-221
222 630 117 1692 COVER(L) 1 814MB-010-222
224 630 119 7081 STAY 1 814MB-010-224
225 630 119 7098 STAY 1 814MB-010-225
227 630 107 9318 ACCESSORY,WIRING 2 814MB-010-227
230 411 113 9109 SCR TRS 5X10 2 814MB-010-230
231 630 000 7770 BOLT,HEX-SCT 8 814MB-010-231
232 630 000 7763 BOLT,HEX-SCT 48 814MB-010-232
235 411 141 6705 WASHER SPR 5 56 814MB-010-235
236 630 001 0220 WASHER 38 814MB-010-236
237 411 141 4107 WASHER V 5X10X1 18 814MB-010-237
239 411 140 8007 SCR TRS 5X6 2 814MB-010-239
