P-0183-001 - 第228页
MODEL TCM-X300S 0306-001 226 ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃ Feeder Carriage Cover Fig. MC-2 ᬺࠛࠕోᚺ Work Area Safety Door 104 111 101 124 11 8 141 11 6 11 4 123 11 2 126 131 132 135 126 127 136 128 143 11 7 11 5 11 6 11 8 122 144 141 11 …
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
225
MB-7
601 630 123 8548 MECH PARTS(FEEDER COVER) 1 814MB-010-601
MODEL TCM-X300S
0306-001
226

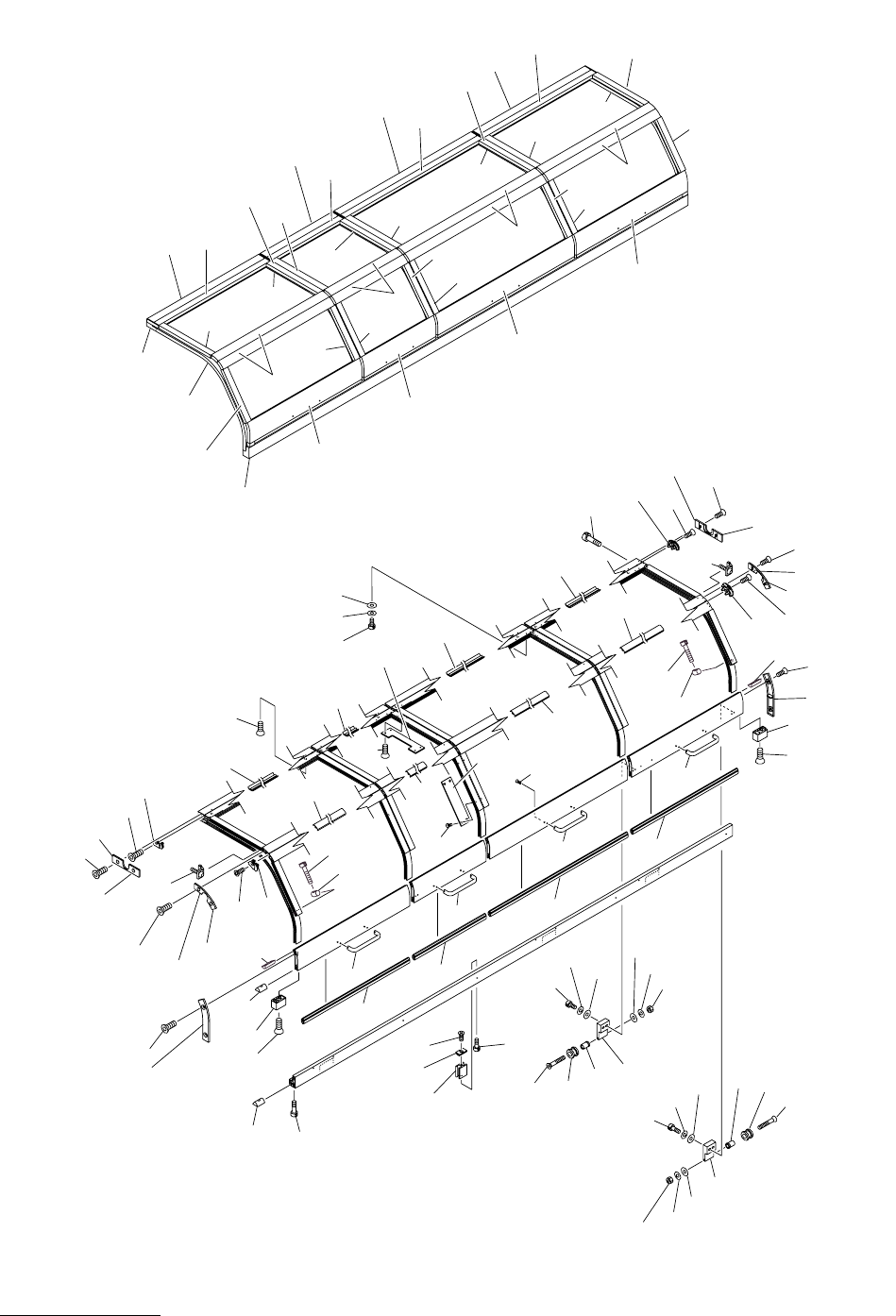

ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃ Feeder Carriage Cover
Fig. MC-2 ᬺࠛࠕోᚺ Work Area Safety Door
104
111
101
124
118
141
116
114
123
112
126
131
132
135
126
127
136
128
143
117
115
116
118
122
144
141
112
129
137
126
126
111
138
131
126
132
125
116
160
191
161
162
189
184
193
191
168
165
184
191
169
165
193
153
154
151
153
180
180
180
180
146
193
145
160
189
181
182
.
191
163
164
148
197
198
184
157
150
146
160
164
163
191
189
185
172
160
191
161
189
191
147
158
192
196
197
199
198
175
171
194
184
177
198
149
191
145
162
177
194
171
175
197
198
199
198
184
196
156
191
166
167
174
181
186
173
174
186
173
167
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
227
MC-2
101 630 119 1508 MECH PARTS(FRAME) 1
104 630 119 1515 MECH PARTS(RAIL) 1
111 630 106 8145 MECH PARTS(GUIDE) 2
112 630 119 1522 MECH PARTS(GUIDE) 2
114 630 106 8176 MECH PARTS(FRAME) 1
115 630 106 8190 MECH PARTS(FRAME) 1
116 630 106 8206 MECH PARTS(FRAME) 3
117 630 106 8213 MECH PARTS(FRAME) 1
118 630 106 8220 MECH PARTS(FRAME) 2
122 630 123 7992 MECH PARTS(FRAME) 1
123 630 123 8005 MECH PARTS(FRAME) 1
124 630 123 8012 MECH PARTS(FRAME) 1
125 630 123 8296 MECH PARTS(FRAME) 1
126 630 106 8251 MECH PARTS(FRAME) 5
127 630 119 3724 MECH PARTS(FRAME) 1
128 630 119 3731 MECH PARTS(FRAME) 1
129 630 106 8282 MECH PARTS(FRAME) 1
131 630 103 5260 MECH PARTS(FRAME)E) 2
132 630 106 8299 MECH PARTS(FRAME) 2
135 630 103 5307 MECH PARTS(FRAME) 1
136 630 106 8312 MECH PARTS(FRAME) 1
137 630 103 5321 MECH PARTS(FRAME) 1
138 630 106 8329 MECH PARTS(FRAME) 1
141 630 106 8350 MECH PARTS(FRAME)E 4
143 630 106 8374 MECH PARTS(FRAME) 2
144 630 106 8381 MECH PARTS(FRAME) 2
145 630 105 0928 MECH PARTS(FRAME) 2
146 630 105 0973 MECH PARTS(FRAME) 2
147 630 105 0942 MECH PARTS(FRAME) 1
148 630 105 0997 MECH PARTS(FRAME) 1
149 630 105 0959 MECH PARTS(FRAME) 1
150 630 105 0966 MECH PARTS(CAP) 1
151 630 123 8050 MECH PARTS(RUBBER) 1
153 630 123 8074 MECH PARTS(RUBBER) 2
154 630 123 8081 MECH PARTS(RUBBER) 1
156 630 123 8098 MECH PARTS(FRAME) 1
157 630 119 3748 MECH PARTS(FRAME) 1
158 630 103 5413 MECH PARTS(BRACKET) 1
160 630 110 7974 MECH PARTS(CAP) 16
161 630 103 5383 MECH PARTS(CAP) 8
162 630 103 5390 MECH PARTS(CAP) 8
163 630 103 4669 MECH PARTS(CAP) 8
164 630 103 4676 MECH PARTS(CAP) 8
165 630 123 8104 MECH PARTS(STOPPER) 8
166 630 098 1926 MECH PARTS(CAP) 1
167 630 106 8398 MECH PARTS(JOINT) 24
168 630 123 8036 MECH PARTS(CAP) 4
169 630 123 8043 MECH PARTS(CAP) 4
171 630 117 6192 MECH PARTS(ROLLAR) 6
173 630 098 1988 MECH PARTS(NUT) 8
