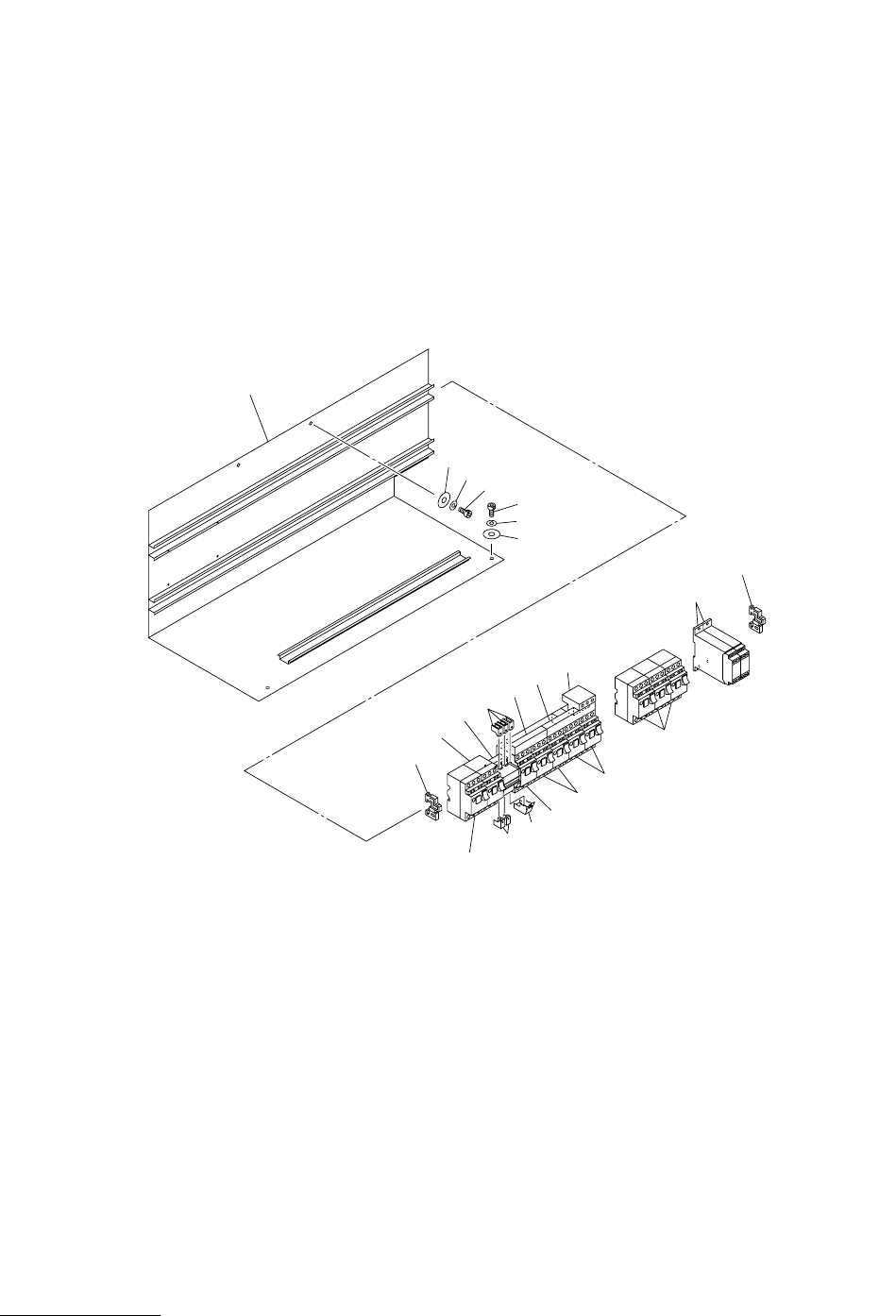

MODEL TCM-X300S 0306-001 240 200V 㔚Ḯㇱ㧝 200V POWER SUPPL Y SECTION 1 F i g . R C - 1 200V 㔚Ḯ㧝 200V Power Supply 1 99 98 97 97 98 99 61 55 60 55 58 53 59 65 54 62 52 56 66 65 51 57 67
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
239
RA-1
51 630 086 3857 BREAKER 1 Q200 814RA-010-051
52 630 094 1500 CIRCUIT PROTECTOR 1 Q204 814RA-010-052
53 630 083 5441 HANDLE 1 814RA-010-053
54 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 814RA-010-054
55 630 092 2875 TERMINAL 2 814RA-010-055
56 630 071 3343 COVER 5 814RA-010-056
57 630 071 3350 COVER 1 814RA-010-057
58 630 115 5760 COVER 1 814RA-010-058
59 630 115 4480 BRACKET 1 814RA-010-059
60 630 115 5777 PANEL 1 814RA-010-060
61 630 092 2844 TERMINAL 6 814RA-010-061
62 630 092 2851 ACCESSORY,WIRING 1 814RA-010-062
63 630 092 2868 ACCESSORY,WIRING 3 814RA-010-063
64 630 089 5377 ACCESSORY,WIRING 1 814RA-010-064
65 630 091 1749 BRACKET,WIRING 2 814RA-010-065
66 630 093 0764 RAIL,WIRING 1 814RA-010-066
67 630 115 5883 BRACKET 1 814RA-010-067
68 630 051 1512 ACCESSORY,WIRING 1 814RA-010-068
69 630 048 3833 MECH PARTS(MOUNTING BASES 1 814RA-010-069
83 411 113 7501 SCR TRS 4X10 1 814RA-010-083
84 411 140 8007 SCR TRS 5X6 2 814RA-010-084
85 630 000 7626 BOLT,HEX-SCT 6 814RA-010-085
86 411 141 2905 WASHER SPR 4 6 814RA-010-086
87 411 141 4008 WASHER V 4X9X0.8 2 814RA-010-087
88 630 001 0213 WASHER 4 814RA-010-088
89 411 042 3001 SCR PAN 4X10 2 814RA-010-089
90 411 043 5004 SCR PAN 4X8 5 814RA-010-090
91 411 008 1706 WASHER SPR 4 7 814RA-010-091
92 411 119 2104 WASHER V 4X9X0.8 7 814RA-010-092
93 411 174 6604 SCR PAN+SW+W 5X10 2 814RA-010-093
94 630 000 7510 BOLT,HEX-SCT 2 814RA-010-094
95 411 141 2806 WASHER SPR 3 2 814RA-010-095
96 630 001 0206 WASHER 2 814RA-010-096
97 630 000 7756 BOLT,HEX-SCT 4 814RA-010-097
98 411 141 6705 WASHER SPR 5 4 814RA-010-098
99 630 001 0220 WASHER 4 814RA-010-099
MODEL TCM-X300S
0306-001
240
200V 㔚Ḯㇱ㧝 200V POWER SUPPLY SECTION 1
Fig. RC-1 200V 㔚Ḯ㧝 200V Power Supply 1
99
98
97
97
98
99
61
55
60
55
58
53
59
65
54
62
52
56
66
65
51
57
67
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
241
RC-1
51 630 106 7209 CIRCUIT PROTECTOR 2 Q211,Q214 814RC-010-051
52 630 106 7186 CIRCUIT PROTECTOR 1 Q207 814RC-010-052
53 630 085 8792 ACCESSORY,WIRING 1 814RC-010-053
54 630 120 6806 CIRCUIT PROTECTOR 1 Q203 814RC-010-054
55 630 091 1749 BRACKET,WIRING 2 814RC-010-055
56 630 106 7216 CIRCUIT PROTECTOR 1 Q210 814RC-010-056
57 630 106 7193 CIRCUIT PROTECTOR 2 Q215,Q216 814RC-010-057
58 630 106 7186 CIRCUIT PROTECTOR 3 Q217,Q218,Q219 814RC-010-058
59 630 092 8648 WIRE PARTS 1 814RC-010-059
60 630 116 8753 RELAY 2 K11,K14 814RC-010-060
61 630 115 3711 PANEL 1 814RC-010-061
62 630 106 7179 CIRCUIT PROTECTOR 1 Q202 814RC-010-062
65 630 071 3343 COVER 5 814RC-010-065
66 630 071 3350 COVER 1 814RC-010-066
67 630 092 8631 WIRE PARTS 1 814RC-010-067
97 630 000 7756 BOLT,HEX-SCT 4 814RC-010-097
98 411 141 6705 WASHER SPR 5 4 814RC-010-098
99 630 001 0220 WASHER 4 814RC-010-099
