MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 279 RL-6 55 1 630 1 15 8839 PL A T E 1 814RL-010-551 55 2 630 109 2065 BR AC K ET 1 814RL-010-552 59 4 630 000 7619 BO L T ,HEX-SCT 4 814RL-010-5…
MODEL TCM-X300S
0306-001
278
ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS PARTS-1
Fig. RL-6
࠺ࠖࠬࡊࠗࠦࡦ࠻ࡠขઃ
Display Controller Mounting
See Fig RL-2
Key No.157
594
595
596
598
599
597
552
551
594
595
596
594
595
596
See Fig.MA-10
Key No.902-05
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
279
RL-6
551 630 115 8839 PLATE 1 814RL-010-551
552 630 109 2065 BRACKET 1 814RL-010-552
594 630 000 7619 BOLT,HEX-SCT 4 814RL-010-594
595 411 141 2905 WASHER SPR 4 4 814RL-010-595
596 630 001 0213 WASHER 4 814RL-010-596
597 630 000 7756 BOLT,HEX-SCT 4 814RL-010-597
598 411 141 6705 WASHER SPR 5 4 814RL-010-598
599 630 001 0220 WASHER 4 814RL-010-599
MODEL TCM-X300S
0306-001
280

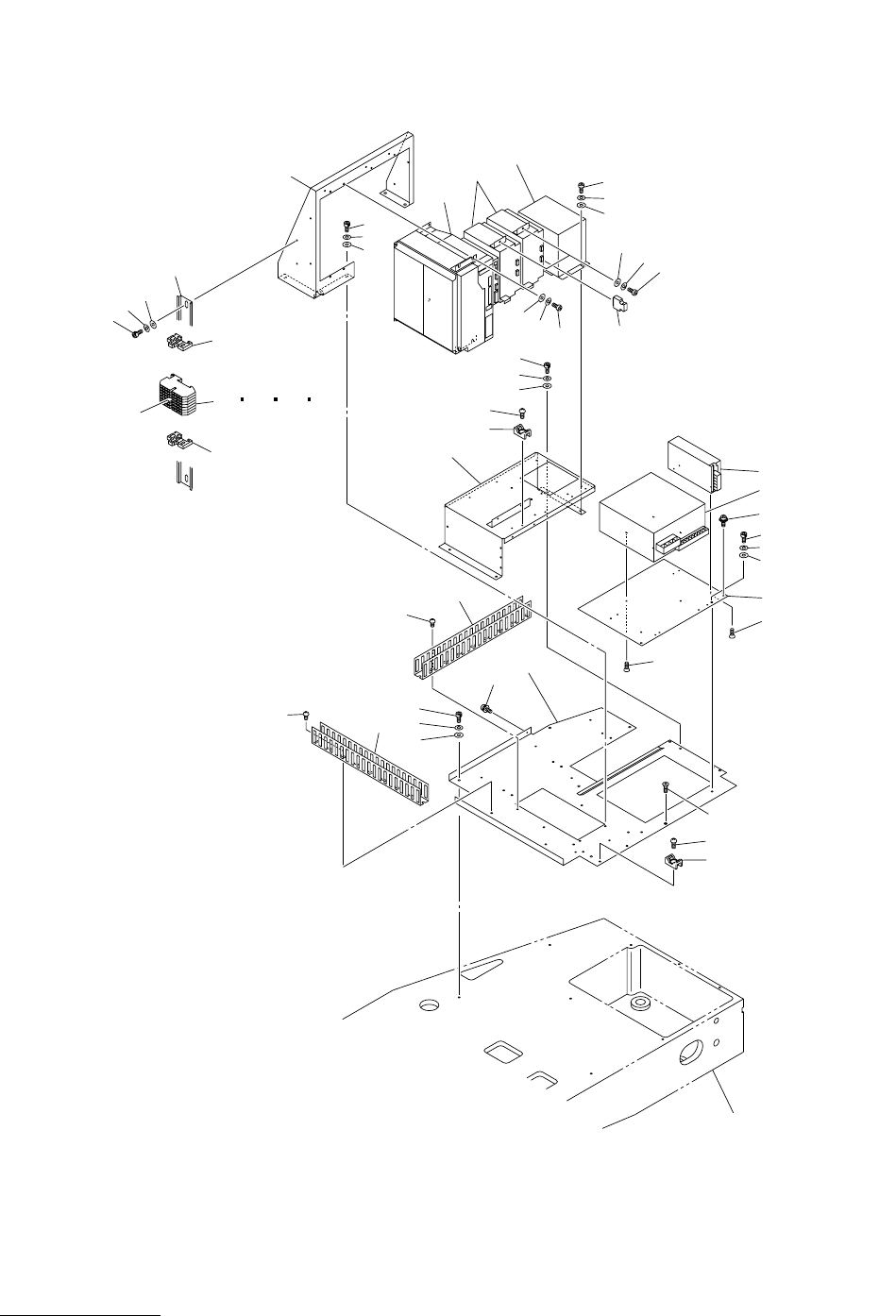

ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2
Fig. RM-1
Hޔ
CZޔMZ ゲ
ࡕ࠲࠼ࠗࡃ
H Axis Motor Driver
67
72
86
See Fig.L-1
Key No.12
86
54
92
91
90
70
82
96
98
93
52
51
99
97
98
99
95
98
99
69
96
98
99
87
88
89
87
56
88
89
57
55
87
88
89
63
61
65
86
66
85
84
61
60 6259 64
66
81
83
71
94
