MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 293 SB-4 35 1 630 1 19 7852 ASSY ,CORD(X300S-MOT F1) 1 -XC N1 05 814SB-010-351 35 4 630 1 19 7869 ASSY ,CORD(X300S-MOT F2) 1 -XCN 1 17 814SB-010-…
MODEL TCM-X300S
0306-001
292

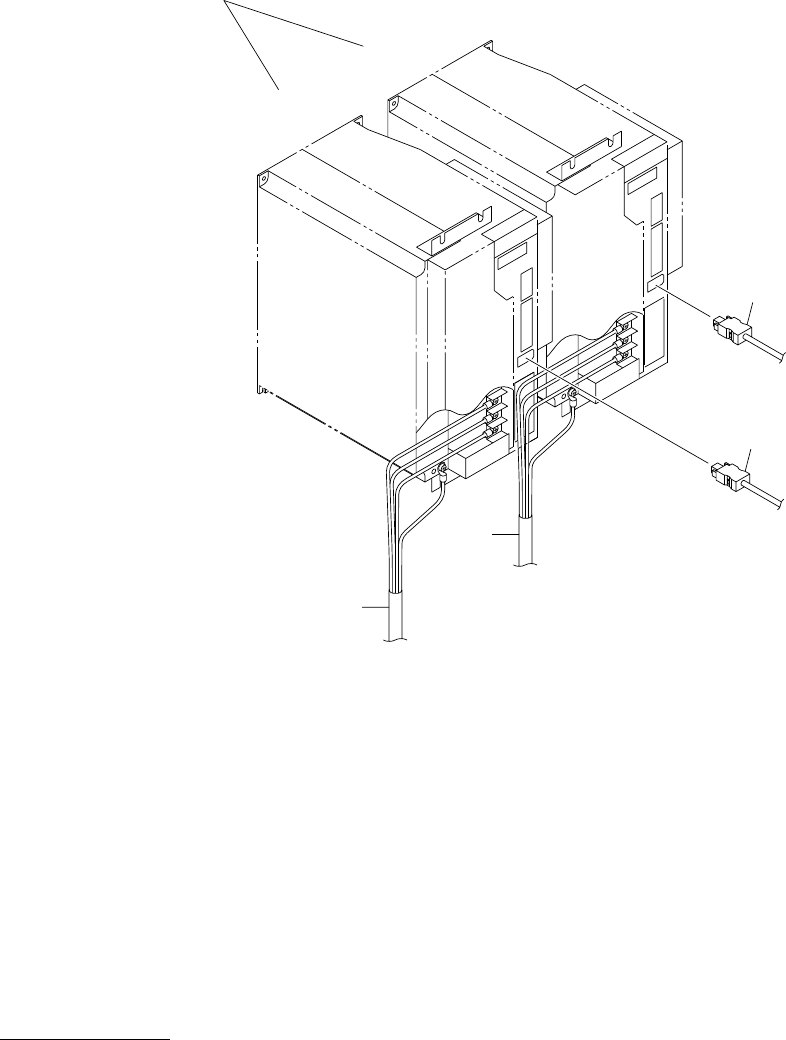

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-4 F ゲ࠼ࠗࡃ F Axis Drivers
See Fig.RL-5
Key No.453
ASMD2
(F1)
ASMD5
(F2)
351
355
354
358
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
293
SB-4
351 630 119 7852 ASSY,CORD(X300S-MOT F1) 1 -XCN105 814SB-010-351
354 630 119 7869 ASSY,CORD(X300S-MOT F2) 1 -XCN117 814SB-010-354
355 630 104 9601 CORD (LINEAR 3.4M) 1 XCN106-XCN107 814SB-010-355
358 630 104 9618 CORD (LINEAR 4.1M) 1 XCN118-XCN119 814SB-010-358
MODEL TCM-X300S
0306-001
294

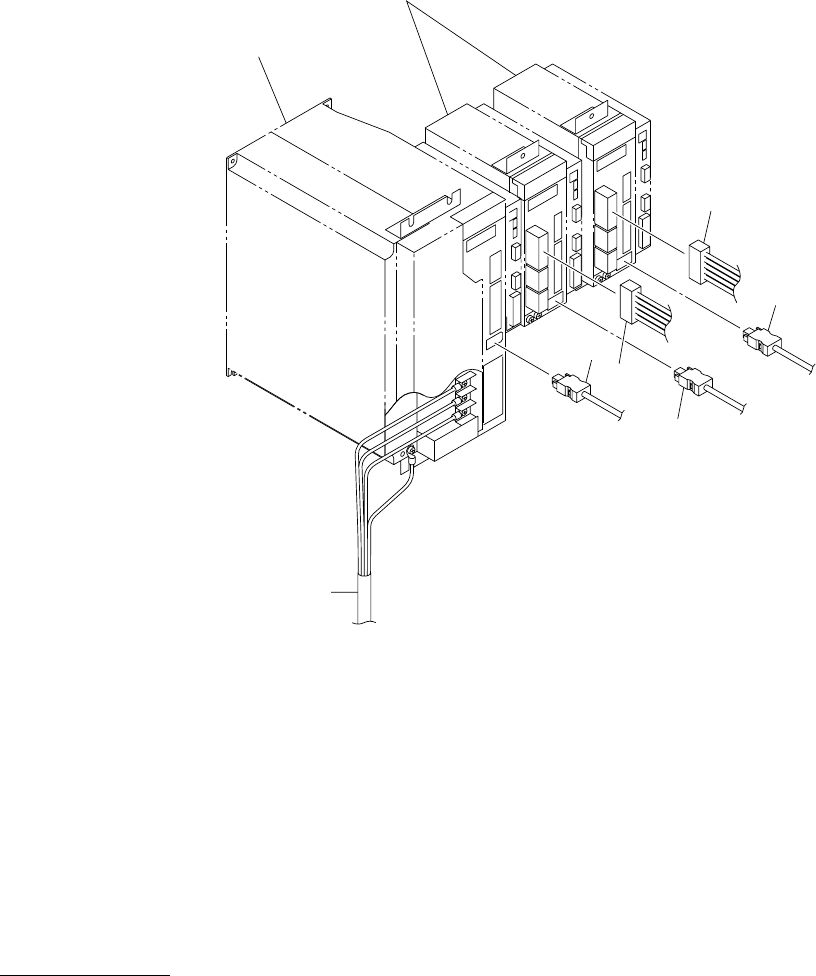

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-6
H ゲޔCZ ゲޔMZ ゲ࠼ࠗࡃ
H Axis, CZ Axis, MZ Axis Driver
553
551
553
551
See Fig.RM-1
Key No.55
ASMD10
(MZ)
ASMD9
(CZ)
See Fig.RM-1
Key No.54
ASMD1(H)
554
552
