P-0183-001 - 第33页
MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 31 C-6 502 630 1 10 2801 BASE 2 814C--010-502 503 41 1 141 4503 WASHER V 8X17X1.6 16 814C--010-503 504 41 1 141 3100 WASHER SPR 8 16 814C--010-504…
MODEL TCM-X300S
0306-001
30
ࡈࠖ࠳ࠠࡖ࠶ࠫㇱ FEEDER CARRIAGE SECTION
Fig. C-6 ࡈࠖ࠳ࠠࡖ࠶ࠫ Feeder Carriage
516
515
517
512
511
513
514
510
506
508
507
509
504
503
502
530
529
528
527
530
529
528
527
See Fig.C-1
Key No.11
See Fig.C-1
Key No.9
505
516
515
517
512
511
513
508
507
506
502
509
514
510
504
503
505
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
31
C-6
502 630 110 2801 BASE 2 814C--010-502
503 411 141 4503 WASHER V 8X17X1.6 16 814C--010-503
504 411 141 3100 WASHER SPR 8 16 814C--010-504
505 630 000 8029 BOLT,HEX-SCT 16 814C--010-505
506 630 105 5206 PLATE 2 814C--010-506
507 411 141 4008 WASHER V 4X9X0.8 20 814C--010-507
508 411 141 2905 WASHER SPR 4 20 814C--010-508
509 630 000 7633 BOLT,HEX-SCT 20 814C--010-509
510 630 105 4834 PLATE 4 814C--010-510
511 411 141 4107 WASHER V 5X10X1 24 814C--010-511
512 411 141 6705 WASHER SPR 5 24 814C--010-512
513 630 000 7756 BOLT,HEX-SCT 24 814C--010-513
514 630 105 4940 PLATE 4 814C--010-514
515 411 141 4008 WASHER V 4X9X0.8 16 814C--010-515
516 411 141 2905 WASHER SPR 4 16 814C--010-516
517 630 000 7633 BOLT,HEX-SCT 16 814C--010-517
527 630 105 5015 SUPPORT 4 814C--010-527
528 411 141 4107 WASHER V 5X10X1 12 814C--010-528
529 411 141 6705 WASHER SPR 5 12 814C--010-529
530 630 000 7756 BOLT,HEX-SCT 12 814C--010-530
MODEL TCM-X300S
0306-001
32
ࡈࠖ࠳ࠠࡖ࠶ࠫㇱ FEEDER CARRIAGE SECTION

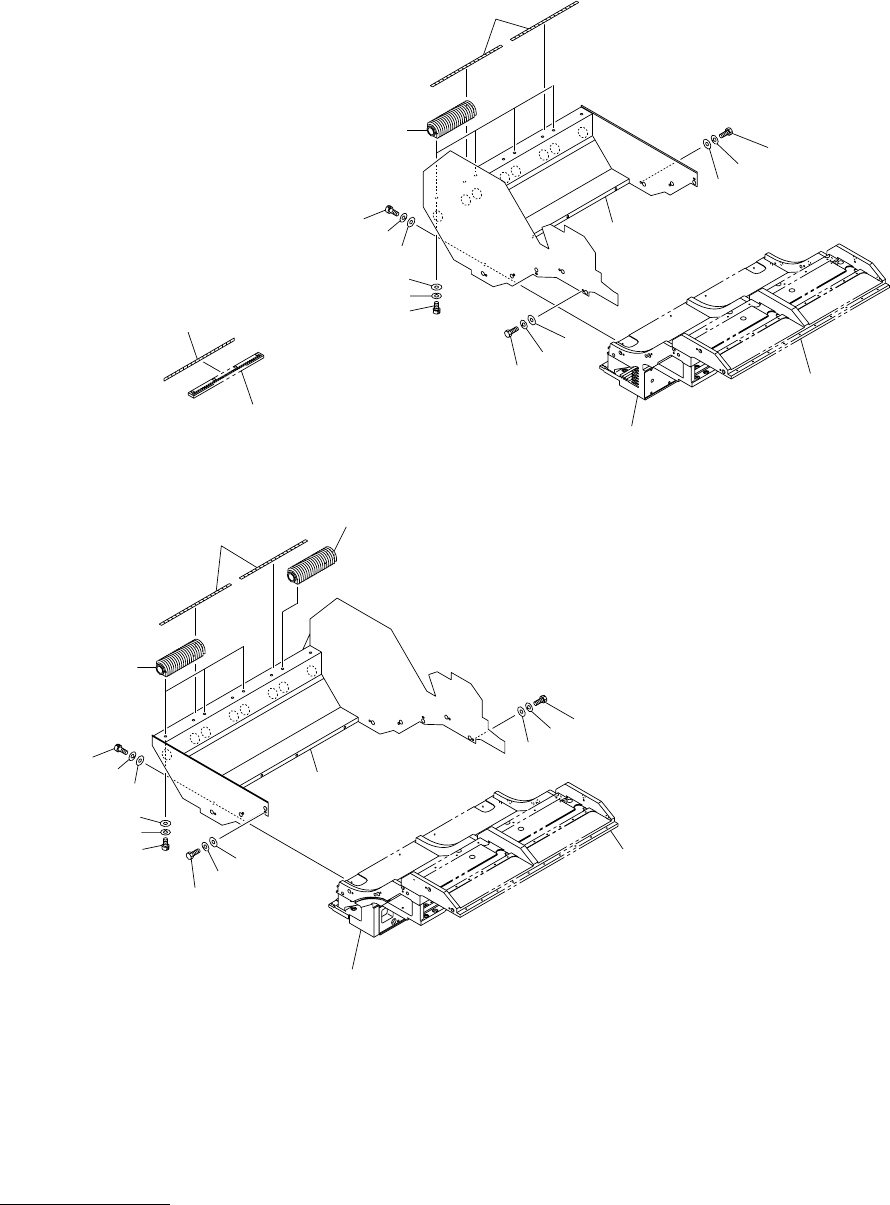

Fig. C-7 ᄢ࡞ࡎ࡞࠳ฃߌ Large Reel Holder Receptacle
613
613
609
605
604
603
610
611
612
606
601
607
See Fig.C-1
Key No.9
608
608
607
606
See Fig.C-6
Key No.502
See Fig.C-6
Key No.514
616
605
604
603
610
611
612
608
609
613
606
602
606
607
608
607
See Fig.C-1
Key No.11
See Fig.C-6
Key No.502
