MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 35 D-1 1 630 089 0419 P L A TE 1 814D--010-001 2 630 003 6787 ME CH P AR TS( RU BBER DAMPER) 4 8 1 4 D- - 010-002 3 41 1 141 4305 WA S HE R V 6 X…
MODEL TCM-X300S
0306-001
34
ⓨᓮㇱ PNEUMATIC SECTION

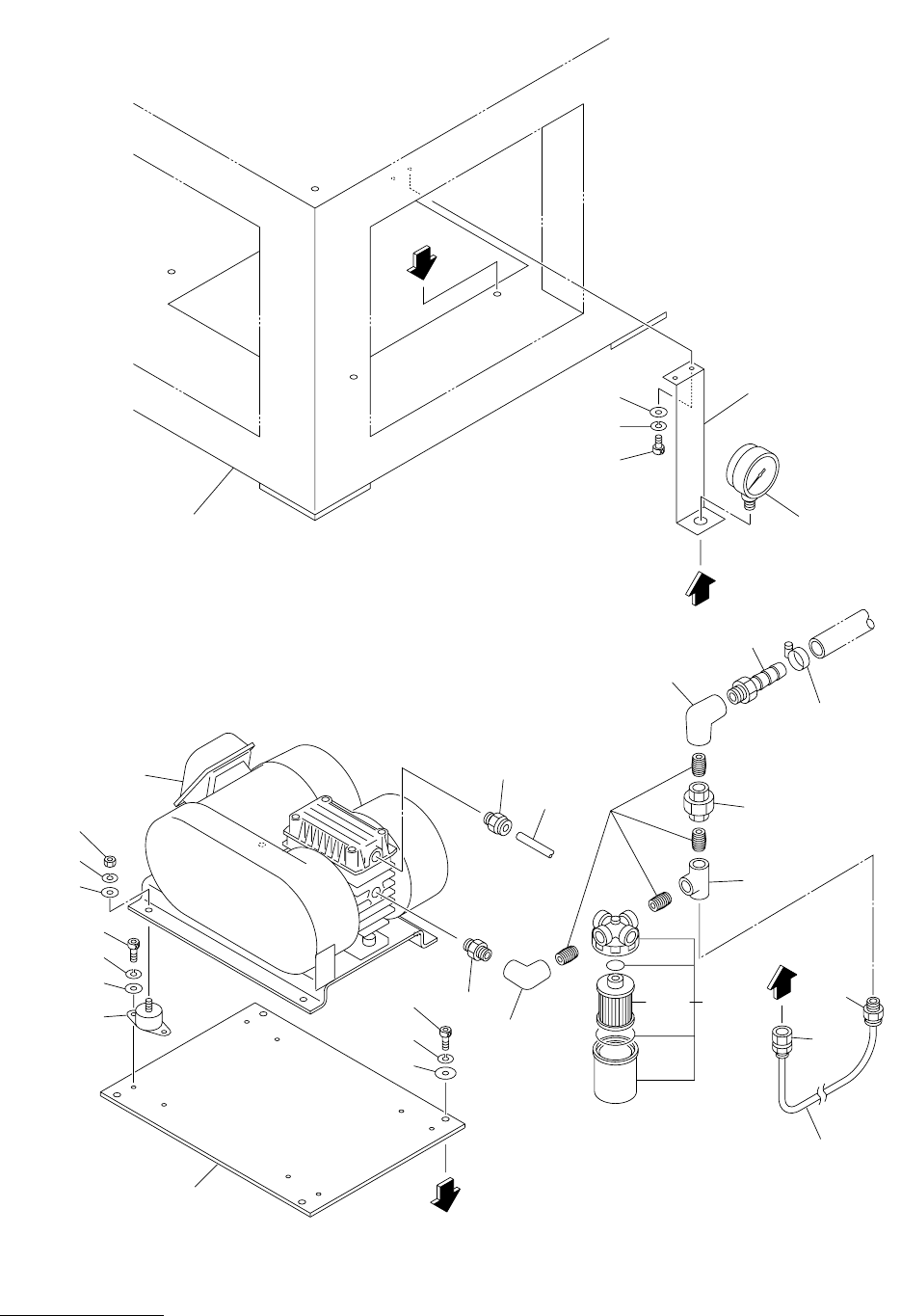

Fig. D-1 ⌀ⓨࡐࡦࡊ Vacuum Pump
A
A
9-20
29
24
21
23
22
25
9-109-11
10
34
B
B
11
12
13
14
35
15
19
8
7
3
4
5
16
17
18
9
2
6
1
20
See Fig.L-1
Key No.9
See Fig.B-1
Key No.45
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
35
D-1
1 630 089 0419 PLATE 1 814D--010-001
2 630 003 6787 MECH PARTS(RUBBER DAMPER) 4 814D--010-002
3 411 141 4305 WASHER V 6X12.5X1.6 8 814D--010-003
4 411 141 3001 WASHER SPR 6 8 814D--010-004
5 630 000 7862 BOLT,HEX-SCT 8 814D--010-005
6 630 001 0220 WASHER 4 814D--010-006
7 411 141 6705 WASHER SPR 5 4 814D--010-007
8 630 000 7770 BOLT,HEX-SCT 4 814D--010-008
9 630 055 2195 VACUUM PUMP 1 M1,#3-040437-1 814D--010-009
9 -10 630 031 8593 AIR LINE EQPT(FILTER) 1 #3-037940
9 -11 630 012 1230 AIR LINE EQPT(FLT ELEM) 1 #XB401379743 4-410A302-4
9 -20 630 055 2171 VACUUM PARTS 1 #4-400A302-1
10 630 055 3062 PIPE FITTINGS 1 814D--010-010
11 630 086 8821 BRACKET 1 814D--010-011
12 411 141 4107 WASHER V 5X10X1 2 814D--010-012
13 411 141 6705 WASHER SPR 5 2 814D--010-013
14 630 000 7749 BOLT,HEX-SCT 2 814D--010-014
15 630 003 7074 PIPE FITTINGS 1 814D--010-015
16 411 141 4503 WASHER V 8X17X1.6 4 814D--010-016
17 411 141 3100 WASHER SPR 8 4 814D--010-017
18 411 141 0901 NUT HEX 8 4 814D--010-018
19 630 034 9290 PIPE FITTINGS 1 814D--010-019
20 630 003 7845 PIPE FITTINGS 1 814D--010-020
21 630 003 8187 PIPE FITTINGS 4 814D--010-021
22 630 003 8088 PIPE FITTINGS 1 814D--010-022
23 630 003 8279 PIPE FITTINGS 1 814D--010-023
24 630 009 3520 PIPE FITTINGS 1 814D--010-024
25 630 003 7067 PIPE FITTINGS 1 814D--010-025
29 630 004 1026 PIPE FITTINGS 1 814D--010-029
34 630 116 9958 TUBE 1 814D--010-034
35 630 119 6848 TUBE 1 814D--010-035
MODEL TCM-X300S
0306-001
36
ⓨᓮㇱ PNEUMATIC SECTION
Fig. D-2 ࠛࠕࡐ࠻㈩▤ Air Port Piping
111
112
113
122
121
119
118
116
123
112
113
115
See Fig.D-1
Key No.11
103
103-05
103-11
103-41
103-40
103-31
103-30
103-21
103-20
103-07
103-10
103-09
103-14
103-06
103-08
103-13
103-12
103-02
102
104
105
114
106
107
107
108
108
117
109
109
124
