KHY_KJV_YS(G)12_PL - 第22页
2 4 X-axis-Sub Assy Moving-axis KHY/KJV -0807 19 1 6 22 26 20 3 13 28 23 15 15 14 14 27 18 16 7 10 9 5 25 9 1 1 1 1 17 12 8 29 22 28 2 21 4 13 27 24 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Com…
1
4

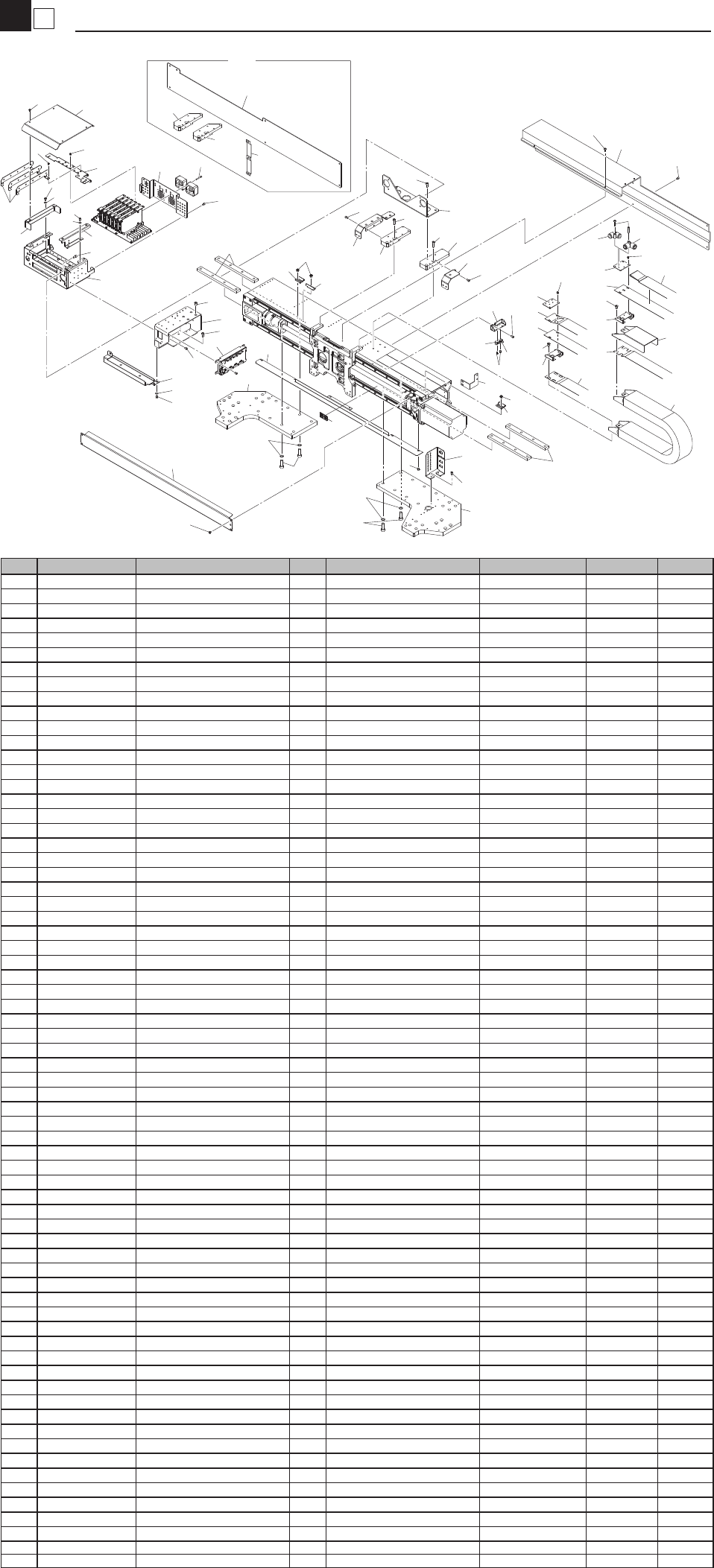

X-axis
Moving-axis
KHY/KJV-1111
26
26
42
11
42
16
56
46
46
42
12
12
12
28
29
34
13
54
44
41
48
41
48
38
40
41
15
49
55
52
53
49
19
14
17
45
41
43
35
23
2
30
42
8
6
37
32
3
38
29
42
4
47
4
27
51
47
9
36
31
9
37
45
10
41
57
18
48
41
20
21
21
33
39
6
37
5
8
22
50
50
7
1
24
34
7
OLD
58
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M221A-A0 COVER,DUCT ASSY. 1
1-1 KHY-M221A-A0 COVER,DUCT ASSY. 1 (2008/12/7) MEY0066 OK
2 KGT-M2266-10 PLATE,NUT 1
3 KGT-M2268-00 BRACKET 1,TAPE 1
3-1 KHY-M2268-00 BRACKET 1,TAPE 1 (2008/12/7) MEY0066 OK
4 KHN-M22F8-00 WASHER,SWR08 16
5 KHW-M2269-00 BRACKET 2,TAPE 1
5-1 KHY-M2269-00 BRACKET 2,TAPE 1 (2008/12/7) MEY0066 OK
6 KHY-M220A-00 TAPE ,X DUCT 1
7 KHY-M220B-00 TAPE 2,X DUCT 1
8 KHY-M220C-00 TAPE 3,X DUCT 1
9 KHY-M2213-S0 PLATE X AXIS SET 1
10 KHY-M2236-00 STAY,DUCT 1
11 KHY-M2237-00 BRACKET,HEAD SERVO 1
12 KHY-M2238-00 BRACKET 2
12-1 KHY-M2238-01 BRACKET,L 1 (2008/12/3) MEX0134 OK
13 KHY-M223A-00 FRAME,HEAD SERVO 1
14 KHY-M223B-00 STAY,1 1
15 KHY-M223D-01 PLATE,FAN MOTOR 1
16 KHY-M223F-00 STAY,R HNS. 1
17 KHY-M223G-00 STAY,L HNS. 1
18 KHY-M223H-00 STAY,R HNS. 1
19 KHY-M223R-00 STAY,HNS. 3
20 KHY-M2251-00 BRACKET,CONNECTOR 1
21 KHY-M2252-01 STOPPER 1 for shipment
21-1 KHY-M2252-02 STOPPER 1 (2009/2/12) MF20037 OK
22 KHY-M2265-00 JOINT 1
23 KHY-M2266-00 PLATE,NUT 1
24 KHY-M2267-00 GUIDE,X AXIS 1
25 KHY-M226A-00 COVER,CABLE 1
25-1 Delete (2009/1/27) MF10084
26 KHY-M226B-00 COVER BACK,X AXIS 1
26-1 KHY-M226B-01 COVER BACK,X AXIS 1 (2009/1/27) MF10084 NG
27 KHY-M227G-00 COVER,B.S. 1
28 KHY-M2282-00 DOG.ORIGIN 1
29 KHY-M2283-00 DOG,SECOND LIMIT 2
30 KHY-M2284-00 BRACKET,SENSOR 1
31 KHY-M22C5-00 COVER UNDER,X AXIS 1
32 KHY-M652W-00 SENSOR, XORG ASSY 1
33 KHY-M652X-00 SENSOR, XOT ASSY 1
34 KV7-M2231-00 SPACER R,NUT 4
35 $UL10 JOINT 1
36 90990-01J011 BOLT HEX.SOCKET HEAD 4
37 90990-01J032 BOLT HEX.SOCKET HEAD 8
38 90990-11J003 SCREW,PAN HEAD W/W 6
39 97602-03006 SCREW,PAN HEAD W/W 4 M3X6
39-1 97602-03108 SCREW,PAN HEAD W/W 4 M3X8 (2010/3/26) MG30157 OK
40 91312-03025 BOLT HEX.SOCKET HEAD 8 M3X25
41 91312-04006 BOLT HEX.SOCKET HEAD 19 M4X6
42 91312-04008 BOLT HEX.SOCKET HEAD 26 M4X8
43 91312-04020 BOLT HEX.SOCKET HEAD 2 M4X20
44 91312-05010 BOLT HEX.SOCKET HEAD 4 M5X10
45 91312-05012 BOLT HEX.SOCKET HEAD 8 M5X12
46 91312-05018 BOLT HEX.SOCKET HEAD 8 M5X18
47 91312-08025 BOLT HEX.SOCKET HEAD 16 M8X25
48 92902-04200 WASHER PLAIN 3
49 97602-03105 SCREW,PAN HEAD W/W 21
50 98902-03006 SCREW BINDING HEAD 4
51 98902-04006 SCREW BINDING HEAD 4
52 KHY-M223V-00 COVER,PCB 1
53 KHY-M223T-00 BRACKET 2 1
54 KHY-M223S-00 BRACKET 1 1
55 90122-04J008 BOLT BUTTON HEAD 4
56 KHY-M2239-00 BRACKET,R 1 (2008/12/3) MEX0134 OK
57 KHN-M220F-02 CAMERA SELECTOR 1
57-1 KHN-M220F-05 CAMERA SELECTOR 1 (2010/1/19) MFY0149 OK
57-2
KHN-M220F-06 CAMERA SELECTOR 1 (2011/3/29) MH30127 OK
58
KV7-M7165-00 SEAL DONT TOUCH 2
2
4

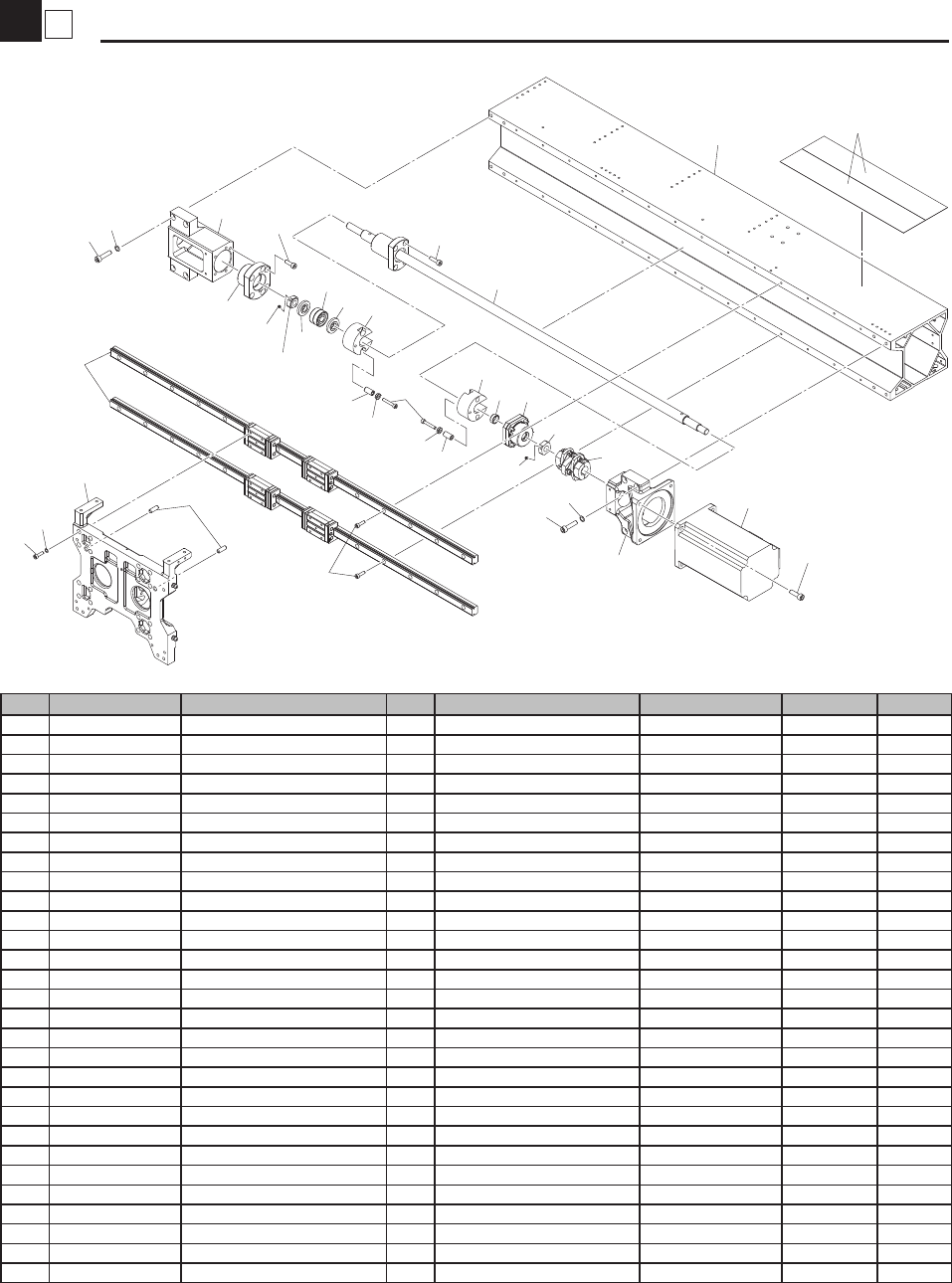

X-axis-Sub Assy
Moving-axis
KHY/KJV-0807
19
1
6
22
26
20
3
13
28
23
15
15
14
14
27
18
16
7
10
9
5
25
9
11
11
17
12
8
29
22
28
2
21
4
13
27
24
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M2211-00 FRAME R, X AXIS 1
2 KHY-M2240-00 SLEEVE,BRG. 1
3 KHN-M2241-00 HOLDER,MOTOR X 1
4 KHY-M2242-00 HOLDER,BRG. 1
5 KHY-M2271-00 BALL SCREW 1
6 KHY-M2276-S0 X-AXIS GUIDE SET 1
7 KHN-M2221-00 SUPPORT UNIT 1
8 KHN-M2261-A0 HOLDER,HEAD R ASSY. 1
9 KHY-M224H-00 DAMPER 2
10 KHN-M224D-00 SPACER 1
11 KHN-M2248-00 SPACER 2
12 KHN-M22F4-00 WASHER,SWR04 16
13 KHN-M22F6-00 WASHER,SWR06 8
14 KHN-M224J-00 COLLAR A 4
15 KHN-M224K-00 COLLAR B 4
16 KGS-M2628-00 LOCK NUT 1
17 KG2-M9173-00 LOCK NUT 1
18 KM0-M2220-00 COUPLING,X-AXIS 1
19 KHY-M220D-00 TAPE, X-AXIS 2
20 90K63-511403 AC SERVO MOTOR 1
21 90990-26J008 BEARING 1
22 91312-04014 BOLT HEX.SOCKET HEAD 44 M4X14
23 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
24 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16
25 91312-05018 BOLT HEX.SOCKET HEAD 8 M5X18
26 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
27 91312-06025 BOLT HEX.SOCKET HEAD 8 M6X25
28 92A08-04304 SET SCREW M4X4 2
29 99480-06018 PIN,PARALLEL 2
3
4

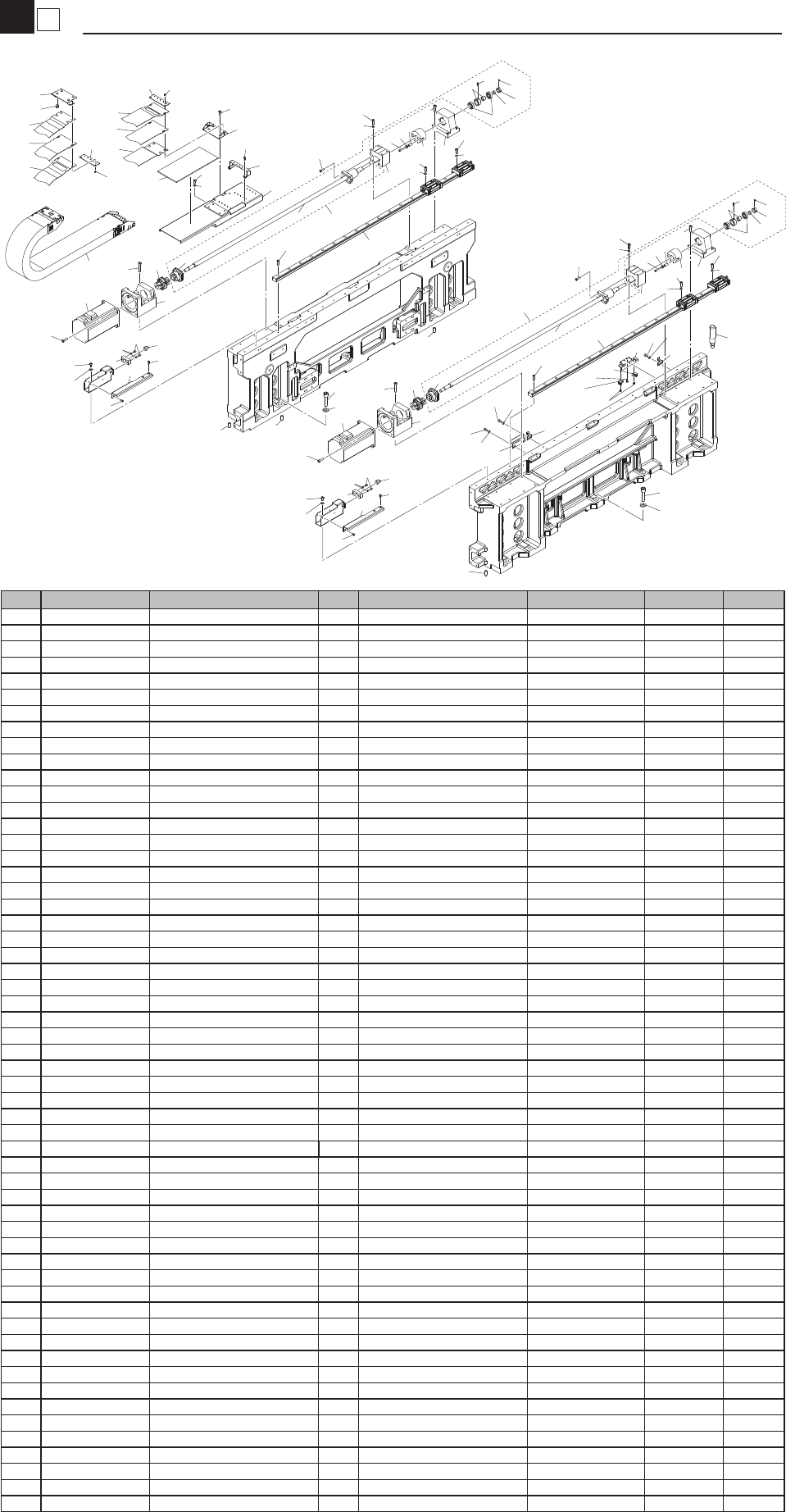

Y-axis
Moving-axis
KHY/KJV-1111
18
46
11
10
9
9
10
11
28
45
28
45
46
18
35
37
43
17
49
29
23
41
7
1
2
1
21
22
36
39
25
38
5
38
25
38
25
3
38
38
25
38
25
38
19
30
31
27
35
32
35
1
1
20
40
37
44
35
27
35
32
35
20
37
44
35
47
47
47
26
33
24
15
43
37
16
12
15
37
37
43
14
43
34
13
35
47
26
33
42
49
29
23
48
41
7
21
22
36
39
25
38
5
3
4
19
30
31
40
42
4
8
6
50
51
51
52
2
48
52
53
53
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M264A-00 HOLDER SET,Y AXIS 2
2 KHY-M264L-00 SPACER,BRG.SET 2
3 KHY-M2671-00 BALL SCREW 2
4 KHY-M2676-S0 GUIDE SET,Y AXIS 1
5 KHY-M2666-00 HOLDER,NUT Y AXIS 2
6 KHY-M2678-00 GUIDE,CABLE Y AXIS 1
7 KHY-M2648-00 DAMPER 2
8 KHY-M260A-00 TAPE, Y AXIS 1
9 KHY-M260B-00 TAPE,Y DUCT 1
10 KHY-M260C-00 TAPE 2, Y DUCT 1
11 KHY-M260D-00 TAPE 3, Y DUCT 1
12 KHY-M652A-00 SENSOR,Y ORG ASSY 1
13 KHY-M652F-00 SENSOR,Y OT ASSY 1
14 KHY-M2682-00 DOG,ORIGIN 1
15 KHY-M2683-00 DOG,SECOND LIMIT 2
16 KHY-M2691-00 BRACKET,SENSOR 1
17 KHY-M2695-00 BRACKET GUIDE,Y AXIS 1
18 KHY-M2669-00 BRACKET,HARNESS 2
19 KHW-M224A-A0 SUPPORT UNIT 2
19-1 KHY-M224A-A0 SUPPORT UNIT 2 (2010/7/14) MG50155 OK
20 KHW-M2654-00 PLATE , DAMPER 2
21 KHN-M224J-00 COLLAR A 4
22 KHN-M224K-00 COLLAR B 4
23 90990-26J008 BEARING 2
24 KGS-M2256-00 GRIP 1
25 KHN-M22F5-00 WASHER,SWR05 16
26 KHN-M2651-00 NYLOCK BOLT (M12X45) 22
27 KV7-M2651-00 DAMPER,STOPPER 2
28 KV7-M2266-00 PLATE,NUT 2
29 KG2-M9173-00 LOCK NUT 2
30 KM0-M2220-00 COUPLING,X-AXIS 2
31 90K63-611F04 AC SERVO MOTOR 2
32 KHW-M2656-00 SPACER 4
32-1 90990-41J180 COLLAR 4 (2014/7/11) ML60128 OK
33 90201-124G9 WASHER,PLAIN 22
34 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
35 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
36 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
37 91312-05010 BOLT HEX.SOCKET HEAD 14 M5X10
38 91312-05016 BOLT HEX.SOCKET HEAD 60 M5X16
39 91312-05018 BOLT HEX.SOCKET HEAD 8 M5X18
40 91312-06018 BOLT HEX.SOCKET HEAD 8 M6X18
41 91312-06020 BOLT HEX.SOCKET HEAD 8 M6X20
42 91312-06035 BOLT HEX,SOCKET HEAD 8 M6X35
43 92902-05600 WASHER PLAIN 10
44 92902-05200 WASHER PLAIN 4
45 98502-03004 SCREW,PAN HEAD 4
46 90990-01J032 BOLT HEX.SOCKET HEAD 8
47 90990-21J001 PIN 6
48 99480-05010 PIN,PARALLEL 2
49 92A08-04305 SET SCREW M4X5 2
50 KHY-M2657-00 BRACKET 1,HARNESS 1
51 KHY-M2658-00 PLATE,FIX Y AXIS 1
51-1 KHY-M2658-01 PLATE,FIX Y AXIS 1 (2009/2/12) MF20047 OK
52 90990-41J100 COLLAR 2
53 KHY-M2671-A0 Y AXIS B.S.SUB ASSY 2 (2014/10/30) ML00154
