KHY_KJV_YS(G)12_PL - 第33页
2 7 Stopper (Exit/Sub/Main) Conveyor Unit KHY/KJV -1 11 1 MAIN STOPPER (B) SUB STOPPER (C) EXIT STOPPER (A) 9 8 9 1 1 1 2 6 16 9 10 5 1 1 8 7 7 1 8 10 9 1 1 5 7 12 13 14 15 17 17 10 18 19 2 R>L L>R Front STD (C) (B…
1
7

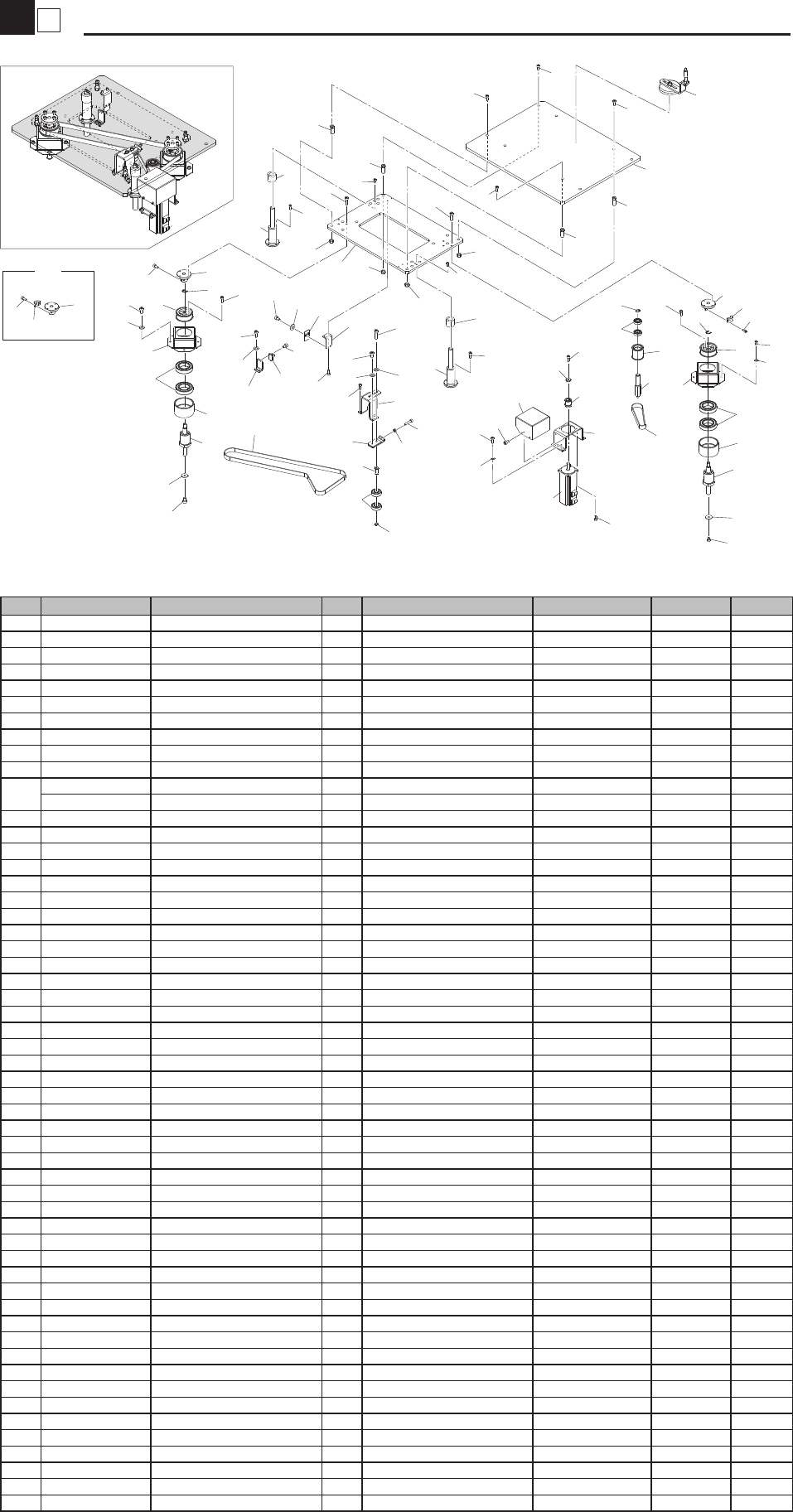

Push-Up
Conveyor Unit
KHY/KJV-1111
42
37
1
1
16
24
38
47
47
19
24
37
38
37
42
47
40
37
22
38
2
15
35
20
10
44
34
43
45
4
40
45
41
39
46
5
30
14
26
28
21
35
18
49
31
6
8
29
9
25
45
32
17
38
27
35
3
33
36
35
21
28
26
14
30
45
40
38
22
23
37
40
45
37
22
23
40
40
1
40
7
11
12
13
15
16
44
48
47
37
2
1
41
OLD
KHY-9210-200~500 push-up Assy is the same parts.
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M921T-00 BOLT 4
2 KHW-M9215-00 PULLEY:P60-3GT 2
3 KHW-M9219-01 BRKT.,MOTOR 1
4 KHW-M921A-00 BRKT.,TENSIONER 1
5 KHW-M921B-00 STAY,ADJUST 1
6 KHW-M921C-00 SHAFT 1 1
7 KHW-M921K-00 BRKT.,SENSOR 1
8 KHW-M9222-00 POST 1
9 KHW-M9223-00 PULLEY:P40-3GT 1
10 KHY-M652E-00 SENSOR,PUORG ASSY 1
11
KHY-M920A-30 PLATE 1 1 (510X460)
KHY-M920A-40 PLATE 1 1 (670X460) LED
12 KHY-M920B-00 STAY 1
13 KHY-M920D-00 PUSH UP PIN UNIT 9
14 KHY-M9211-00 HOUSING,BRG. 2
15 KHY-M9212-00 HOUSING 2
16 KHY-M9217-00 BALL BUSH & SHAFT 2
17 KHY-M921D-00 BELT 315-3GT-15 1
18 KHY-M921E-00 BELT 1086-3GT-15 1
19 KHY-M921G-00 BRKT.,DOG 1 4 Holes
19-1 KHY-M921G-01 BRKT.,DOG 1 6 Holes (2008/5/27) ME50160 NG
20 KHY-M921H-00 PLATE,DOG 1
20-1 KHY-M921H-01 PLATE,DOG 1 (2008/5/27) ME50160 OK
21 KHY-M921M-00 WASHER 2
21-1 KHY-M921M-01 WASHER 2 (2009/4/14) MF40064 OK
22 KHY-M921N-00 JOINT A 2
22-1 KHY-M921N-01 JOINT A 2 (2008/12/19) MEY0088 OK
23 KHY-M921P-00 JOINT B 2
23-1 Delete (2008/12/19) MEY0088
24 KHY-M9221-00 DAMPER 2
25 KHY-M9224-00 COVER,PU MOTOR 1
26 KHY-M9B00-00 BALL SCREW PU 2
27 KV7-M9205-01 PULLEY 1:P22-3GT 1
28 90440-01J090 CIRCLIP 2
29 90933-01J001 BEARING 2
30 90933-01J007 BEARING 4
31 90933-01J300 BEARING 2
32 90990-28J076 WASHER 1
33 90K63-331512 AC SERVO MOTOR 1
34 91312-03005 BOLT HEX.SOCKET HEAD 2 M3X5
35 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
36 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
37 91312-04010 BOLT HEX.SOCKET HEAD 12 M4X10
38 91312-04012 BOLT HEX.SOCKET HEAD 17 M4X12
39 91312-04020 BOLT HEX.SOCKET HEAD 1 M4X20
40 91312-05010 BOLT HEX.SOCKET HEAD 13 M5X10
41 91312-05012 BOLT HEX.SOCKET HEAD 8 M5X12
42 91312-05016 BOLT HEX.SOCKET HEAD 8 M5X16
43 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
44 92902-04200 WASHER PLAIN 4
45 92902-05200 WASHER PLAIN 14
46 95302-04600 NUT HEXAGON 1
47 95602-10100 NUT U 4
48 99009-10400 CIRCLIP : 1
49 99009-12400 CIRCLIP : 1
2
7

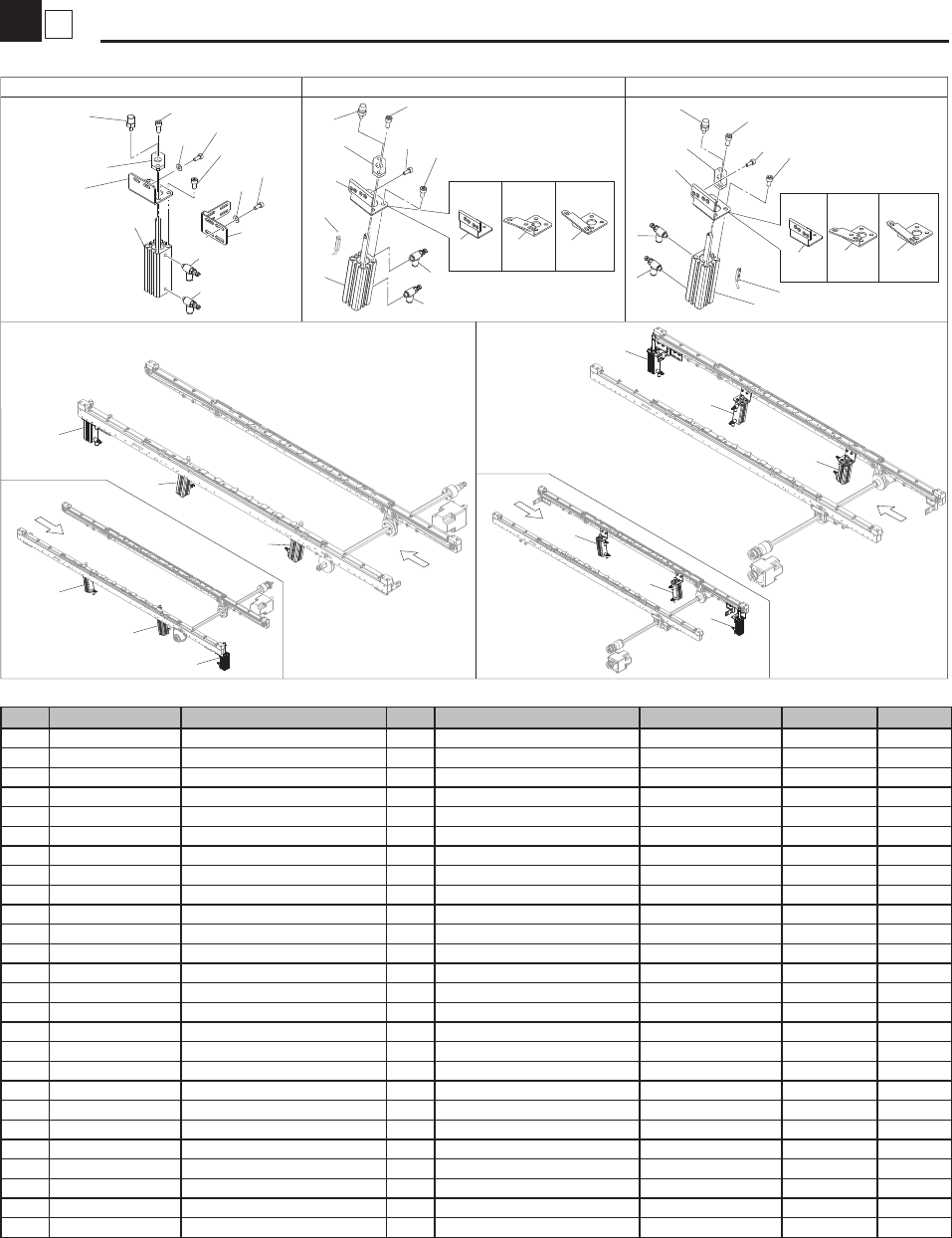

Stopper (Exit/Sub/Main)
Conveyor Unit
KHY/KJV-1111
MAIN STOPPER (B)
SUB STOPPER (C)
EXIT STOPPER (A)
9
8
9
11
1
2
6
16
9
10
5
11
8
7
7
1
8
10
9
11
5
7
12
13
14
15
17
17
10
18
19
2
R>L
L>R
Front STD
(C)
(B)
(A)
(C)
(B)
(A)
Rear STD
(C)
(B)
(A)
(C)
(B)
(A)
L>R
R>L
8
8
8
18
19
20
21
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M9281-00 BRKT.,CYLINDER 2 R>L L=1250
1-1 KHY-M9281-01 BRKT.,CYLINDER 2 R>L (2008/7/11) ME70022 OK
2 KHY-M9281-10 BRKT.,CYLINDER 2 L>R L=1250
2-1 KHY-M9281-11 BRKT.,CYLINDER 2 L>R (2008/7/11) ME70022 OK
3 KHY-M9281-20 BRKT.,CYLINDER 2 R>L L=1460
3-1 Delete (2008/7/11) ME70022
4 KHY-M9281-30 BRKT.,CYLINDER 2 L>R L=1460
4-1 (2008/7/11) ME70022
5 KHW-M9282-00 STOPPER,SUB 2
6 KHY-M9166-A0 CYLINDER,MAIN ASSY. 1
7 KHY-M9284-00 PLATE,STOPPER 2
8 KHW-M9274-A0 SPEED CONTROLLER 2
9 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
10 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
11 91312-05012 BOLT HEX.SOCKET HEAD 2 M5X12
12 KHY-M9238-A0 CYLINDER,SUB.ASSY. 1
13 KHY-M912A-00 BRKT.,SENSOR 1
13-1 KHY-M912A-01 BRKT.,SENSOR 1 (2010/5/10) MG40138 OK
14 KHY-M9271-00 PLATE,STOPPER 1
15 KHW-M9272-00 STOPPER,EXIT 1
16 KHY-M9273-00 CYLINDER 1
17 92903-04200 WASHER PLAIN 4
18 KHY-M9281-40 BRKT.,CYLINDER R 1 LED (2010/10/27) MG80107
19 KHY-M9281-50 BRKT.,CYLINDER L 1 LED (2010/10/27) MG80107
20 KHY-M655R-00 CYLINDER SENS ASSY 1 (2011/11/21) MHX0056
21 KHY-M655T-00 CYLINDER SENS ASSY 1 (2011/11/21) MHX0056
3
7

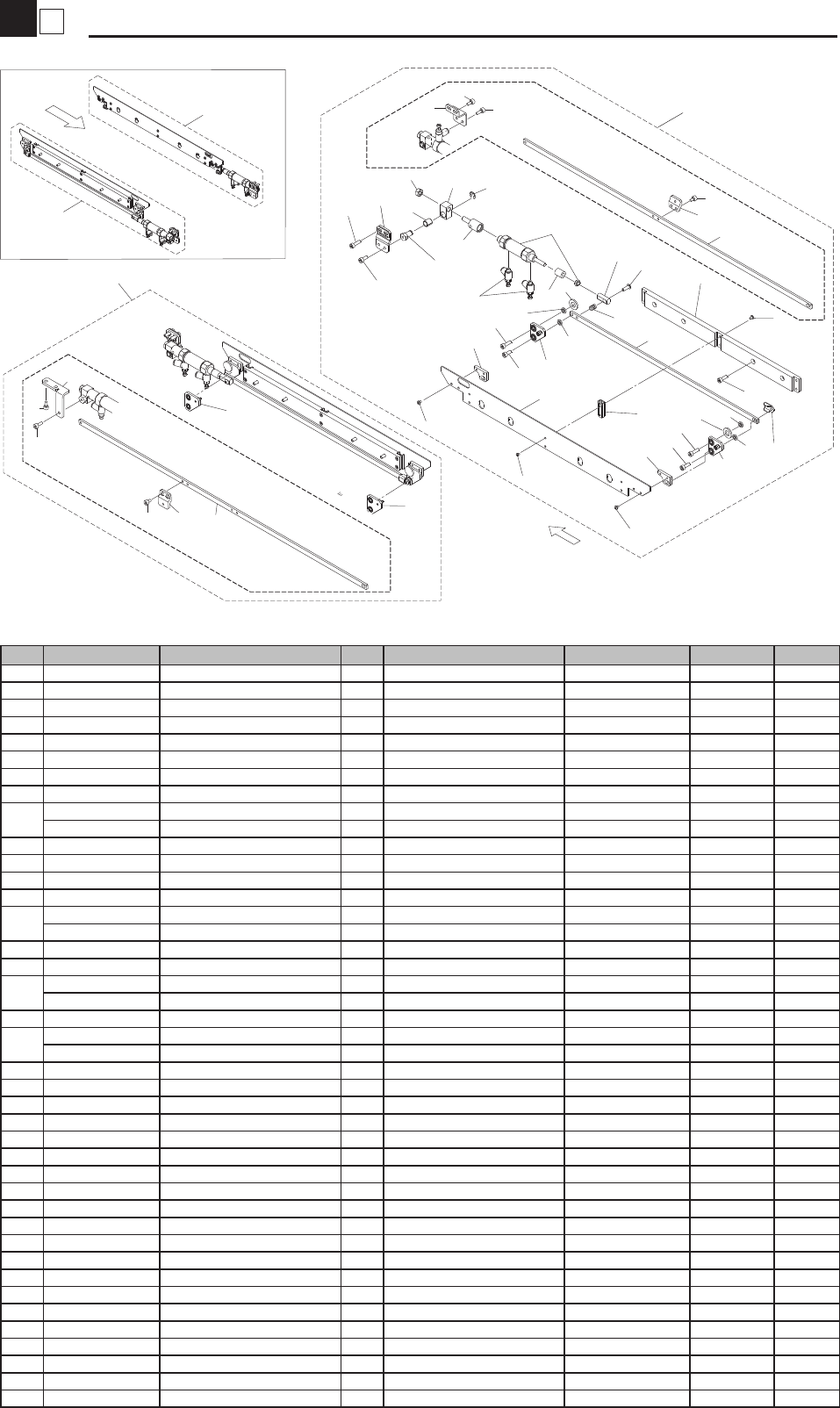

Clamp Board
Conveyor Unit
KHY/KJV-1111
22
20
4
25
29
5
6
26
26
28
37
LED
LED
14
14
3
10
35
34
13
13
15
7
24
16
9
23
27
19
19
11
28
26
30
30
23
21
8
8
17
18
15
13
13
28
26
1,31
2,32
12
12
33
35
36
37
26
1
2
R>L
L>R
11
19
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M9260-10 CLAMP BOARD SUB ASSY 1
2 KHY-M9260-20 CLAMP BOARD SUB ASSY 1
3 KHW-M9167-00 BRKT.,CYL. 2
4 KHY-M926F-00 JOINT,CYL.BRKT 2
5 KHW-M916E-00 BUSH 2
6 KHW-M916F-00 SHAFT 2
7 KHY-M926H-00 JOINT, CYL. 2
8 KHW-M9261-00 PLATE1, LINK 4
9
KHY-M9262-00 PLATE,BASE S 2 L=323mm
KHY-M9262-10 PLATE,BASE S 2 L=524mm LED Type (2010/10/27) MG80107
10 KHY-M9263-00 CYLINDER 2
11 KHW-M9264-B0 LINK B ASSY. 2
12 KHW-M9264-A0 LINK A ASSY. 2
13 KHW-M9265-00 SPACER 8
14
KHW-M9269-00 BRKT.,CYL. 2 T=3.2mm
KHY-M926K-00 BRKT.,CYL. 2 T=2mm LED Type (2010/10/27) MG80107
15 KHW-M926A-00 COLLAR 4
16 KHW-M926B-00 COLLAR, JOINT 2
17
KHY-M926C-00 PLATE,BOARD CLAMP 2 L=429mm
KHY-M926C-10 PLATE,BOARD CLAMP 2 L=650mm LED Type (2010/10/27) MG80107
18 KHW-M926E-00 NUT 2
19
KHY-M926G-00 PLATE 2,LINK 2 L=385mm
KHY-M926G-20 PLATE 2,LINK 2 L=582mm LED Type (2010/10/27) MG80107
20 KHW-M9285-00 SPEED CONTROLLER 4
20-1 KHY-M926S-A0 SPEED CONTROLLER 4 (2010/5/6) MG40106 OK
21 KV7-M9266-01 GUIDE 6
22 KHY-M926M-00 STOPPER,CYLNDER 2
23 90169-02JB04 SCREW BINDING HEAD 24
24 90122-04J012 BOLT BUTTON HEAD 2
24-1 92012-04012 BOLT BUTTON HEAD 2 (2008/8/29) ME70216 OK
25 90440-10J050 CIRCLIP(E) 2
26 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
27 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12
28 91312-04014 BOLT HEX.SOCKET HEAD 8 M4X14
29 95302-06600 NUT HEXAGON 2
30 98902-03005 SCREW BINDING HEAD 16
31 KHY-M9260-30 CLAMP BOARD SUB ASSY 1 L640X460 LED Type
32 KHY-M9260-40 CLAMP BOARD SUB ASSY 1 L640X460 LED Type
33 KHY-M926J-00 JOINT 1 LED Type
34 KHY-M926J-10 JOINT 1 LED Type
35 91312-04006 BOLT HEX.SOCKET HEAD 4 LED Type
36 KHY-M9269-00 BRKT.,CYL. 1 LED Type
37 91312-04008 BOLT HEX.SOCKET HEAD 3 M4X8
