E-by SIPLACE CP12 & CP6 Inserting the Turning Station Part Exchange 2/2 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: PN 00341780S07 Turn…

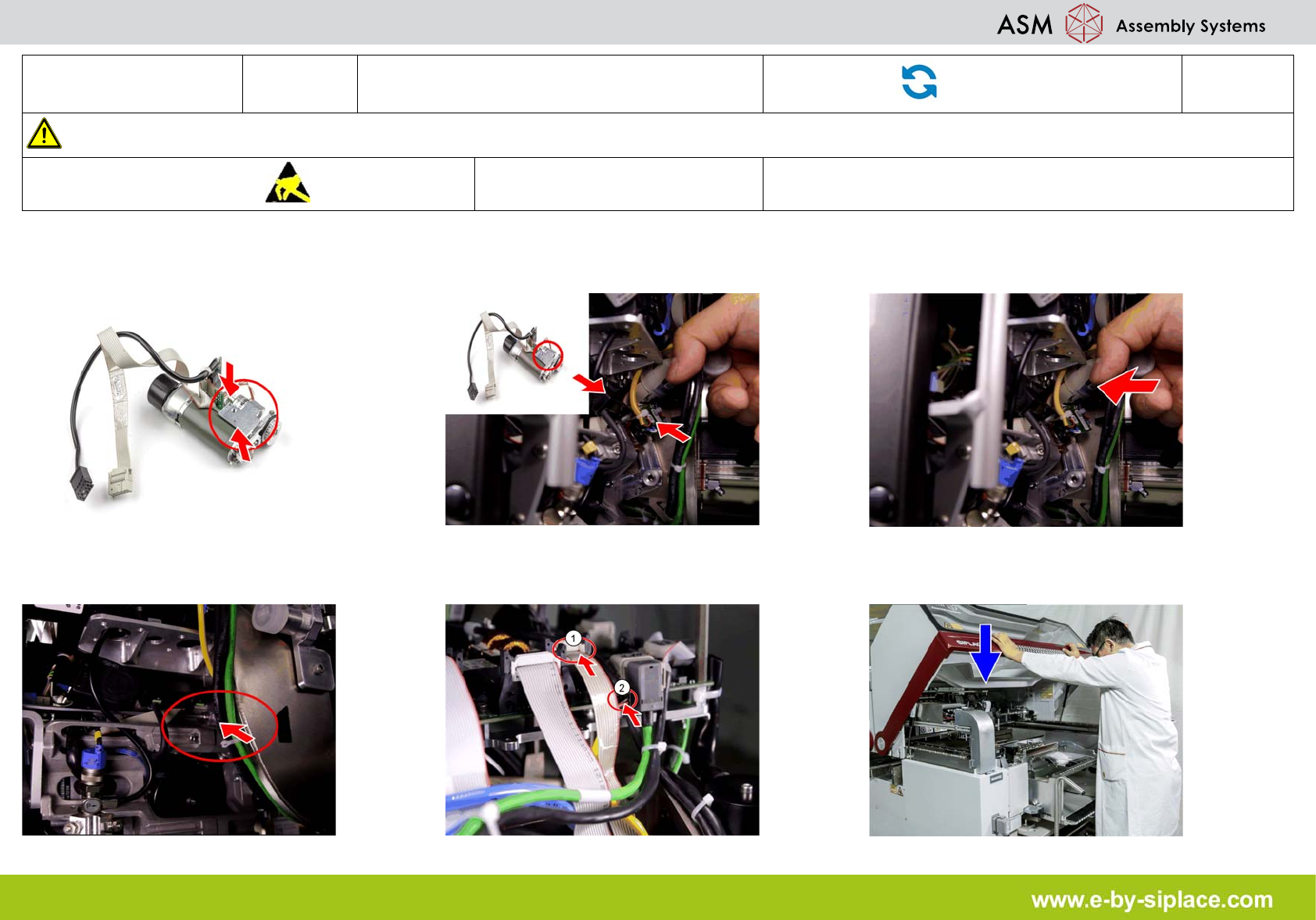

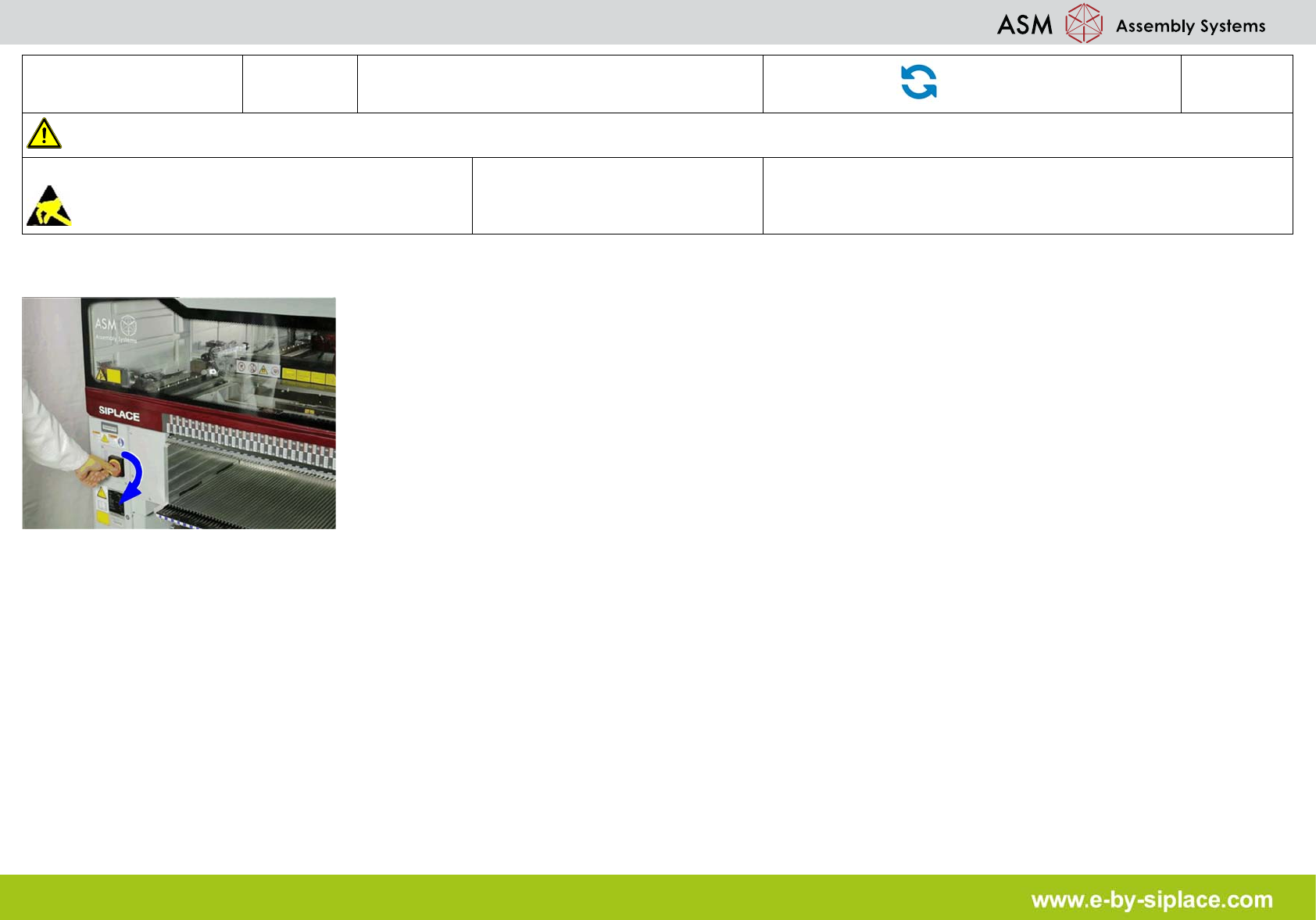

E-by SIPLACE CP12 & CP6 Inserting the Turning Station

Part Exchange

1/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: PN 00341780S07 Turning SystemT. DLM

1. Make sure that the contact surfaces on the

new turning station and back part are clean.

2. Insert the turning station holes onto the par-

allel pins.

3. Carefully push the turning station towards

the front part until it reaches the stop.

4. Fasten the turning station with the screw

provided.

5. Re-connect and fix the cables. 6. Close cover.

E-by SIPLACE CP12 & CP6 Inserting the Turning Station

Part Exchange

2/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed Tool: PN 00341780S07 Turning SystemT. DLM

7. Restart machine.
