High Speed Multi T ray Feeder STF-100N User ’ s Guide 1 1-18 11.1.3. Foot Ass’y
Information on A/S Tool & Materials
11-17
No. Part No. Name Q'ty Tape Remark
25 J70651052A Clamp Block-STF100N 1 STF-20-500-030A
26 J71651012A Clamp Bar-STF100N 1 STF-20-500-031A
27 J72651011A Clamp Cushion-STF100N 1 STF-20-500-032A
28 J70651053A End Space-STF100N 1 STF-20-500-033A
29 J70651054A Washer1-STF100N 1 STF-20-500-034A
30 J71651013A Support2-STF100N 1 STF-20-500-054A
31 J71651014A Block-STF100N 1 STF-20-500-056A
32 J71651015A Slider Bar-STF100N 2 STF-20-500-067A
33 J70651057A Stopper2-STF100N 1 STF-20-500-076A
34 J70651058A Magazine Stopper Plate-STF100N 1 STF-20-500-083A
35 J70651059A Magazine Stopper-STF100N 1 STF-20-500-084A
36 J70651060A Slider Block-STF100N 4 STF-20-500-096A
37 J70651095A Cableveyor BKT-STF100N 1 STF-20-500-108A
38 J66011001A Ball Bearing 6000ZZ-STF100N 1
39 J66191002A Slider Pack-STF100N 2
40 J66011011A Cam Follower CF6A-STF100N 4
41 J65041001A Cableveyor-STF100N 1
42 J70651061A Magazine Guide2-STF100N 1 STF-20-500-101A
43 J70651105A Sensor BKT1-STF100N 1 STF-20-510-010A
44 J31081002A Servo Motor 400W-STF100N 1
45 J32121001A Photo Sensor EE-SX671A-STF100N 2
46 J70651092A M Door BKT-STF100N 1 STF-20-500-080A
47 J32121005A Photo Sensor EE-SX673A-STF100N 1
High Speed Multi Tray Feeder STF-100N User’s Guide
11-18

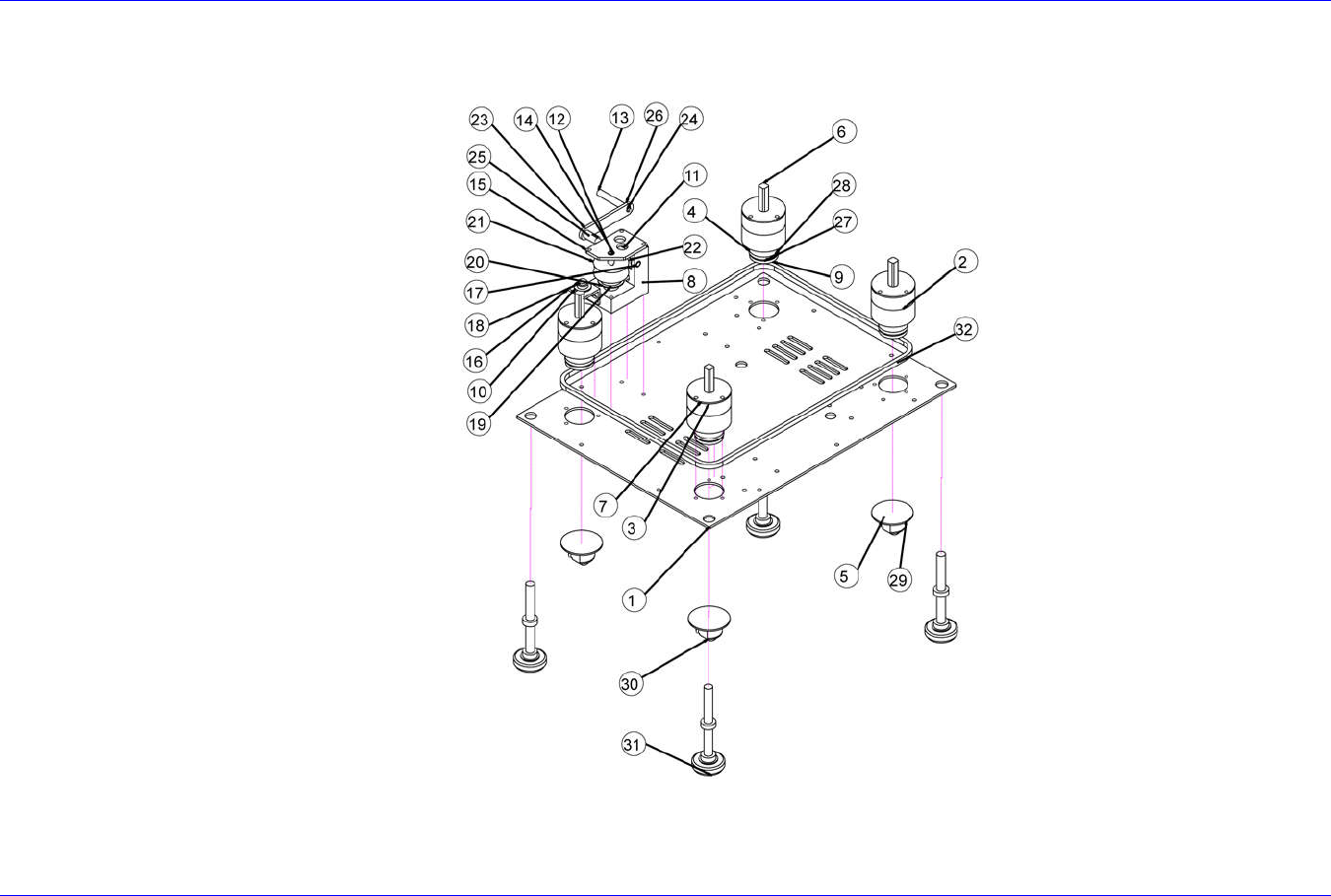

11.1.3. Foot Ass’y
Information on A/S Tool & Materials
11-19
No. Part No. Name Q'ty Tape Remark
1 J70651147A Caster Base-STF100N 1 STF-20-540-001A
2 J70651148A Caster Block-STF100N 4 STF-20-540-002A
3 J70651149A Caster Cover-STF100N 4 STF-20-540-003A
4 J71651038A Caster Nut-STF100N 4 STF-20-540-004A
5 J70651150A Caster Space-STF100N 4 STF-20-540-005A
6 J70651151A Caster Shaft-STF100N 4 STF-20-540-006A
7 J70651152A Caster Washer-STF100N 4 STF-20-540-007A
8 J70651153A Worm Box-STF100N 1 STF-20-540-008A
9 J70651154A Worm Handle Shaft-STF100N 1 STF-20-540-009A
10 J70651155A Idle Sprocket-STF100N 1 STF-20-540-010A
11 J71651039A Worm Handle Cover-STF100N 1 STF-20-540-011A
12 J70651156A Worm Shaft-STF100N 1 STF-20-540-012A
13 J70651157A Worm Block Support-STF100N 1 STF-20-540-013A
14 J71651040A Worm Handle Space-STF100N 1 STF-20-540-014A
15 J70651158A Worm Block Cover-STF100N 1 STF-20-540-015A
16 J70651159A Idle Bracket-STF100N 1 STF-20-540-016A
17 J71651041A Worm Shaft Bush-STF100N 3 STF-20-540-017A
18 J70651160A Idle Shaft Bush-STF100N 1 STF-20-540-018A
19 J70651161A Caster Sprocket-STF100N 4 STF-20-540-019A
20 J70651162A Worm Sprocket-STF100N 1 STF-20-540-020A
21 J70651163A Worm Gear-STF100N 1 STF-20-540-021A
22 J70651046A Worm-STF100N 1 STF-20-540-022A
23 J70651164A Handle Plate-STF100N 1 STF-20-540-023A
24 J71651042A Handle Bush-STF100N 1 STF-20-540-024A
