4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 01/2011 EN
64
In the Maintenance Schedule panel click on the Edit button.
The DB Administrator Login dialog box will open.
4
Fig. 4 - 20 DB administrator login
Enter the access data here and confirm your entries with OK.
The input fields in the DB Maintenance dialog box will be enabled. The following details
can be defined:
– The file and path for the archived data
– A schedule specifying the intervals and times when data is to be removed from the line
system database and stored in the archive.
– When to execute the maintenance schedule.
– The archiving schedule defined here will be stored in the database and can be called up
when required.
4
Fig. 4 - 21 DB maintenance
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 01/2011 EN 4.1 Standard Monitoring Application (SMA)
65
In the DB Backup Schedule panel click on the Edit button.
The DB Administrator Login dialog box will open.
4
Fig. 4 - 22 DB administrator login
Enter the access data here and confirm your entries with OK.
The input fields in the DB Maintenance dialog box will be enabled. The following details
can be defined:
– The file and path for the saved data
– A schedule specifying the intervals and times when data is to be removed from the line
system database and stored in the archive.
– When to execute the backup schedule.
– The backup schedule defined here will be stored in the database and can be called up
when required.
– Database compression with the next database maintenance.
4
Fig. 4 - 23 DB backup
Check your entries and confirm with OK.
Once you have defined all settings in Step 5, click on Next to continue with the next step.
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 01/2011 EN
66
4.1.1.7 Step 6 - Modify Application Parameters
Parameters for the application you have created can be checked and edited here.
4

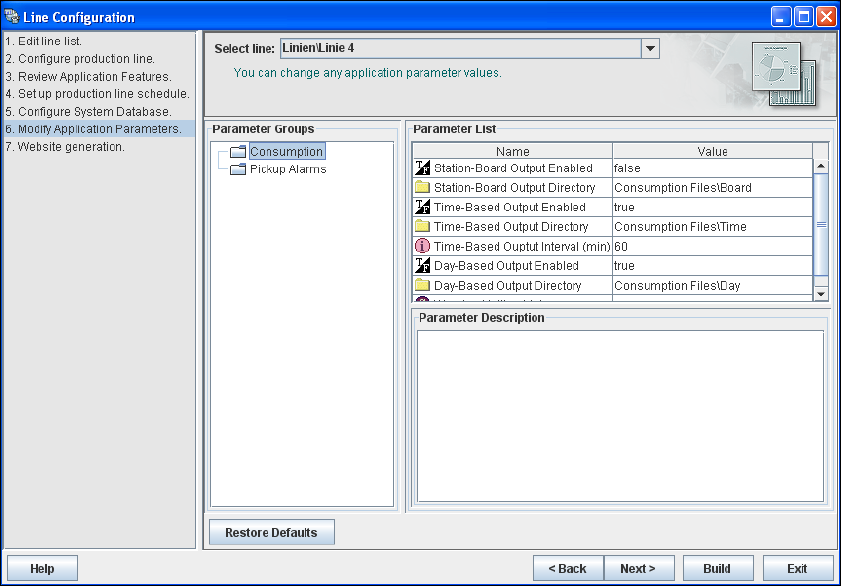

Fig. 4 - 24 Step 6: modify application parameters
Once you have made all modifications, click on Next to continue with the next step.
