4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 01/2011 EN
66
4.1.1.7 Step 6 - Modify Application Parameters
Parameters for the application you have created can be checked and edited here.
4
Fig. 4 - 24 Step 6: modify application parameters
Once you have made all modifications, click on Next to continue with the next step.
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 01/2011 EN 4.1 Standard Monitoring Application (SMA)
67
4.1.1.8 Step 7: Website Generation
In order to monitor your production line in the web browser, you will need to generate a website.
For this purpose, you require web server manager privileges (Tomcat administrator) and the
corresponding password. If you have imported a production line from the OIS the webserver
access data are automatically adopted.
4

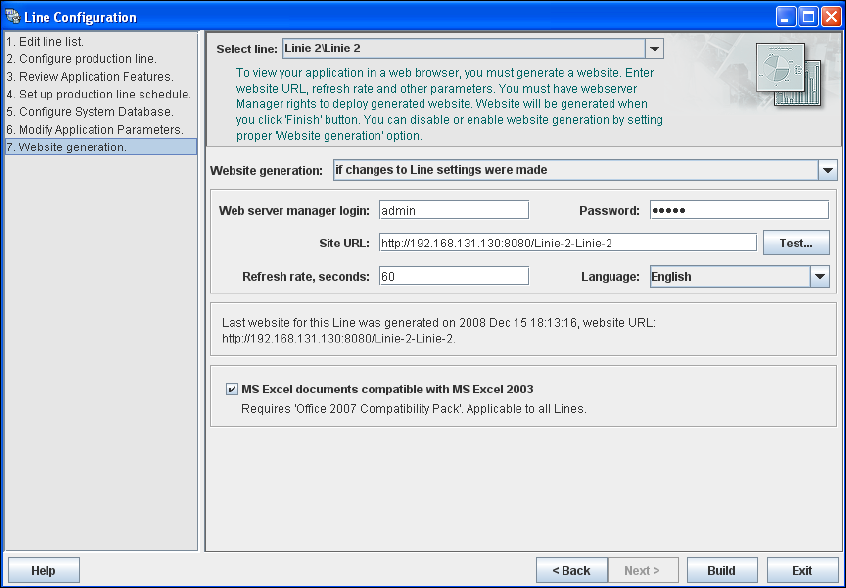

Fig. 4 - 25 Step 8: generating the website
At Website Generation, specify whether and when the website is to be generated. The
following options are available:
– Generate line website
The website will be generated for the selected line.
– If changes to line settings were made
A website will only be generated if changes have been made to the line configuration.
– Do not generate line website
Website generation will not be performed. This can be performed later, while editing the
generated application.
Specify the access data for the Tomcat administrator. If you entered admin and an empty
password during Tomcat configuration, this data will be automatically used as a default login.
If this is not the case, use the data you specified during Tomcat configuration. If you have
imported a production line from the OIS the webserver access data are automatically adopted.
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 01/2011 EN
68
Enter the following information here:
– the folder where the website will be generated to;
– the website URL;
This URL contains a port number, which applies to the web server (Tomcat 5.5) e.g. "8080".
If you change the port number here, you will also need to update the port number of the web
server see “Port Configuration after Changing Tomcat Port Number” on page 46.
– the refresh rate;
For capacity purposes, we recommend a refresh rate of at least one minute (60000 ms).
– website language
– specify whether the login page is to be generated
If Excel 2007 or Excel Viewer 2007 is installed, disable the MS Excel documents compatible
with MS Excel 2007 option. The new features of Excel 2007 for a better display are used
during the xlsx generation for websites.
Once you have made and checked all entries, click on the Build button.
Dependent of the database size, you can compress the database. The Compress System
Database dialog box will open.
4
Fig. 4 - 26 Compress DB
If you want to compress the DB now, select the Compress now option. Confirm with OK.
