3 Technical data and assemblies User manual E by SIPLACE 3.3 Dimensions and weight From software version SC 712.1 Edition 05/2019 112 3.3.3 Height of the folded up protective cover 3 Fig. 3.3 - 6 Height of the folded-up …
User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.3 Dimensions and weight
111
3
Fig. 3.3 - 5 Dimensions of E by SIPLACE single sided machine with fixed table
3 Technical data and assemblies User manual E by SIPLACE
3.3 Dimensions and weight From software version SC 712.1 Edition 05/2019
112
3.3.3 Height of the folded up protective cover
3

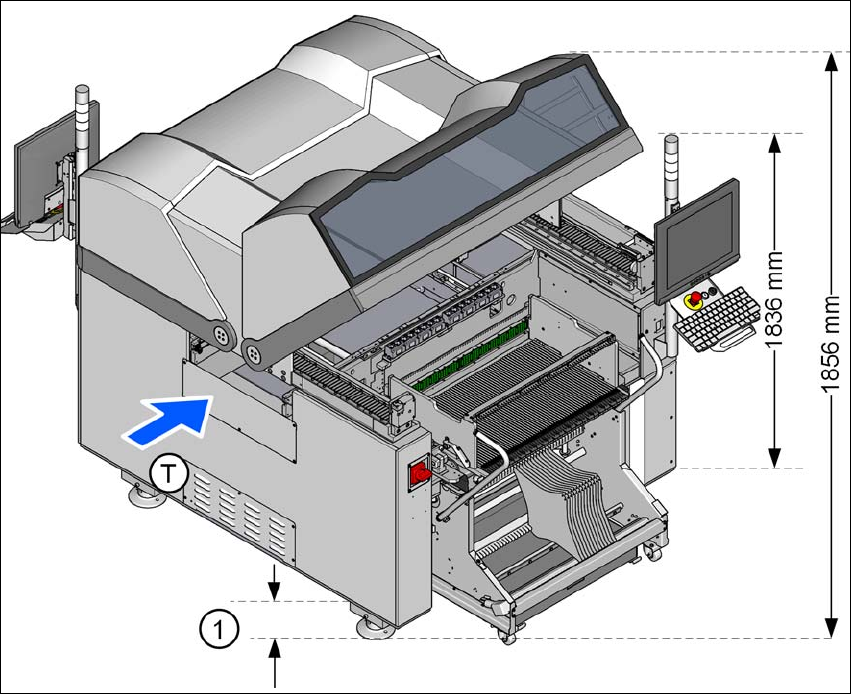

Fig. 3.3 - 6 Height of the folded-up protective cover - dimensions in millimeters
The specified dimensions refer to the max. PCB conveyor height of 950 mm.
(1) The height varies according to the set PCB conveyor height
– for PCB conveyor height 900 mm = 137 mm ± 15 mm: 1806 mm
– for PCB conveyor height 930 mm = 167 mm ± 15 mm: 1836 mm
– for PCB conveyor height 950 mm = 187 mm ± 15 mm: 1856 mm
User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.3 Dimensions and weight
113
3.3.4 Maneuvering distance for the changeover table
3

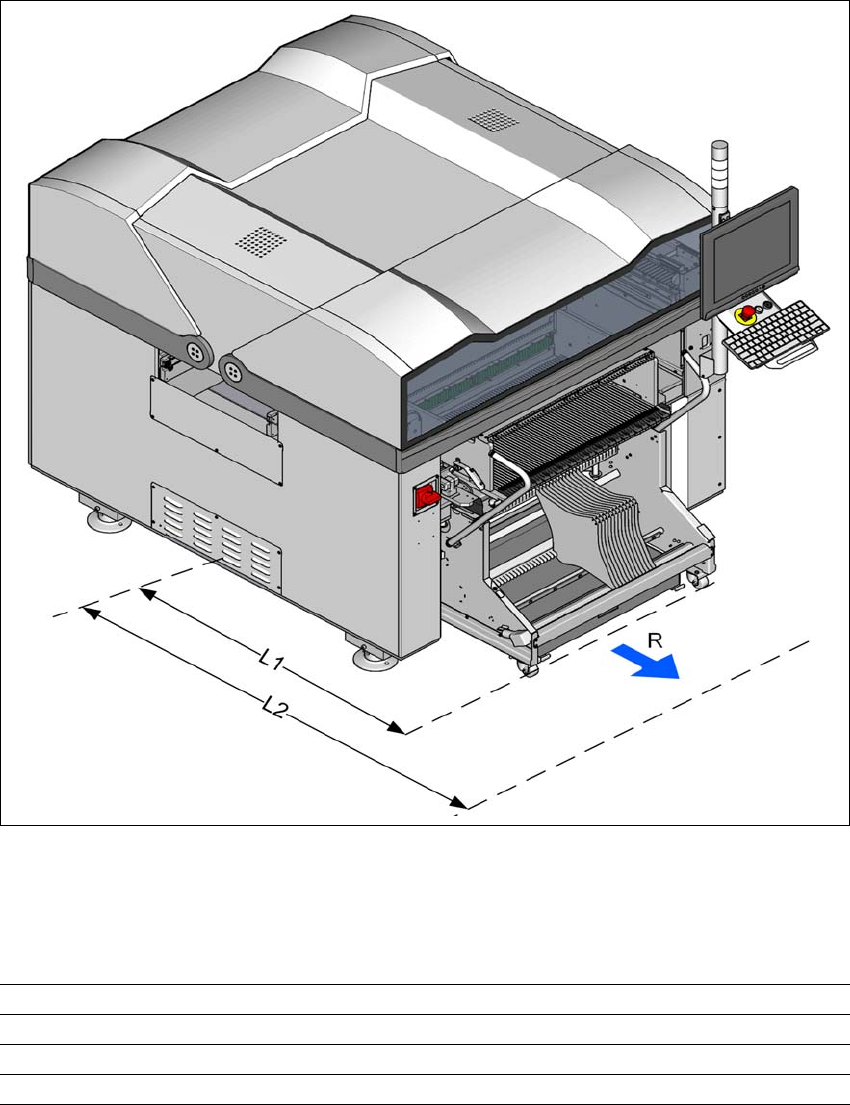

Fig. 3.3 - 7 Maneuvering distance for the changeover table on E by SIPLACE machine
The maneuvering radii "R" for the changeover table in E by SIPLACE machines is:
3
3
Location 1 / Location2
Maneuvering radius R 700 mm
Distance L1: Machine center to outer edge of changeover table 1205 mm
Distance L2: Machine center to wall 1905 mm
