User manual E by SIPLACE 3 Technical data and assemblies From software version SC 712.1 Edition 05/2019 3.5 Placement hea d 121 3.5.2 SIPLACE CP12 fo r high-speed placement Item no. 03082532-xx, SIPLACE CP12 Item no. 031…
3 Technical data and assemblies User manual E by SIPLACE
3.5 Placement head From software version SC 712.1 Edition 05/2019
120
3.5.1.4 Technical data SIPLACE CP14
3

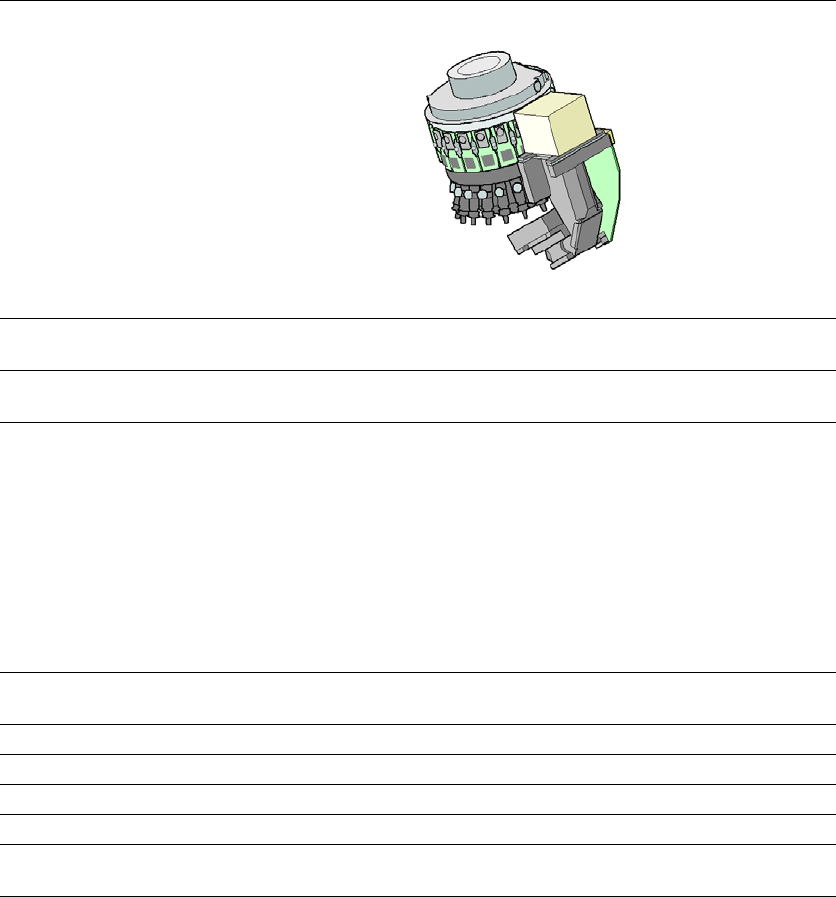

SIPLACE CP14
with component camera type
23 GigE
Component range
*a
*)a Please note that the placeable component range is also affected by the pad geometry, the customer-spe-
cific standards, the component packaging tolerances and the component tolerances.
01005 to 2220, Melf, SOT,
SOD
Component spec.
Max. height
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
4 mm
0.25 mm
0.1 mm
0.4 mm
0.2 mm
0.4 mm x 0.2 mm
6mm x 6 mm
0.25 g
Programmable set-down
force
1.3 - 4.5 N
Nozzle types 4xxx
X/Y accuracy
*b
*)b The SIPLACE accuracy value is measured during the machine acceptance tests. It corresponds to the
conditions set out in the SIPLACE scope of service and supply.
± 41 µm/3σ
Angular accuracy ± 0.5° / 3σ
Illumination level 5
Possible illumination
level settings
256
5
User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.5 Placement head
121
3.5.2 SIPLACE CP12 for high-speed placement
Item no. 03082532-xx, SIPLACE CP12
Item no. 03101672-xx, Component camera, type 30 GigE
3
Fig. 3.5 - 3 SIPLACE CP12 - Function groups, part 1
3
(1) Vacuum generator
(2) Turning station, DP axis
(3) Star with 12 sleeves, star axis
(4) Forced air valve
(5) Silencer
3 Technical data and assemblies User manual E by SIPLACE
3.5 Placement head From software version SC 712.1 Edition 05/2019
122
3
Fig. 3.5 - 4 SIPLACE CP12 - Function groups, part 2
3
(1) Intermediate distributor board (beneath the cover)
(2) Star drive - DR motor
(3) Z axis motor
(4) Valve adjustment drive
(5) Component camera, type 30 GigE
