User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.9 Alternative E by SIPLACE feeder modules
153
3.9 Alternative E by SIPLACE feeder modules
3.9.1 SIPLACE StickFeeder E
Item no. 00288207-xx SIPLACE StickFeeder E
The SIPLACE StickFeeder E for E by SIPLACE can be used on any E by SIPLACE feeder table
The StickFeeder for E by SIPLACE will occupy 10 tracks on the feeder table.
3

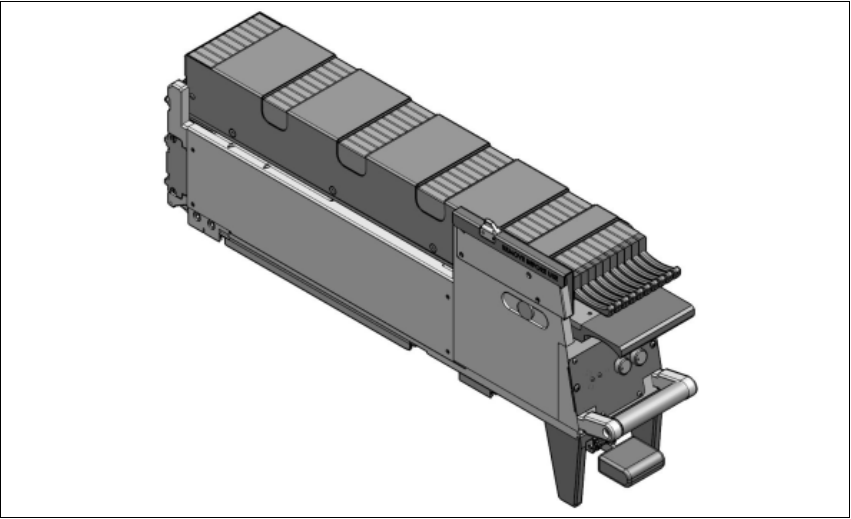

Fig. 3.9 - 1 SIPLACE StickFeeder E
3.9.2 Operation, setting up and technical data
The operation, setting up and technical data are described in the StickFeeder E job guide,
[Item no.: 00198626-xx]
3 Technical data and assemblies User manual E by SIPLACE
3.9 Alternative E by SIPLACE feeder modules From software version SC 712.1 Edition 05/2019
154
3.9.2.1 Safety instructions for the SIPLACE StickFeeder E
3
3
3
3
Heavy weight of the SIPLACE StickFeeder E!
The heavy weight of the SIPLACE StickFeeder E (14 kg) could cause
injuries if the module is not handled correctly.
Do not lift or carry the module alone.
Use lifting aids and proper lifting techniques when removing or
replacing.
You might need to enlist the help of a second person.
User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.9 Alternative E by SIPLACE feeder modules
155
3.9.3 SIPLACE LDU E
The SIPLACE LDU E is used for coating flip chips and CSP components with flux. The flux con-
tainer slides with a linear movement over the dip plate and coats the cavity in the dip plate with a
layer of flux (predefined layer thickness).The parameters for coating a component with flux are
prescribed in SIPLACE Pro. The component is coated and then the flux layer is renewed. This
sequence guarantees consistent processing conditions for the components. The SIPLACE LDU E
is taken into account as an independent feeder module type in the setup. An implemented warm-
ing function allows the viscosity of the flux to be altered. It occupies 9 locations of an 8 mm E
feeder module.
3
Fig. 3.9 - 2 SIPLACE LDU E
PLEASE NOTE
Not applicable for SIPLACE E-Pro
The SIPLACE LDU E is not applicable for SIPLACE E Pro.
