3 Technical data and assemblies User manual E by SIPLACE
3.9 Alternative E by SIPLACE feeder modules From software version SC 712.1 Edition 05/2019
156
3.9.4 SIPLACE PowerAdaptor E
Item no. 03113102-xx SIPLACE PowerAdaptor E
The SIPLACE PowerAdaptor E provides power to a single feeder for offline setup. This device can
either be put on any flat table or can be attached to SIPLACE Preparation Table E (see Section
6.8 on page 304).
3
Fig. 3.9 - 3 SIPLACE Power Adaptor E
(1) Tape reel holder
(2) Guide profile for guiding feeder modules
(3) Pogo-pin interface
3.9.4.1 Description
The SIPLACE PowerAdaptor E allows SIPLACE SmartFeeder E to be used outside the machine
and setup area. The SIPLACE PowerAdaptor E consists of an aluminum frame with guide profile
for holding and guiding the feeder modules. As with the changeover table, the feeder module is
placed on the guide profile, with the slider guides, and is pushed forwards until the front centering
pin of the feeder module is fully inserted.
(3)
(2)
(1)
User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.9 Alternative E by SIPLACE feeder modules
157
3.9.4.2 Usage
The SIPLACE PowerAdaptor E is used to check, maintain and repair SIPLACE SmartFeeder E.
It can also be used for setting up in advance for PCB production. The tape reel holder is also
mounted on the base plate. When a component tape is inserted, you can check or reset the incre-
ment, pick-up position and conveyor speed. The detailed user manual describes how to use the
SIPLACE PowerAdaptor E and the necessary servicing work.
3.9.4.3 Scope of delivery
– SIPLACE PowerAdaptor E
– Power supply, 100 - 120 / 200 - 240 VAC, +24VDC, 3.0 A
– Base plate with tape reel arm
3 Technical data and assemblies User manual E by SIPLACE
3.10 Changeover table for E by SIPLACE From software version SC 712.1 Edition 05/2019
158
3.10 Changeover table for E by SIPLACE
Item no. 03104678-xx Changeover table for E by SIPLACE with 60 tracks
The changeover tables are stand-alone modules that can be set up with
SIPLACE SmartFeeder E.
3

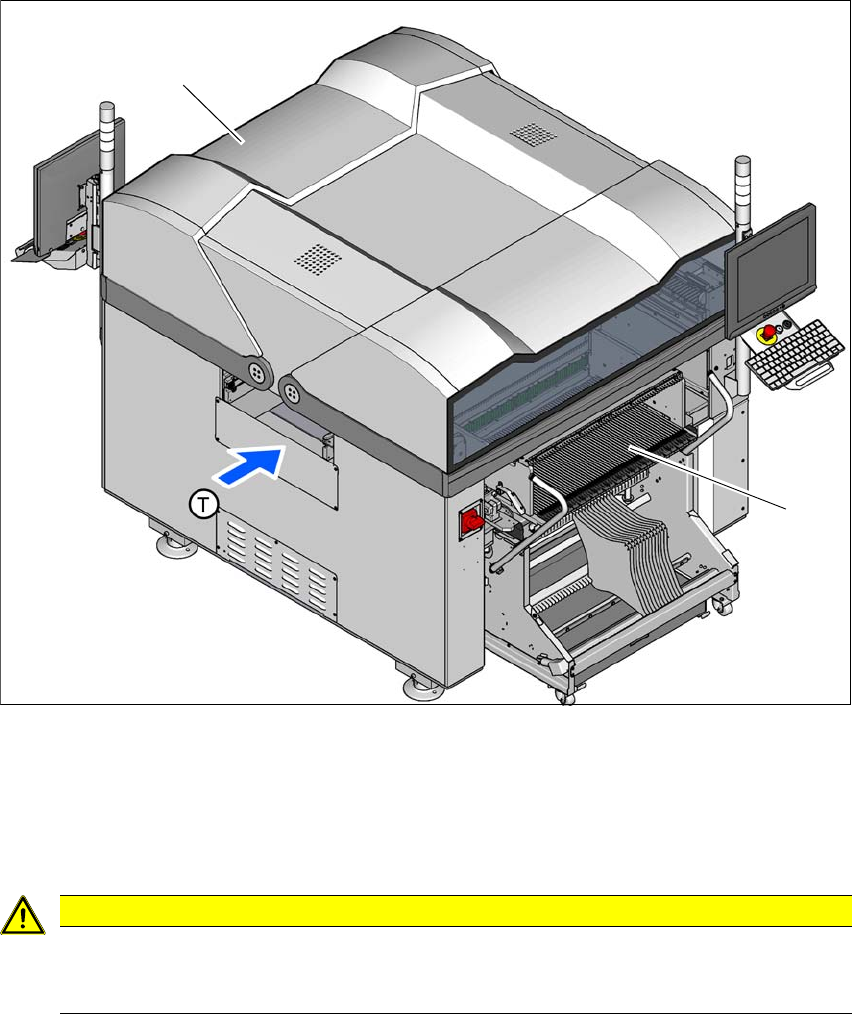

Fig. 3.10 - 1 Changeover table locations, E by SIPLACE (Example - double sided machine)
(1) Location 1
(2) Location 2
(T) Direction of PCB transport
3
CAUTION
The E by SIPLACE changeover tables may only be docked onto locations at which the
changeover table COT insert for the E by SIPLACE has been installed
(fig. 5.16 - 3, page 253 ).
(1)
(2)
