User manual E by SIPLACE 3 Technical data and assemblies From software version SC 712.1 Edition 05/2019 3.10 Changeover t able for E by SIPLACE 165 3.10.6 Tape container 3.10.6.1 Description The tape container can hold t…
3 Technical data and assemblies User manual E by SIPLACE
3.10 Changeover table for E by SIPLACE From software version SC 712.1 Edition 05/2019
164
3

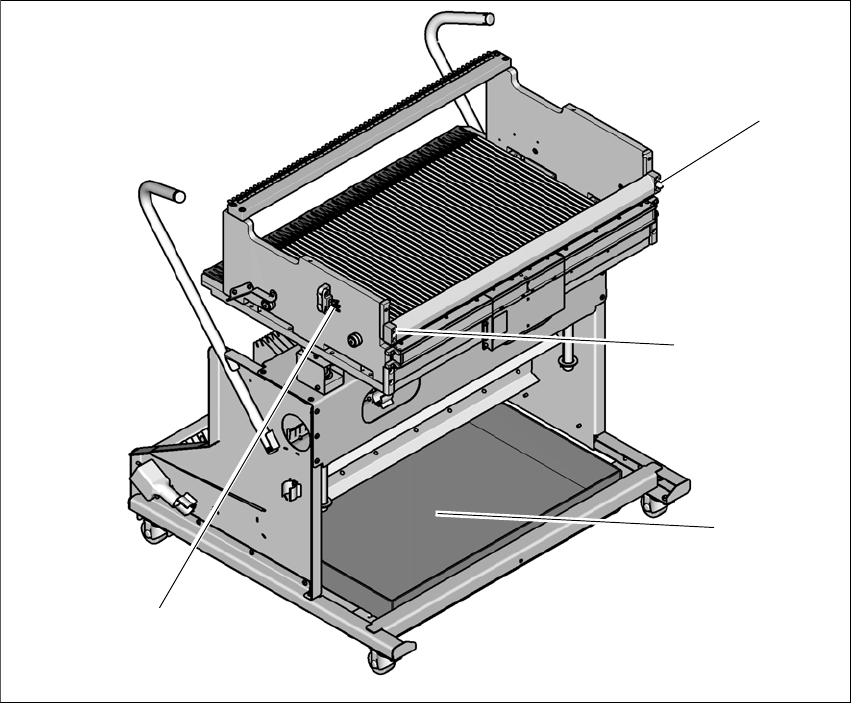

Fig. 3.10 - 6 Changeover table, front view
(1) Contact for switching the safety switch of the EMERGENCY STOP circuit
(2) Centering pin on the changeover table
(3) Waste tape container
(1)
(2)
(2)
(3)
User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.10 Changeover table for E by SIPLACE
165
3.10.6 Tape container
3.10.6.1 Description
The tape container can hold tape reels up to 19" (483 mm) in diameter. The insertion of separating
plates is described in section 5.10.4
page 232.
3

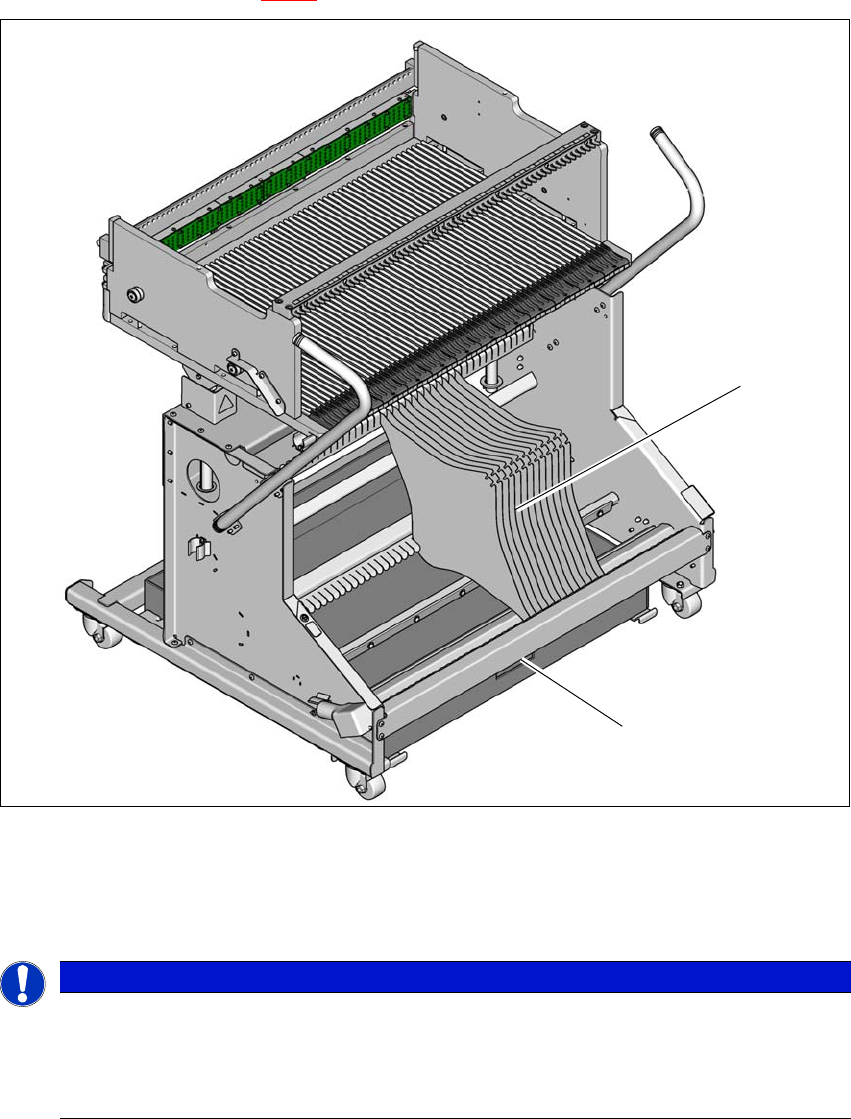

Fig. 3.10 - 7 Changeover table, E by SIPLACE, with tape container
(1) Tape container with separating plates
(2) Waste tape container
3
PLEASE NOTE
Using spindles
E by SIPLACE changeover tables do not generally need spindles.
Use spindles if the error message "Timeout" appears frequently on the SIPLACE
SmartFeeder E.
(1)
(2)
3 Technical data and assemblies User manual E by SIPLACE
3.10 Changeover table for E by SIPLACE From software version SC 712.1 Edition 05/2019
166
3.10.7 Used tape chute
3

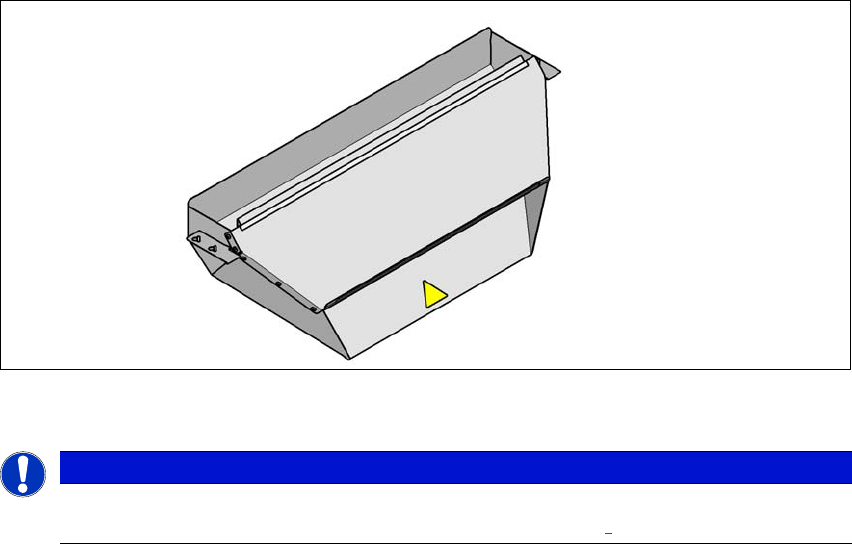

Fig. 3.10 - 8 Used tape chute for the changeover table COT insert
3
3
3.10.8 Empty tape duct on the changeover table COT insert
Item no. 03111421-xx Empty tape duct, 12 mm
Item no. 03111420-xx Empty tape duct, 25 mm
PLEASE NOTE
The used tape chute for the E by SIPLACE can only be installed on the changeover table
COT insert for the E by SIPLACE (see fig. 5.16 - 3, page 253)
.
