3 Technical data and assemblies User manual E by SIPLACE 3.10 Changeover table for E by SIPLACE From software version SC 712.1 Edition 05/2019 166 3.10.7 Used tape chute 3 Fig. 3.10 - 8 Used tape chute for the chan geove…
User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.10 Changeover table for E by SIPLACE
165
3.10.6 Tape container
3.10.6.1 Description
The tape container can hold tape reels up to 19" (483 mm) in diameter. The insertion of separating
plates is described in section 5.10.4
page 232.
3
Fig. 3.10 - 7 Changeover table, E by SIPLACE, with tape container
(1) Tape container with separating plates
(2) Waste tape container
3
PLEASE NOTE
Using spindles
E by SIPLACE changeover tables do not generally need spindles.
Use spindles if the error message "Timeout" appears frequently on the SIPLACE
SmartFeeder E.
(1)
(2)
3 Technical data and assemblies User manual E by SIPLACE
3.10 Changeover table for E by SIPLACE From software version SC 712.1 Edition 05/2019
166
3.10.7 Used tape chute
3

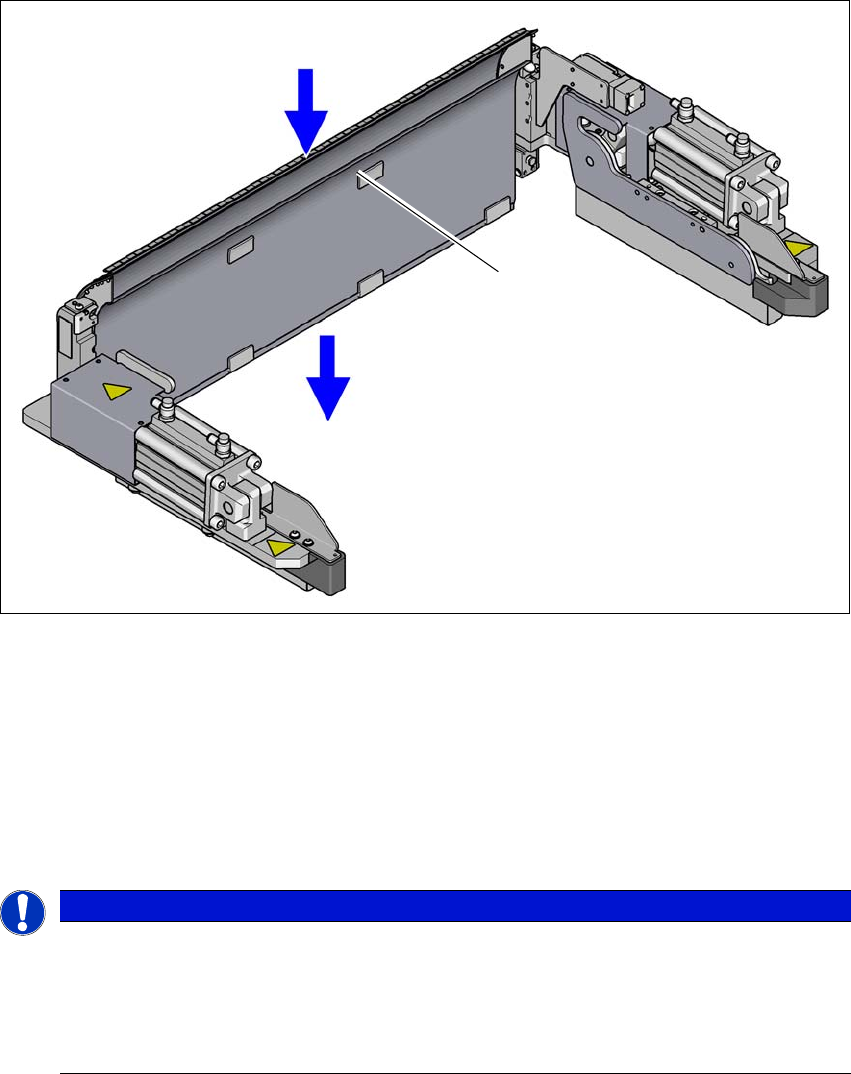

Fig. 3.10 - 8 Used tape chute for the changeover table COT insert
3
3
3.10.8 Empty tape duct on the changeover table COT insert
Item no. 03111421-xx Empty tape duct, 12 mm
Item no. 03111420-xx Empty tape duct, 25 mm
PLEASE NOTE
The used tape chute for the E by SIPLACE can only be installed on the changeover table
COT insert for the E by SIPLACE (see fig. 5.16 - 3, page 253)
.
User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.10 Changeover table for E by SIPLACE
167
3
Fig. 3.10 - 9 Empty tape duct on the E by SIPLACE changeover table COT insert
(1) Inlet slot for used tape
(2) Outlet slot for the used tape above the pneumatic tape cutter
(3) Empty tape duct < 12 mm up to 25 mm (can be removed for tapes > 12 mm)
The empty tape duct can guide component tapes with a maximum pocket height of 12 mm. If
feeder modules which use tapes with a pocket height of > 12 mm are used, use the 25 mm
empty tape duct.
3
PLEASE NOTE
Risk of blockages!
When using feeder modules with low pockets next to feeder modules with high pockets,
there is a risk of blockages in the empty tapes.
Do not position feeder modules with shallow pockets immediately beside feeder mod-
ules with deep pockets.
(1)
(2)
(3)
