User manual E by SIPLACE 1 Introduction From software version SC 712.1 Edition 05/2 019 1.1 Single sided E by SIPLACE 17 The E by SIPLACE placement machin es demonstrate – High precision – Placement p erformance up to th…
1 Introduction User manual E by SIPLACE
1.1 Single sided E by SIPLACE From software version SC 712.1 Edition 05/2019
16
1.1.2 E by SIPLACE with fixed table on location 1
1

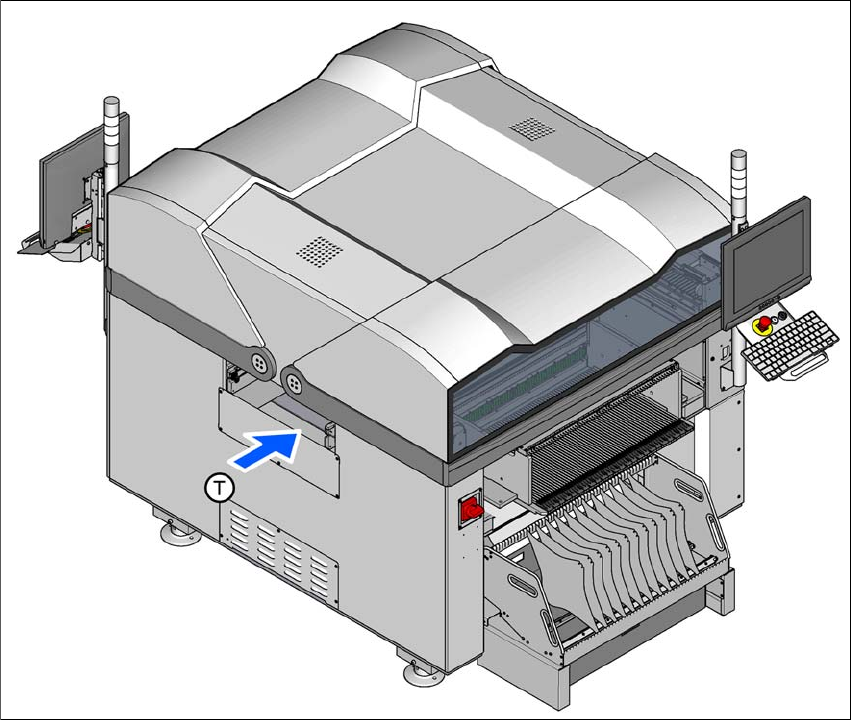

Fig. 1.1 - 2 Single sided E by SIPLACE placement machine with fixed table on location 1
(T) Direction of PCB transport
User manual E by SIPLACE 1 Introduction
From software version SC 712.1 Edition 05/2019 1.1 Single sided E by SIPLACE
17
The E by SIPLACE placement machines demonstrate
– High precision
– Placement performance up to the high end process range
– A wide ranging component range from 01005 components to a size of 200 mm x 110 mm.
Following placement methods are possible for processing the components:
– Collect&Place and
– Pick&Place
The E by SIPLACE placement machine consists one gantry. For an overview of the placement
head configuration, refer to section 3.1.1
from page 101.
These can be quickly and accurately positioned by linear motors, moving independently of one
another in the X and Y directions.
The E by SIPLACE machine supports the SIPLACE single conveyor.
There is a fixed table available on location 1 for supplying components. On location 2 is no table
for supplying components.
1 Introduction User manual E by SIPLACE
1.2 Double sided E by SIPLACE From software version SC 712.1 Edition 05/2019
18
1.2 Double sided E by SIPLACE
1.2.1 E by SIPLACE with fixed table
1
Fig. 1.2 - 1 Double sided E by SIPLACE placement machine with fixed table on location 1 (Example)
(T) Direction of PCB transport
