4 Setting up and commissioning User manual E by SIPLACE 4.3 Setting up the machine From software version SC 712.1 Editio n 05/2019 192 4 Fig. 4.3 - 4 Machine feet on conveyor height 950 block (1) Conveyor height 950 bloc…
User manual E by SIPLACE 4 Setting up and commissioning
From software version SC 712.1 Edition 05/2019 4.3 Setting up the machine
191
4.3.6.1 Conveyor height 950 (Option)
Item no. 03111069-xx Conveyor height 950 block
4

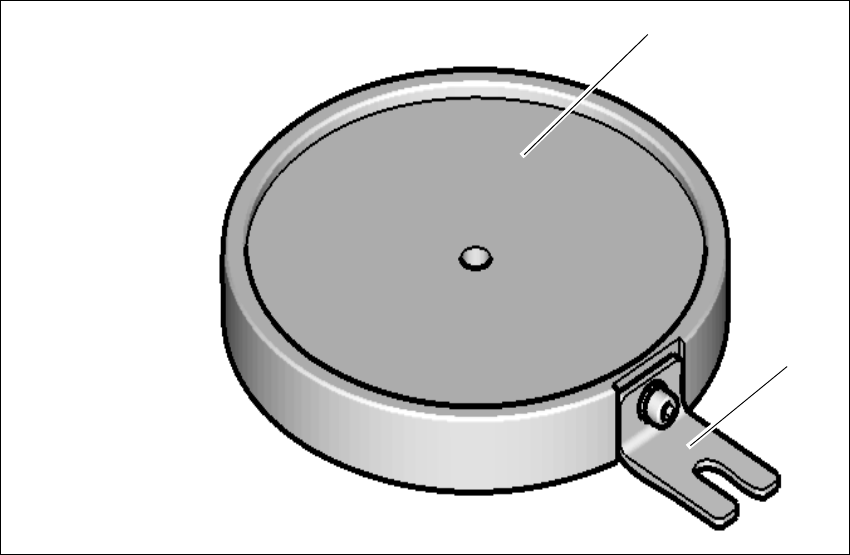

Fig. 4.3 - 3 Conveyor height 950 block
(1) Block
(2) Bracket
(1)
(2)
4 Setting up and commissioning User manual E by SIPLACE
4.3 Setting up the machine From software version SC 712.1 Edition 05/2019
192
4
Fig. 4.3 - 4 Machine feet on conveyor height 950 block
(1) Conveyor height 950 block
(2) Bracket for additional securing to the machine floor
(3) Machine feet
4
Push the forks of the pallet jack under the machine. See also 4.3.2, on page 186.
With the pallet jack, raise the machine.
Place the four blocks (1) below the four machine feet.
With the pallet jack carefully lower the machine.
Align the machine feet within the circular step of these blocks and place the machine onto
these blocks (1).
Align the machine in the X and Y direction with the machine spirit level.
4
Secure the block with the bracket to the machine floor if necessary.
WARNING
Risk of injuries!
There is a risk of injury during assembly work to the underside of the machine!
Secure the machine using suitable measures. The pallet jack must not be used as
the only support.
Take care that your hands and feet can not be hit.
PLEASE NOTE
For a description of how to align the machine in the X and Y directions, refer to the section
4.3.7
, page 193.
(1)
(3)
(2)
User manual E by SIPLACE 4 Setting up and commissioning
From software version SC 712.1 Edition 05/2019 4.3 Setting up the machine
193
4.3.7 Aligning the machine
Measurement is performed at the non clamped lifting table.
Observe the general warnings in section 4.3.1, page 185.
Observe the warnings for transportation of the machine in section 4.3.2, page 186.
For details of tools and equipment, refer to section 4.3.5, page 188.
4

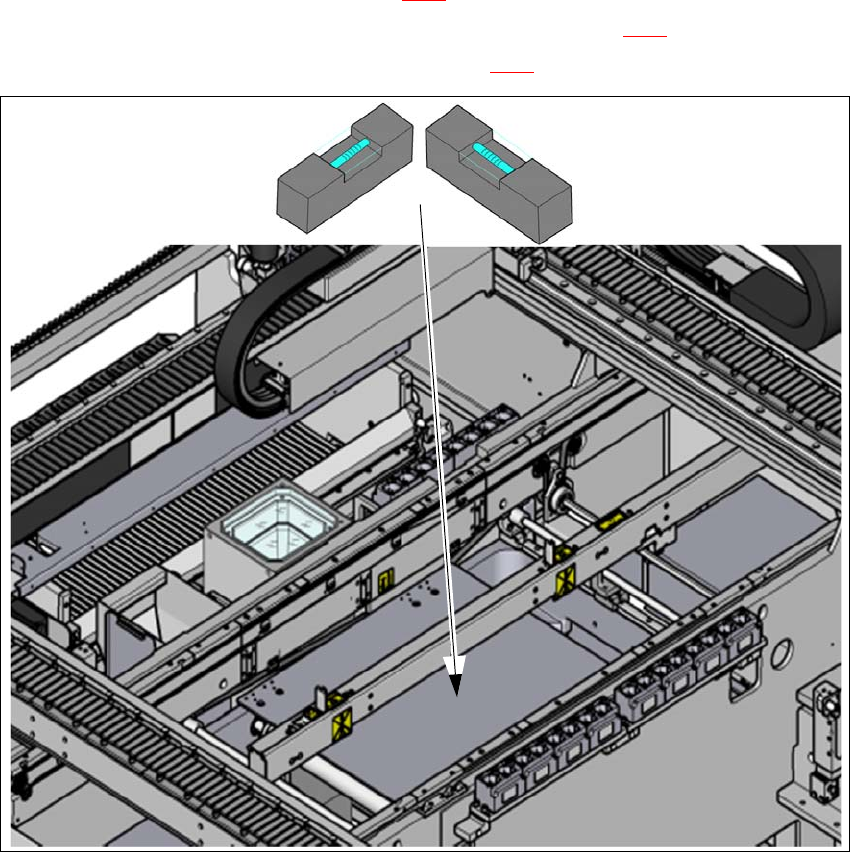

Fig. 4.3 - 5 Adjusting the machine in the X and Y directions - measurement procedure
Place the machine spirit level (measuring accuracy of 0.02 mm) onto the non clamped lifting
table and measure the X and Y directions (1).
Align the machine in the Y direction. The measuring tolerance is 0.10 mm.
Align the machine in the X direction. The measuring tolerance is 0.10 mm.
Check the load-bearing strength of the 4 machine feet. The 4 machine feet must touch the
ground and be evenly loaded.
Tighten the machine feet at the clamping screw to a torque of 120 Nm.
(1)
