User manual E by SIPLACE 5 Working with the machine
From software version SC 712.1 Edition 05/2019 5.1 Staff profiles
201
5.1.2 Operator level "Advanced production"
5.1.2.1 Tasks
Customers should be given the activity level Advanced production to perform the following tasks:
– Acting as a contact for the operators
– Maintaining the machine log book
– Monitoring and carrying out cleaning and checking at the specified intervals
– Monitoring the workplace to ensure that it is clean and safe
– Monitoring conformity with ESD regulations
– Carrying out quality control
– Following up and reporting fault messages
– Making sure that errors have been eliminated
– Providing all materials required to produce the job in a timely manner, such as
–PCBs
– Splicing materials
– Soldering paste
– Components
– Feeder modules, etc.
– Setting up the station for a new production batch
– Checking the feeder module settings:
– Feeder pitch
– Pickup position
– Checking the management data
– Data maintenance
– Data backup
– Preparing CAD files
– Creating and calibrating vision data (teaching)
– Performing the SIPLACE Station Programming
5 Working with the machine User manual E by SIPLACE
5.1 Staff profiles From software version SC 712.1 Edition 05/2019
202
5.1.3 Activity level "Machine service"
5.1.3.1 Tasks
Customers should be given the activity level Machine service to perform the following tasks:
– Mounting replacement parts
– Editing machine data
– Changing machine options
– Calibrating the machine
– Test bench inspection
User manual E by SIPLACE 5 Working with the machine
From software version SC 712.1 Edition 05/2019 5.2 Controls and displays
203
5.2 Controls and displays
5.2.1 Overview
5

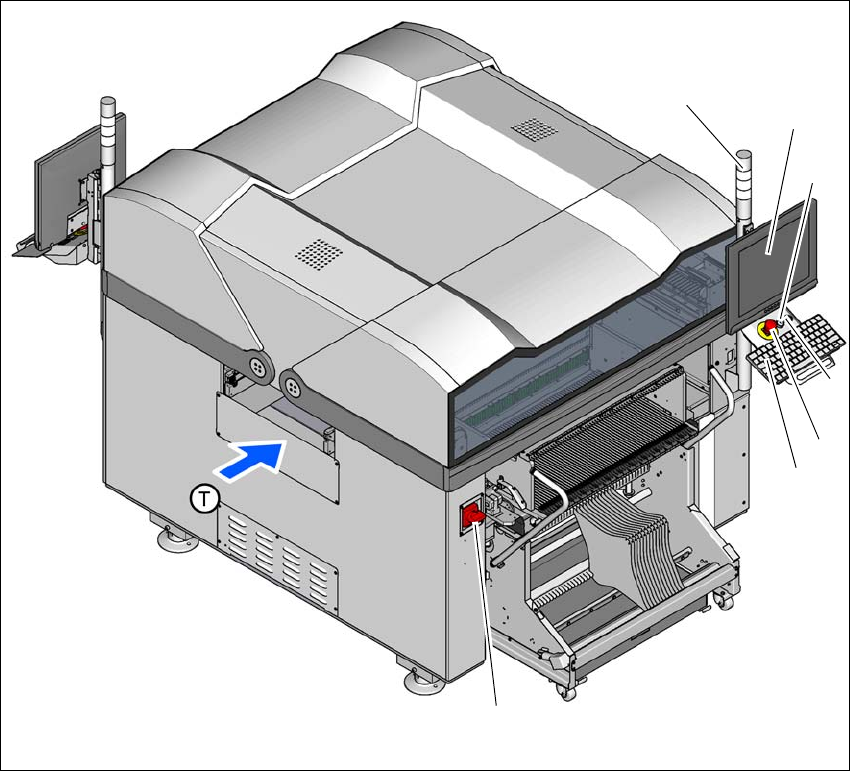

Fig. 5.2 - 1 Controls and displays
5
(1) Main switch (5) Stop button (black)
(2) Start button (white) (6) LCD touchscreen
(3) EMERGENCY STOP button (7) Indicator lamps with buzzer
(4) Keyboard (T) Direction of PCB transport
(1)
(4)
(3)
(2)
(6)
(7)
(5)
