5.9.2 Safety instructions for emptying the waste tape container
5
Fig. 5.9 - 1 Safety instructions for emptying the waste tape container
(1) Handle
(2) Waste tape container
The waste tape container must be pulled out of the changeover table for emptying. There is a risk
of catching your fingers as you do so.
To avoid this risk, hold the waste tape container with your fingers in the handle
(item 1).
Do NOT put your fingers in the gap between the tape container and waste tape container as
you could catch your fingers if you do.
(1)
(2)
User manual E by SIPLACE 5 Working with the machine
From software version SC 712.1 Edition 05/2019 5.10 Carrying out a sight check
229
5.10 Carrying out a sight check
5.10.1 Checking the SIPLACE SmartFeeder E
5

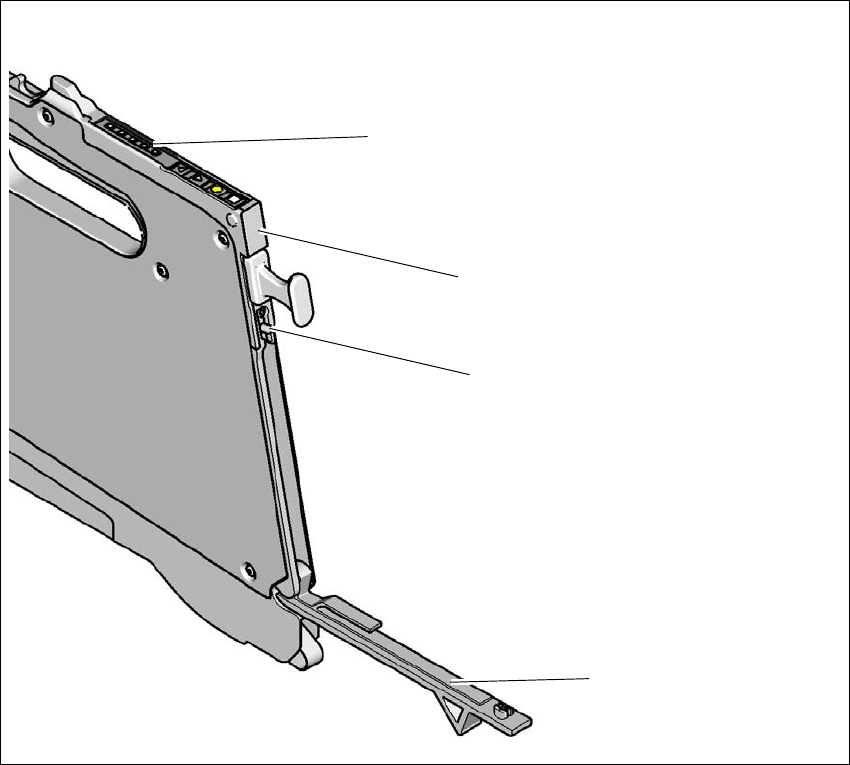

Fig. 5.10 - 1 Checking the SIPLACE SmartFeeder E (example of 8 mm E shown)
(1) Flap
(2) Blade
(3) Status display
(4) LED display
5
Check to see whether the tape foil removal container for the SIPLACE SmartFeeder E is full.
Open the flap (item 1). Pull out the cover foil and cut it with scissors or on the integral blade
(item 2) on 8 and 12 mm SIPLACE SmartFeeder E.
5
(1)
(2)
(3)
(4)
5 Working with the machine User manual E by SIPLACE
5.10 Carrying out a sight check From software version SC 712.1 Edition 05/2019
230
5
Check the multicolor status display.
– If it lights up green, the feeder module is on standby.
– If it lights up orange, it is signaling a warning. The LEDs shine accordingly.
– If the status display lights up red, a malfunction has occurred. The LEDs shine accord-
ingly.
A list of the LED and status displays on the SmartFeeder operator panel is given in sec-
tion 5.12.1
, page 243. 5
If the status display is off, the cause may be as follows: 5
– The feeder module is not in the current setup.
– The feeder module is defective.
– The feeder module has been disabled (due to a drop in pressure, for example)
5.10.2 Splicing the tapes in good time
5
5
CAUTION
Problems with cover foil withdrawal!
If the cover foil tears, this could lead to problems with the cover foil withdrawal.
There is an integral blade (item 2) for easily cutting the on the 8 and 12 mm SIPLACE
SmartFeeder E.
PLEASE NOTE
Late splicing of tapes
Late splicing of tapes can lead to prolonged down times.
Splice the tapes early enough so that the feeder modules do not run out of compo-
nents.
PLEASE NOTE
Early splicing of tapes
Early splicing of tapes can have the following consequence: when the old tape is rolled up
onto the new reel, the new reel could become too full and the tape will slide off it and get
caught up. This will again result in pick-up errors and prolonged down times.
Splice the tapes at the right time so that the old and new tapes do not get caught.
