5 Working with the machine User manual E by SIPLACE 5.11 Setting up the feeder modules From software version SC 712.1 Edition 05/2019 236  Close the pickup window (item 2) , by returning the lever (item 3) to its origin…

User manual E by SIPLACE 5 Working with the machine

From software version SC 712.1 Edition 05/2019 5.11 Setting up the feeder modules

235

5.11.3 Using the SIPLACE SmartFeeder E

5.11.3.1 Check the SIPLACE SmartFeeder E before using it

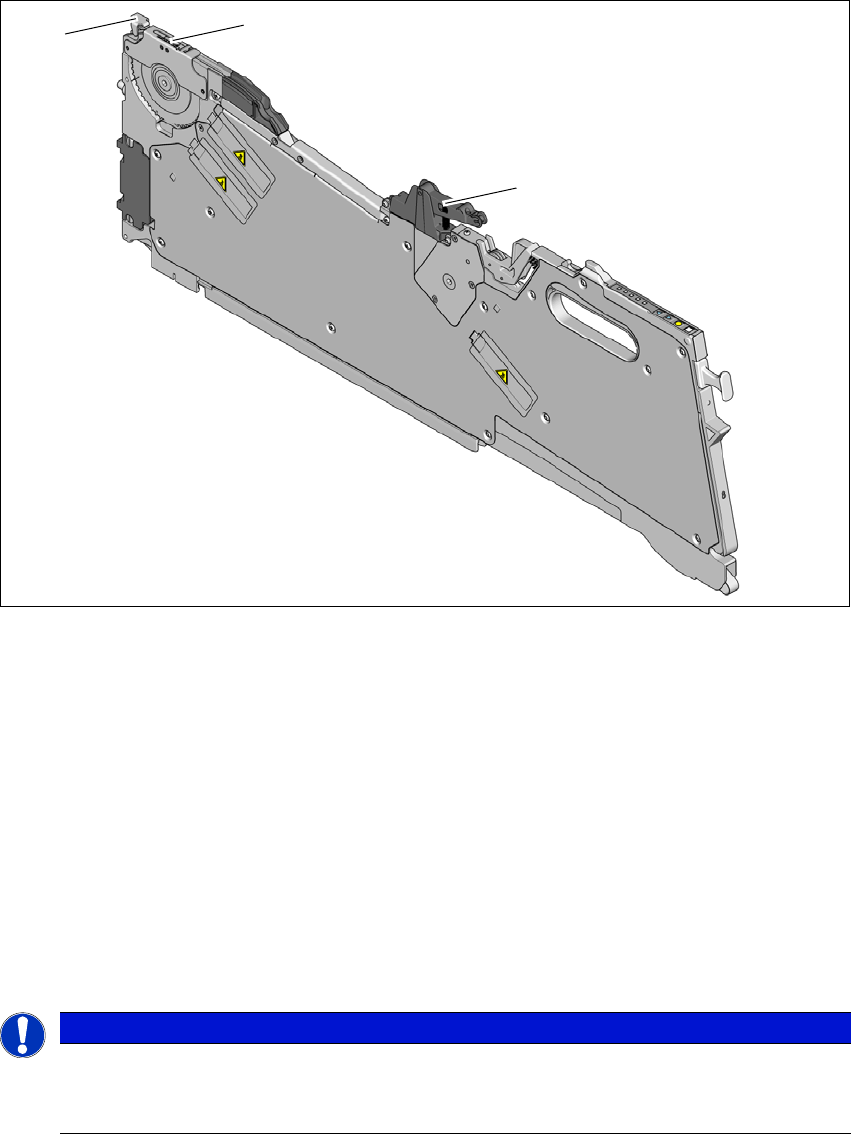

Fig. 5.11 - 2 Check the SIPLACE SmartFeeder E before using it

(1) Cover foil rocker

(2) Pickup window

(3) Lever for raising and latching the pick-up window

Check the following points before you use a feeder module on the changeover table:

 The feeder module must be in perfect condition.

 Tap the cover foil rocker (item 1) lightly to make sure that it has not jammed.

 Check that the area around the pickup window (item 2) is free from loose components.

 Press the lever (item 3) forward slightly to open the pickup window (item 2). This will raise the

pick-up window slightly.

PLEASE NOTE

The tensioned cover foil continues to transport the tape when the tape has been inserted

and exposes the components.

 Do not press the lever if a component tape is inserted.

(1)

(2)

(3)

5 Working with the machine User manual E by SIPLACE

5.11 Setting up the feeder modules From software version SC 712.1 Edition 05/2019

236

 Close the pickup window (item 2), by returning the lever (item 3) to its original position.

 Remove loose components from the changeover table with a brush or use a vacuum

cleaner with appropriate nozzle.

PLEASE NOTE

 If the component tape is already inserted, cut it off flush with the front edge of the

feeder module.

User manual E by SIPLACE 5 Working with the machine

From software version SC 712.1 Edition 05/2019 5.11 Setting up the feeder modules

237

5.11.3.2 Inserting the SIPLACE SmartFeeder E into the changeover table

Fig. 5.11 - 3 Inserting the SIPLACE SmartFeeder E into the changeover table

(1) Front slider guide for the feeder module

(2) Back slider guide for the feeder module

(3) Latch on the feeder module

(4) "Front" centering pin on the feeder module

(5) Recesses in the feeder locking bar for latch locking mechanism

(6) Centering bar

(7) Guide profile for the changeover table

(8) Insertion aid for the feeder module

(9) Stop Bar

 Place the front slider guide (item 1) of the feeder module on the insertion aid (item 8).

 Hold the feeder module vertically and push it forward, along the guide profile (item 7). The

front (item 1) and rear (item 2) slider guides of the feeder module slide on the guide profile

(item 7).

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)
