6.1.2.3 Position of nozzle changer for the SIPLACE TH
6
Fig. 6.1 - 8 Position of nozzle changer for the SIPLACE TH - example
6
(1) Changeover table on location 1
(2) Changeover table on location 2
(NC) Nozzle changer
(RB) Reject bin
(PA) Placement area
(GA) Gantry
(2)
(1)
6 Station extensions User manual E by SIPLACE
6.1 Nozzle changer From software version SC 712.1 Edition 05/2019
268
6.1.2.4 Assembly
In E by SIPLACE machines, the nozzle changers are installed on the machine frame.
6

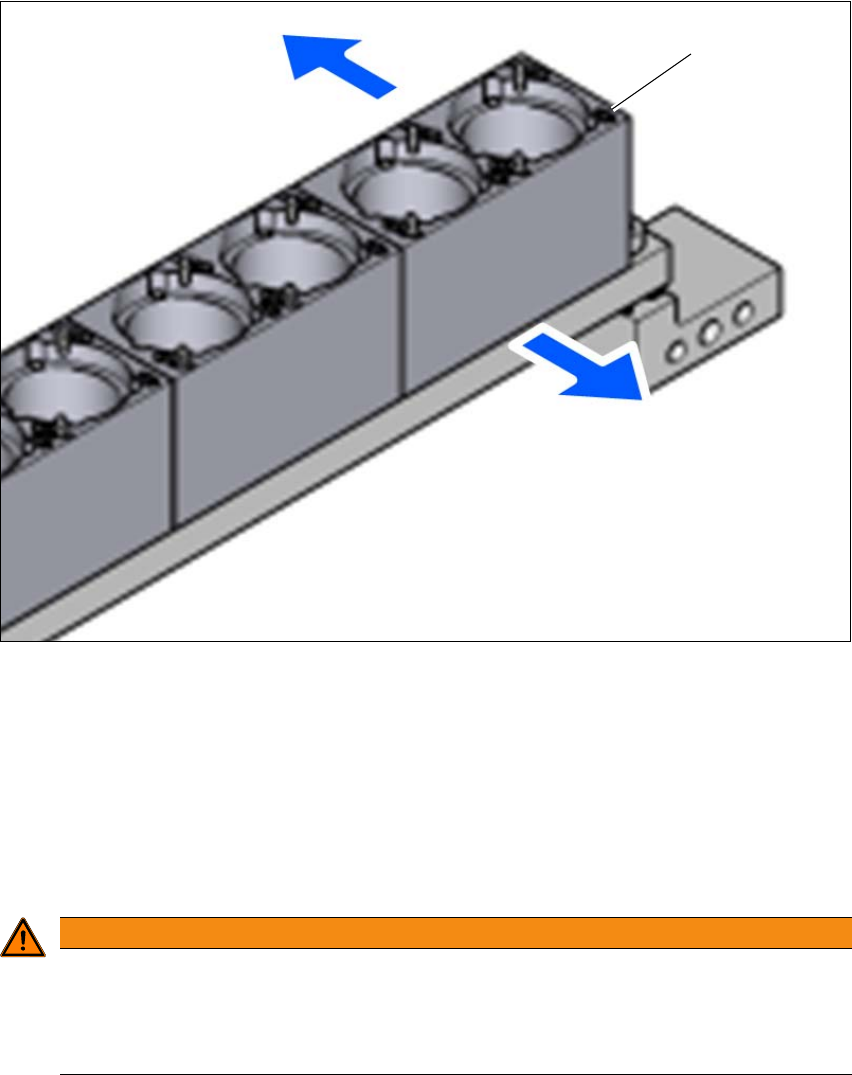

Fig. 6.1 - 9 Assembly position
(1) Marking hole
(2) Arrow pointing toward the PCB conveyor
(3) Operator side
6
Align the nozzle changer so that the marking hole (item 1) is on the left, as viewed by the op-
erator.
6
6
WARNING
Risk of head crashes with mixed configurations!
There is a risk of head crashes with mixed configurations.
Only install the associated nozzle changer for each placement head, with the nozzle
magazines for the respective placement head.
(1)
(3)
(2)
User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.1 Nozzle changer
269
6.1.2.5 Component reject bin for the SIPLACE TH
A component reject bin can be installed for the SIPLACE TH. This is positioned next to the fine
pitch Vision module.
6.1.2.6 Grippers and special nozzles
The SIPLACE machines can process components based on through hole technology and odd-
shaped (OSC) components, in addition to the standard SMT spectrum. ASM also continuously de-
velops special nozzles and grippers.
Special nozzles are available for all placement heads in order to process placement jobs with
maximum speed, precision and flexibility. The use of automatic nozzle changers also reduces the
setup times that occur at a product change.
ASM can provide mechanical grippers for the SIPLACE TH/SIPLACE PP. If a component's sur-
face is not suitable for sucking up with nozzles, then it can be picked up and placed with mechan-
ical grippers. There are two types of gripper and their functions can be divided into two groups:
– Grippers that grip the component at its outer edges and
– Grippers that grip the component at its inner edge.
Information on special nozzles and grippers is available from ASM. For the production of special
magazines and grippers, again contact ASM.
