6 Station extensions User manual E by SIPLACE 6.1 Nozzle changer From software version SC 712.1 Edition 05/201 9 272 6.1.3.2 Technical data 6 Nozzle changer for the SIPLACE CP12 Number of nozzle holders 48 Number of nozz…
User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.1 Nozzle changer
271
6

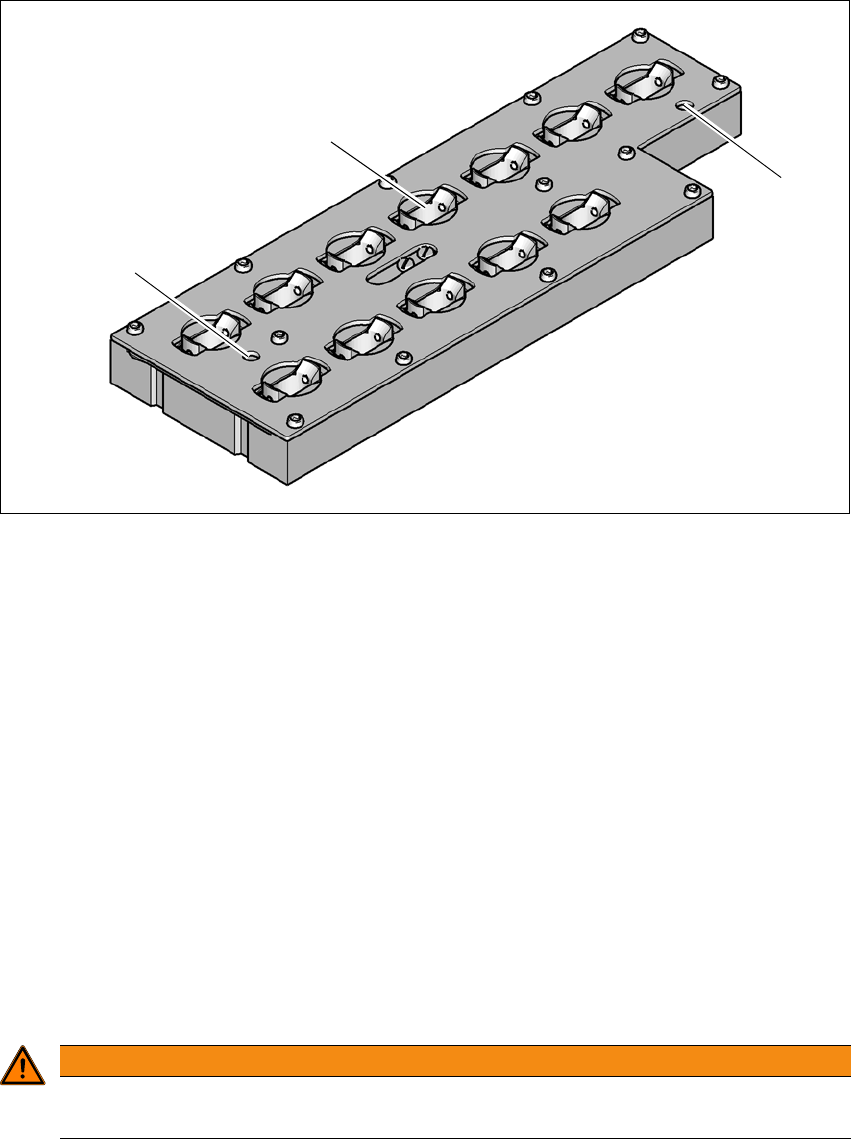

Fig. 6.1 - 11 Nozzle magazin for the SIPLACE CP12
(1) 12 garages for 30xx nozzles
(2) Fiducials (only visible when locking plate open)
6.1.3.1 Description
This nozzle changer can accommodate 4 magazines, each with 12 nozzle garages.
The magazines are seated on a common support. They are centered with two parallel pins and
fixed in place with 4 push buttons. The exact position is determined with two fiducials on each
magazine. The correct seat of the magazines on the basic nozzle changer body is monitored by
micro switches, to prevent a collision of the placement head with any magazines projecting up-
wards. All magazine locations must be filled since the safety circuit stops the machine in response
to missing magazines or magazines that are not seated correctly.
At the installed nozzle station, components can be blown off the nozzles of the SIPLACE CP12
and nozzles stripped off and rejected.
6
(1)
(2)
(2)
WARNING
The magazine for the SIPLACE CP12 may only be used together with the SIPLACE
CP12.
6 Station extensions User manual E by SIPLACE
6.1 Nozzle changer From software version SC 712.1 Edition 05/2019
272
6.1.3.2 Technical data
6
Nozzle changer for the SIPLACE CP12
Number of nozzle holders 48
Number of nozzle magazines 4
Nozzle types 30xx
Nozzle changeover time Approx. 2s per nozzle
Compressed air connection 0.45 MPa (4.5 bar)
User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.1 Nozzle changer
273
6.1.3.3 Position of nozzle changer for the SIPLACE CP12
6

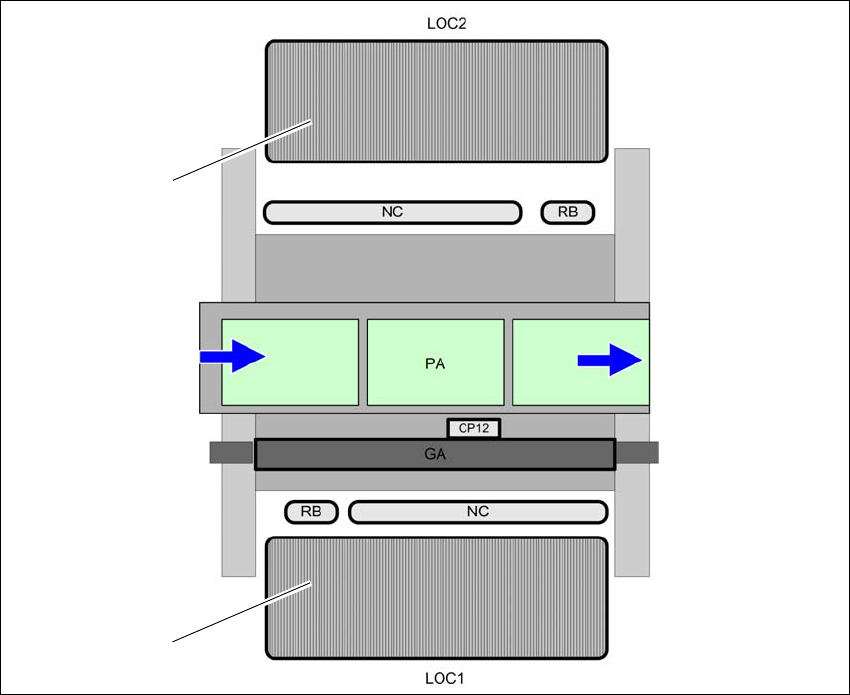

Fig. 6.1 - 12 Position of nozzle changer for the SIPLACE CP12 - example
6
(1) Changeover table on location 1
(2) Changeover table on location 2
(NC) Nozzle changer
(RB) Reject bin
(PA) Placement area
(GA) Gantry
(2)
(1)
