User manual E by SIPLACE 6 Station extensions From software version SC 712.1 Edition 05/2019 6.1 Nozzle change r 281 6.1.4.2 Technical data 6 Nozzle changer for the SIPLACE CP6 Number of n ozzle holders 38xx 39xx 24 48 N…
6 Station extensions User manual E by SIPLACE
6.1 Nozzle changer From software version SC 712.1 Edition 05/2019
280
6
Fig. 6.1 - 17 Nozzle magazin for the SIPLACE CP6
(1) 12 garages for 39xx nozzles
(2) Fiducials (only visible when locking plate open)
(1)
(2)
(2)
User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.1 Nozzle changer
281
6.1.4.2 Technical data
6
Nozzle changer for the SIPLACE CP6
Number of nozzle holders
38xx
39xx
24
48
Number of nozzle magazines 4
Nozzle types 38xx/39xx
Nozzle changeover time Approx. 2s per nozzle
Compressed air connection 0.45 MPa (4.5 bar)
6 Station extensions User manual E by SIPLACE
6.1 Nozzle changer From software version SC 712.1 Edition 05/2019
282
6.1.4.3 Position of nozzle changer for the SIPLACE CP6
6

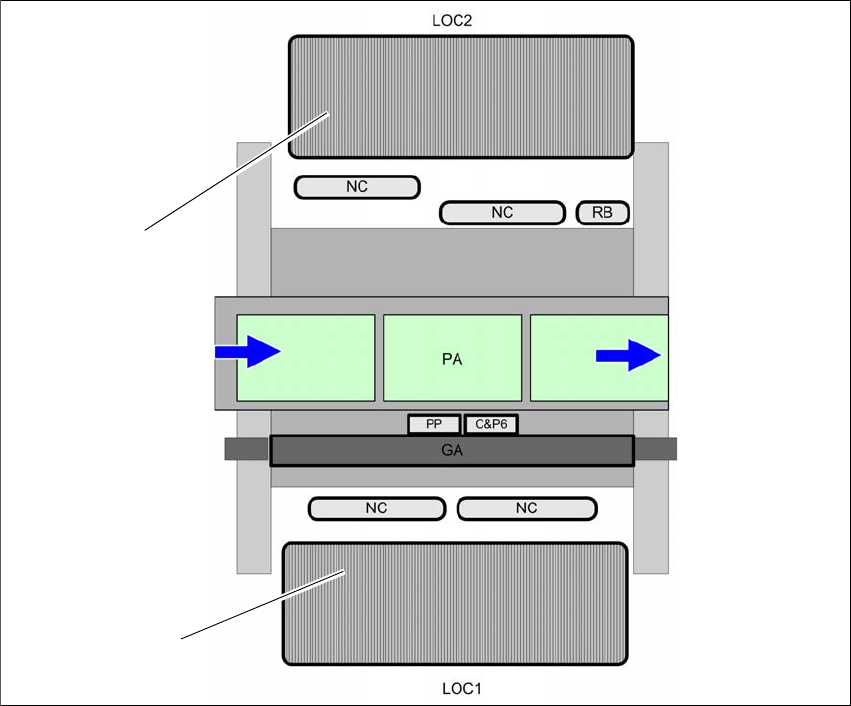

Fig. 6.1 - 18 Position of nozzle changer for the SIPLACE CP6 - example
(1) Changeover table on location 1
(2) Changeover table on location 2
(NC) Nozzle changer
(RB) Reject bin
(PA) Placement area
(GA) Gantry
(2)
(1)
