Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
PLEASE NOTE
6
Before inserting, align the magazine so that the centering pins (items 2 and 6 in fig.
6.1 - 5, page 262) slide into the centering holes and slot.
User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.2 Operator panel (HMI) on location 2
287
6.2 Operator panel (HMI) on location 2
Item no. 03113590Sxx Human-Machine-Interface, loc2
For machines with only one operator panel (HMI) on location 1, you can retrofit an additional HMI
to location 2.
6
Fig. 6.2 - 1 Operator panel (HMI) on location 2
(1) Operator panel (HMI) on location 2
(T) Direction of PCB transport
(1)
6 Station extensions User manual E by SIPLACE
6.3 SIPLACE JTF-MW From software version SC 712.1 Edition 05/2019
288
6.3 SIPLACE JTF-MW
Item no. 03118894Sxx SIPLACE JTF-MW
Item no. 03126378Sxx JTF-MW Accessories Kit (for option) only
6

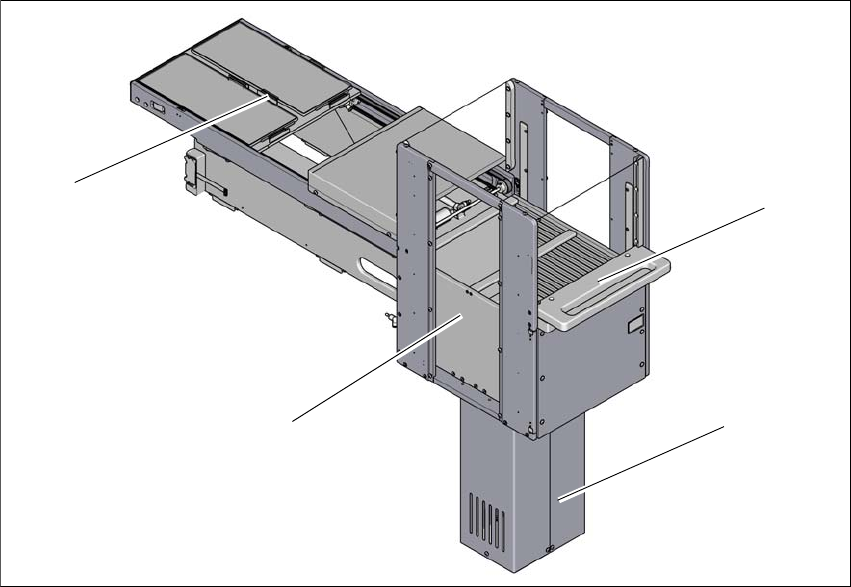

Fig. 6.3 - 1 SIPLACE JTF-MW
(1) Lifting motor cover
(2) Feed pusher assy
(3) Conveyor
(4) Tower module with magazine
6.3.1 Description
The SIPLACE JTF-MW is an automatic and fast changer for standard JEDEC waffle pack trays.
On E by SIPLACE machines, a JTF-MW tray feeder can be installed on a changeover table or on
a fixed table. The JTF-MW can be remove with the changeover table for quick change over.
The SIPLACE JTF-MW occupies a fixed area of tracks on the changeover table / fixed table.
– SIPLACE JTF-MW
(2)
(1)
(3)
(4)
