User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.6 Long board option (LBO)
301
6.6 Long board option (LBO)
The "Long board" option allows you to place boards which exceed the specified board length. LBO
license need to be purchase.
Item no. 03108019-xx LBO E, 1030 Right
Item no. 03110518-xx LBO E, 1200 Right
Item no. 03110458-xx LBO E, 1030Left
Item no. 03110459-xx LBO E, 1200 Left
6 Station extensions User manual E by SIPLACE
6.7 Adjustable conveyor clamping From software version SC 712.1 Edition 05/2019
302
6.7 Adjustable conveyor clamping
Item no. 03123019-xx Adjustable Stop Guide Rail E
The adjustable conveyor clamping is designed to cater for standard E conveyor up to 460 x 460
to handle PCB with fiducials near the edge. Top clamping are adjustable so customer can fix any-
where to avoid PCB fiducials.
This option can be used on the following conveyor part numbers:
Item no. 03108391-xx Fixed Conveyor Rail Right E 6
Item no. 03110457-xx Fixed Conveyor Rail Left E 6
6

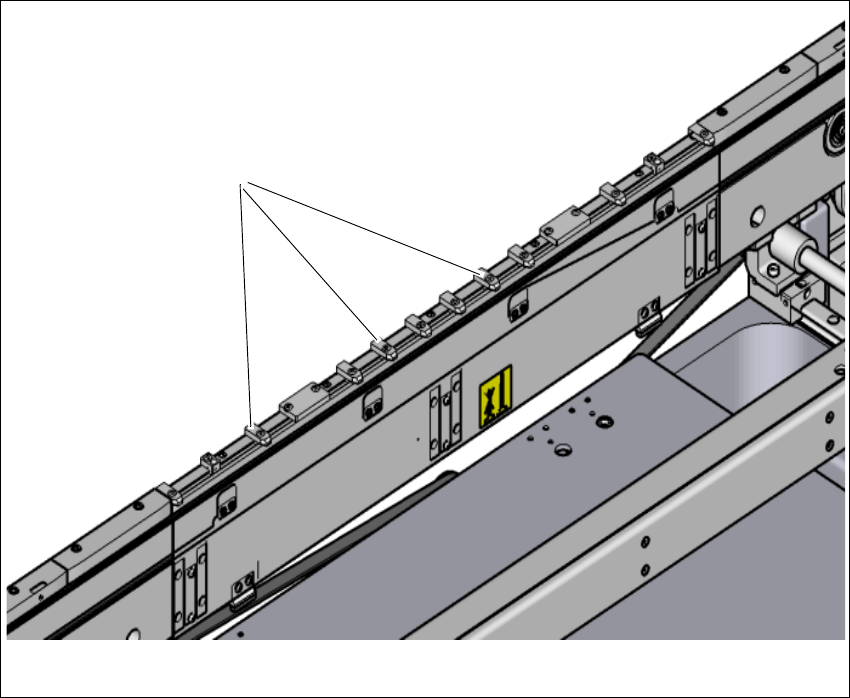

Fig. 6.7 - 1 Adjustable conveyor clamping
(1) Adjustable Stop Guide Rail E
(1)
(1)
User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.7 Adjustable conveyor clamping
303
6
Fig. 6.7 - 2 Adjustable conveyor clamping - Operation Instruction
Loosen the screws (1) to adjust the locations of these stop guides. Then tighten back the
screws when the positions are fixed by the user.
(1)
(1)
