6 Station extensions User manual E by SIPLACE
6.8 SIPLACE Preparation Table E From software version SC 712.1 Edition 05/2019
304
6.8 SIPLACE Preparation Table E
Item no. 03112358-xx SIPLACE Preparation Table E
The SIPLACE Preparation Table E can hold a maximum of 60x SIPLACE SmartFeeder 8 mm E-
with component reel (size 7”, 10”, 13”, 15” & 17”). Feeders can be placed from the top or slid along
the extruded guide profiles. Align each feeder by inserting feeder stop pin into the slots of the
guide plate. SIPLACE Preparation Table E allows the SIPLACE PowerAdaptor E (see section 6.9
on page 305) to be attached and detached without tools.
6

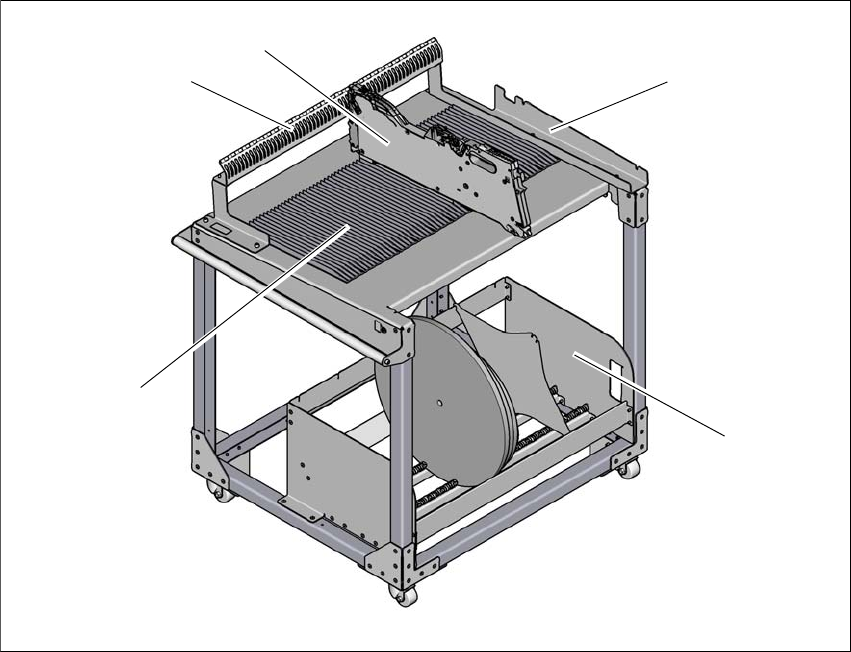

Fig. 6.8 - 1 SIPLACE Preparation Table E
(1) Guide profile
(2) Feeder parking unit
(3) SIPLACE SmartFeeder E
(4) Mounting interface for SIPLACE Power Adapter E (Optional)
(5) Tape reel container
(4)
(3)
(2)
(5)
(1)
User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.9 SIPLACE Power Adapter E
305
6.9 SIPLACE Power Adapter E
Item no. 03113102-xx SIPLACE Power Adapter E
The SIPLACE Power Adapter E allows SIPLACE SmartFeeder E to be used outside the machine
and setup area. The SIPLACE Power Adapter E can be used as a standalone or attached to SI-
PLACE Preparation Table E (see section 6.8 on page 304).
6
Fig. 6.9 - 1 SIPLACE Power Adapter E
6 Station extensions User manual E by SIPLACE
6.9 SIPLACE Power Adapter E From software version SC 712.1 Edition 05/2019
306
Fig. 6.9 - 2 Attach the SIPLACE Preparation Table E to the SIPLACE Preparation Table E
Attach the SIPLACE Power Adapter E to the preparation table through these 3 locating fea-
tures (1).
The Holder (2) for tape reel is detachable during transportation or when not in use. 6
(2)
(1)
