2.2 Warning labels
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant
to water and weathering.
2.2.1 Warning labels on the machine

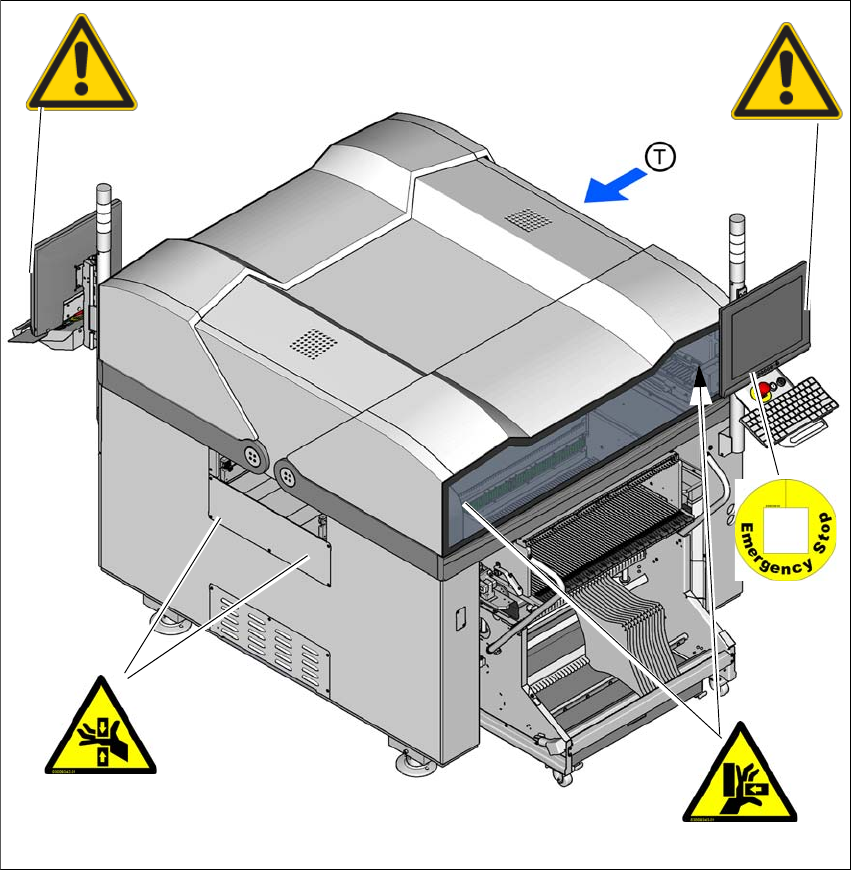

Fig. 2.2 - 1 Warning labels on the machine (double sided)- location 1
– W201, item no. 03009338-01
– W203, item no. 03009342-01
– W204, item no. 03009343-01
– W209, item no. 03009349-01
– W 810, item no. 03112319-01
– W Laser Class 2, item no. 03134118-01
– W-General warning, label on the monitor from supplier
(T) Direction of PCB transport
W 203
W 209
W 204
W 201
W 810
W-General warning
W-General warning
W Laser Class 2
2 Operational safety User manual E by SIPLACE
2.2 Warning labels From software version SC 712.1 Edition 05/2019
42

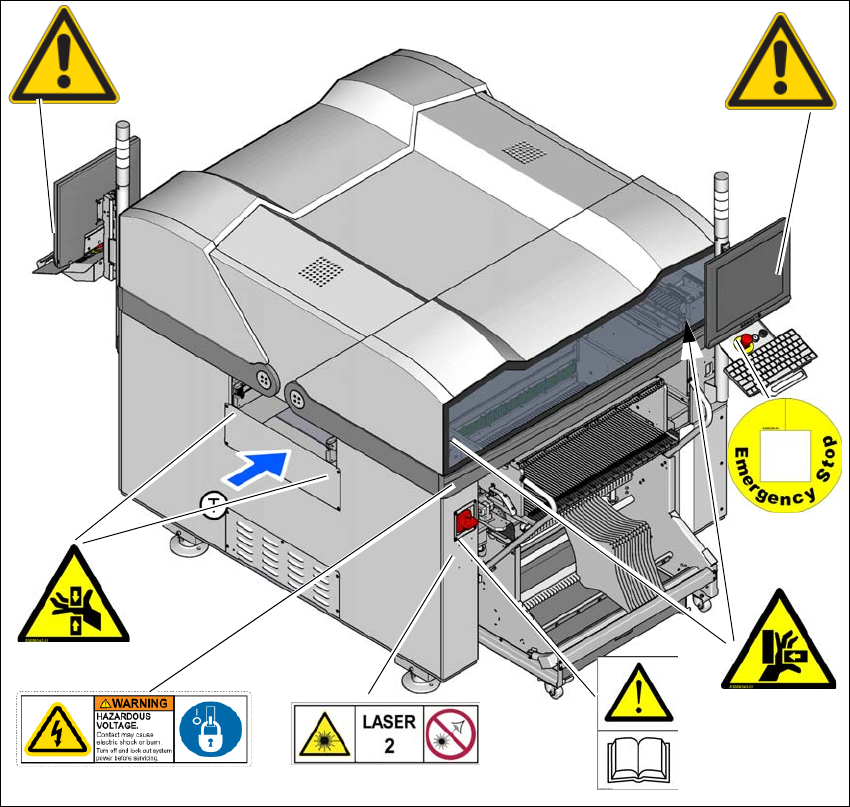

Fig. 2.2 - 2 Warning labels on the machine (double sided) - location 2
– W203, item no. 03009342-01
– W204, item no. 03009343-01
– W209, item no. 03009349-01
– W-General warning, label on the monitor from supplier
(T) Direction of PCB transport
W 209
W 204
W 203
W-General warning
W-General warning
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.2 Warning labels
43

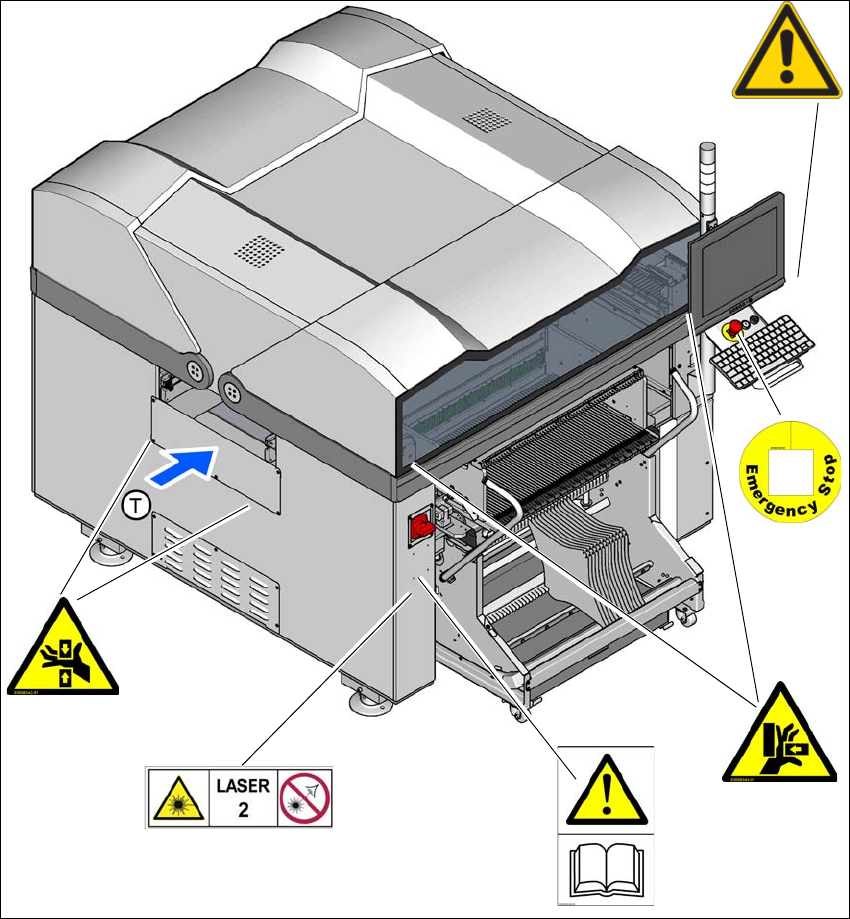

Fig. 2.2 - 3 Warning labels on the machine (single sided) - location 1
– W201, item no. 03009338-01
– W203, item no. 03009342-01
– W204, item no. 03009343-01
– W209, item no. 03009349-01
– W Laser Class 2, item no. 03134118-01
– W-General warning, label on the monitor from supplier
(T) Direction of PCB transport
W 209
W 204
W 203
W-General warning
W 201
W Laser Class 2
