User manual E by SIPLACE 2 Operational safety From software version SC 712.1 Edition 05/2019 2.2 Warning labels 47 2.2.1.5 Warning label EMS (China) 2 Warning label EMS (China ) in fig. 2.2 - 4 , page 44 item no. 0311352…
2 Operational safety User manual E by SIPLACE
2.2 Warning labels From software version SC 712.1 Edition 05/2019
46
2.2.1.3 Warning label W 81
2
Warning label W 81 in fig. 2.2 - 1, page 41, item no. 03112319-01
Quantity per machine:
E by SIPLACE double sided: 1 2
E by SIPLACE single sided: 1 2
2.2.1.4 Warning label W 209
2
W 209 in fig. 2.2 - 1, page 41, 2.2 - 2, page 42 and 2.2 - 3, page 43, item no. 03009349-01
Quantity per machine:
E by SIPLACE double sided: 2 2
E by SIPLACE single sided: 1 2
HAZARDOUS VOLTAGE
Contact may cause electric shock or burn.
Turn off and lock out system power before
servicing.
2
2
2
2
2
2
Warning label on the EMERGENCY STOP button.
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.2 Warning labels
47
2.2.1.5 Warning label EMS (China)
2
Warning label EMS (China) in fig. 2.2 - 4, page 44 item no. 03113523-01
Quantity per machine:
E by SIPLACE double sided: None 2
E by SIPLACE single sided: One on location 2 2
2.2.1.6 Warning label EMS (US)
2
Warning label EMS (US) in fig. 2.2 - 4, page 44 item no. 03113900-01
Quantity per machine:
E by SIPLACE double sided: None 2
E by SIPLACE single sided: One on location 2 2
2
2
2
2
2
2
2
2
2
2
2
2

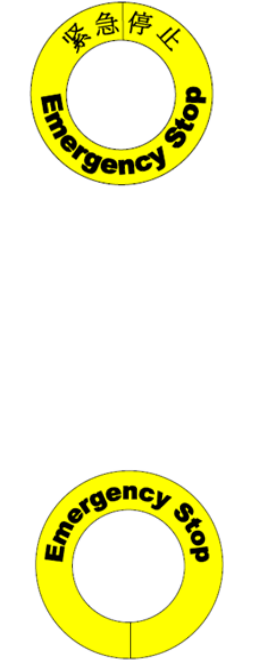

Warning label on the EMERGENCY STOP button on location 1
and 2 for single sided machines. For China.
2
2
2
Warning label on the EMERGENCY STOP button on location 1
and 2 for single sided machines. For Australia, Canada, Mexico
and USA.
2 Operational safety User manual E by SIPLACE
2.2 Warning labels From software version SC 712.1 Edition 05/2019
48
2.2.1.7 Warning label W203
2
W203 in fig. 2.2 - 1, page 41 and 2.2 - 2, page 42, item no. 03009342-01
Quantity per machine:
E by SIPLACE double sided: 4 2
E by SIPLACE single sided: 4 2
2.2.1.8 Warning label W204
2
W204 in fig. 2.2 - 1, page 41 and 2.2 - 2, page 42, item no. 03009343-01
Quantity per machine:
E by SIPLACE double sided: 4 2
E by SIPLACE single sided: 4 2
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the machine while it is running!
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the machine while it is running
