User manual E by SIPLACE 2 Operational safety From software version SC 712.1 Edition 05/2019 2.2 Warning labels 57 2.2.4 Warning label W2 05 on the tape cutter 2 Fig. 2.2 - 9 Warning label W205 on the top of the tape cut…
2 Operational safety User manual E by SIPLACE
2.2 Warning labels From software version SC 712.1 Edition 05/2019
56
2.2.3 Warning label on the changeover table insert

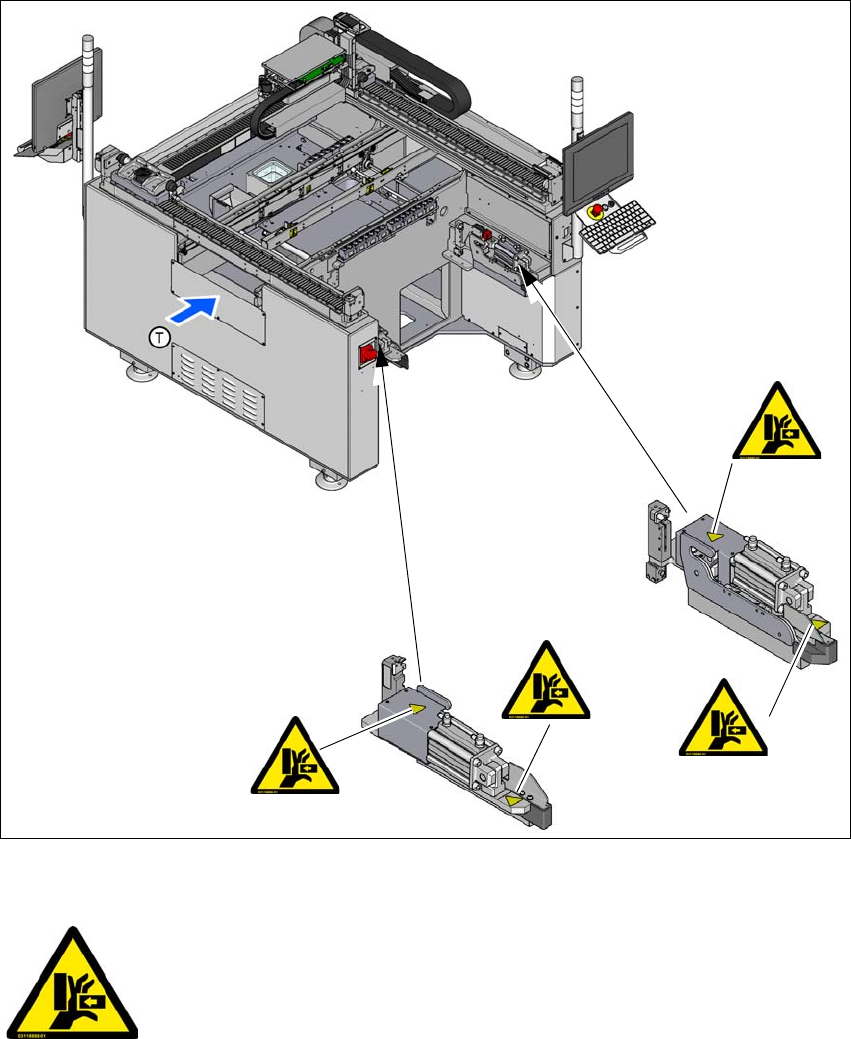

Fig. 2.2 - 8 Warning labels on the changeover table insert
In fig. 2.2 - 8, page 56, hand crushing label, item no. 03118888-01 (2 labels on the left side and 2
labels on the right side).
Hand crushing
Hand crushing
Hand crushing
Hand crushing
2
RISK OF HAND CRUSHING!
Docking in and docking out the changeover table can result into crushing of
hands.
Docking in and docking out the changeover table.
Observe the description in Section 5.16 on page 250.
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.2 Warning labels
57
2.2.4 Warning label W205 on the tape cutter
2

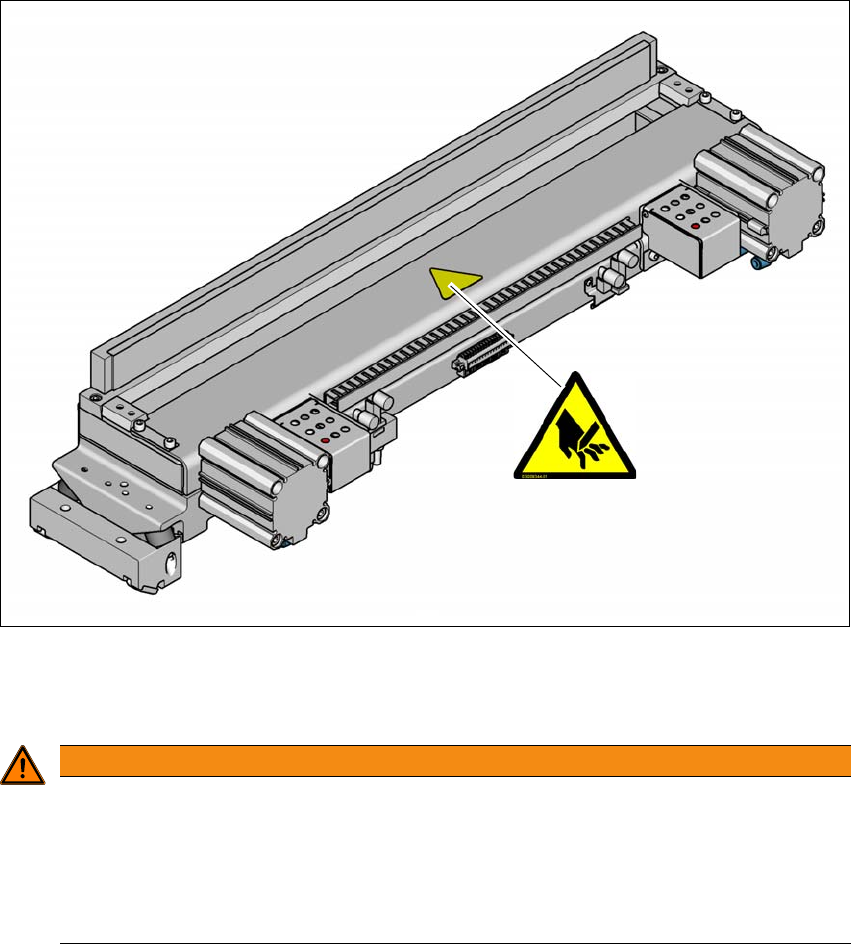

Fig. 2.2 - 9 Warning label W205 on the top of the tape cutter
– W205, item no. 03009344-01
2
WARNING
Risk of cuts!
Risk of cutting when working on the cutter!
Disconnect the machine from the power and compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter.
W205
2 Operational safety User manual E by SIPLACE
2.2 Warning labels From software version SC 712.1 Edition 05/2019
58
2.2.4.1 Warning label W205 on the used tape chute
2

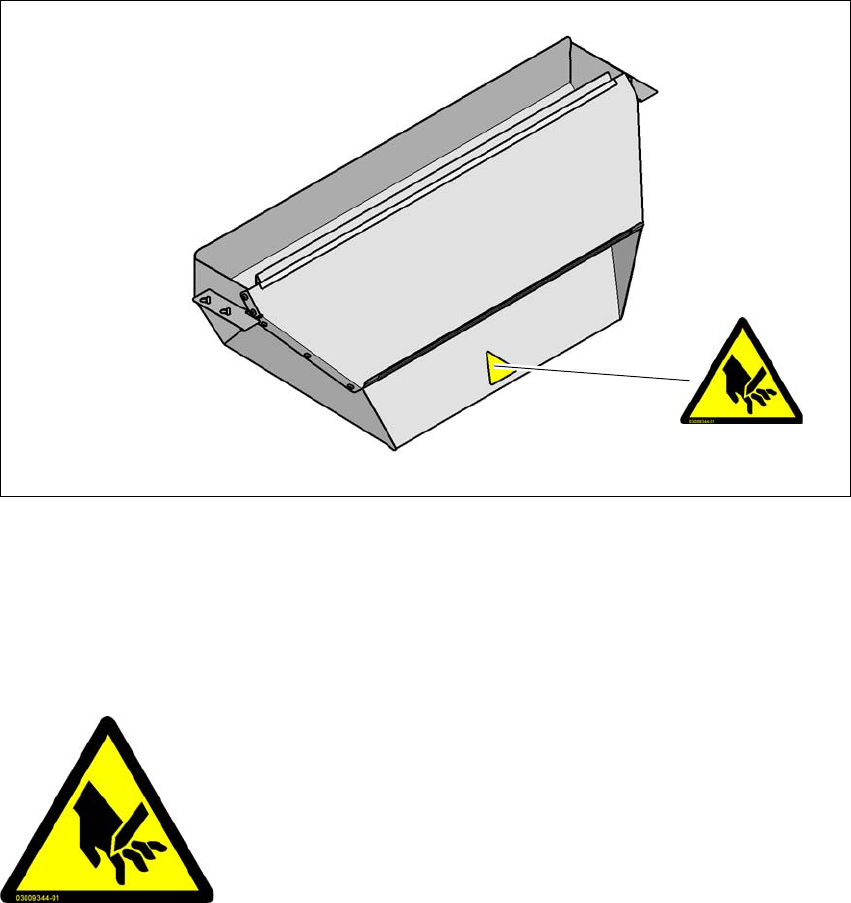

Fig. 2.2 - 10 Warning label W205 on the used tape chute
– W205, item no. 03009344-01
2.2.4.2 Warning label 205
Warning labels on tape cutter and used tape chute
2
W205 in fig. 2.2 - 9, page 57 and 2.2 - 10, page 58, item no. 03009344-01
Quantity per machine:
E by SIPLACE double sided: 4 2
E by SIPLACE single sided: 2 2
W205
2
2
2
2
2
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the machine is
switched off
