2 Operational safety User manual E by SIPLACE
2.2 Warning labels From software version SC 712.1 Edition 05/2019
60
2.2.5.1 High temperatures on the SIPLACE C&P14
2
1 in fig. 2.2 - 11, page 59 (quantity per SIPLACE C&P14: 1)
2.2.5.2 Laser class 2 on the component sensor
2
W laser class 2 in fig. 2.2 - 11, page 59, item no. 03134118-01 (quantity per C&P14: 1)
2
High temperatures on the SIPLACE C&P14 during continuous operation
Risk of burns due to high temperatures!
The housing of the star motor and the handle on the placement head may
become very hot during continuous operation and in ambient temperature in
excess of 22 °C.
Be careful when touching the parts.
2
2
2
LASER RADIATION
Laser class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.2 Warning labels
61
2.2.6 Warning label on the vacuum pump

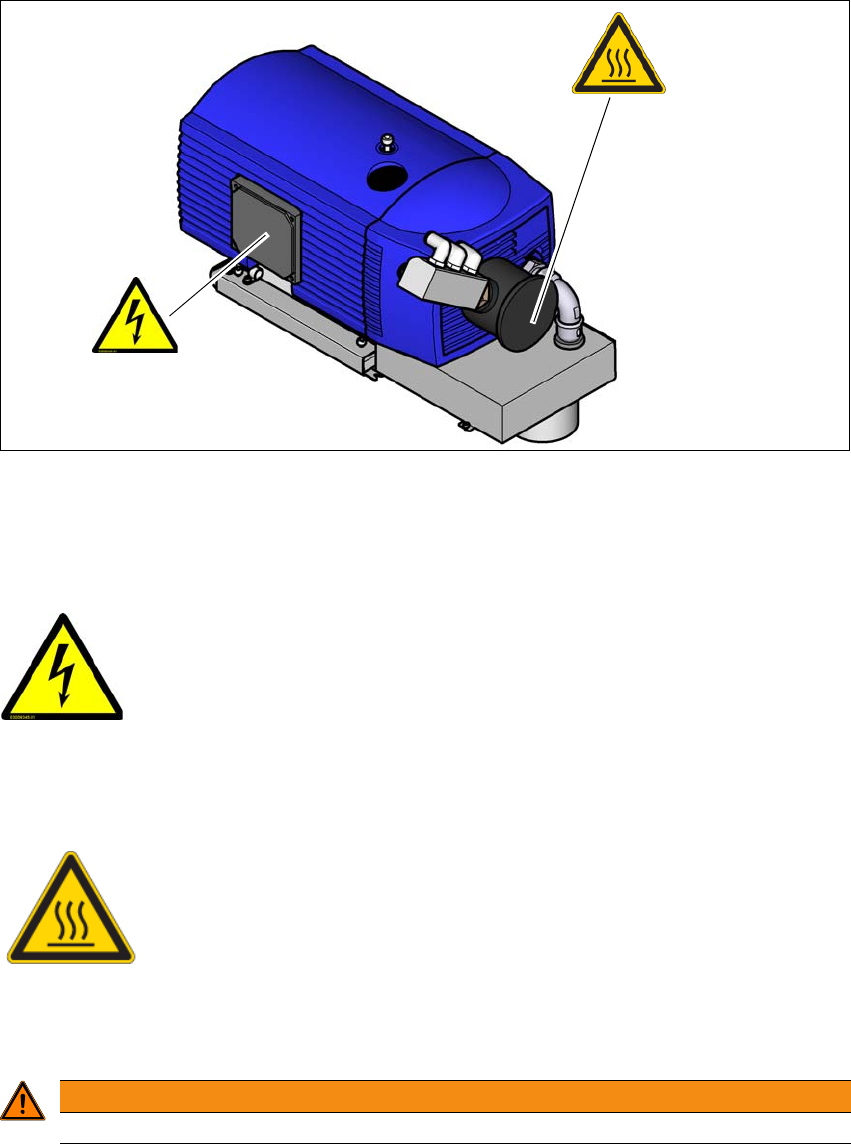

Fig. 2.2 - 12 Warning labels on the vacuum pump
– W206 on the vacuum pump
–W-Hot surface
2
W206 in fig. 2.2 - 12, page 61, item no. 03009345-01 (1 label on the vacuum pump).
Hot surface label in fig. 2.2 - 12, page 61, item no. 03031926-01 (1 label on the vacuum pump)
2
WARNING
Please observe the safety instructions in the user manual supplied.
W206
(W-Hot surface
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2
RISK OF BURNS FROM HOT SURFACE!
The filter housing of the vacuum pump can become hot during continuous
operation.
Take care when touching the filter housing.
2 Operational safety User manual E by SIPLACE
2.2 Warning labels From software version SC 712.1 Edition 05/2019
62
2.2.7 Warning label on the Cekon Plug
2
Fig. 2.2 - 13 Cekon plug
– W207, on the Cekon plug
2
W207 in fig. 2.2 - 13, page 62, item no. 03009346-01.
W207
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the capac-
itors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
