User manual E by SIPLACE 2 Operational safety From software version SC 712.1 Edition 05/2019 2.2 Warning labels 63 2.2.8 Warning labels power supply unit Fig. 2.2 - 14 Warning labels o f the power supply unit position (1…
2 Operational safety User manual E by SIPLACE
2.2 Warning labels From software version SC 712.1 Edition 05/2019
62
2.2.7 Warning label on the Cekon Plug
2

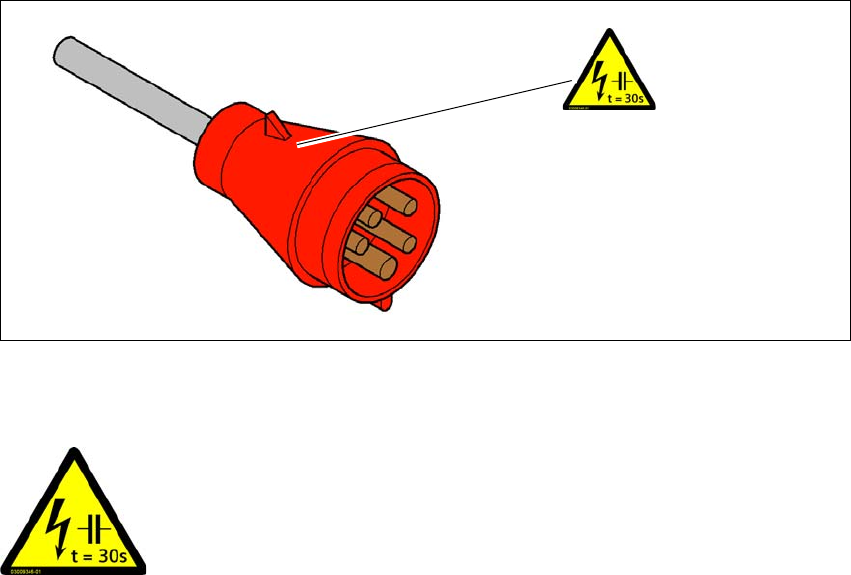

Fig. 2.2 - 13 Cekon plug
– W207, on the Cekon plug
2
W207 in fig. 2.2 - 13, page 62, item no. 03009346-01.
W207
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the capac-
itors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.2 Warning labels
63
2.2.8 Warning labels power supply unit

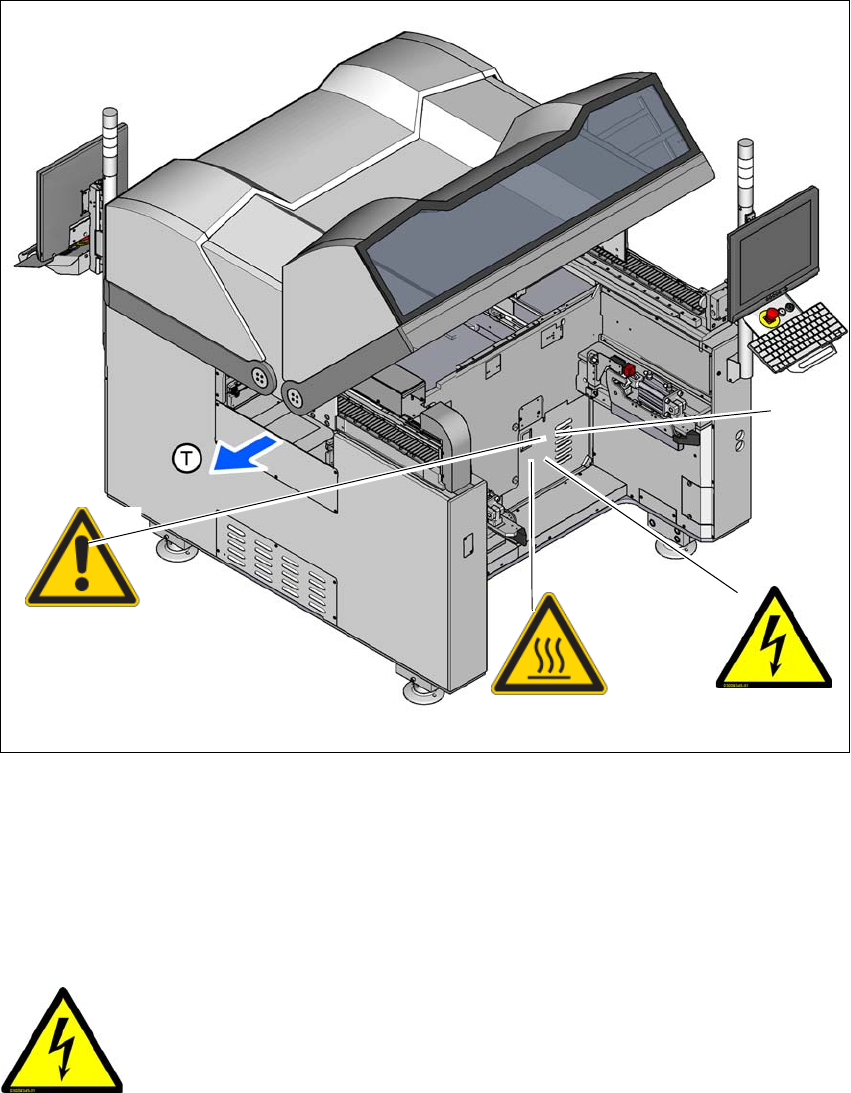

Fig. 2.2 - 14 Warning labels of the power supply unit position
(1) Position of the power supply (behind the cover)
– W206 on the position of the power supply
– W-High temperatures
– W- General warning
2
W206 in fig. 2.2 - 14, page 63, item no. 03009345-01.
W206
(1)
W-High temperatures
W-General warning
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2 Operational safety User manual E by SIPLACE
2.2 Warning labels From software version SC 712.1 Edition 05/2019
64
2
High temperatures label in 2.2 - 14, page 63, item no. 03113901-01
General warning in fig. 2.2 - 14, page 63, item no. 03079298-01
2
RISK OF BURNS FROM HIGH TEMPERATURES!
Hot surface may cause burn. Power supply modules behind the cover be-
come hot during continuous operation.
Do not touch during power-on and immediately after power-off.
2
GENERAL WARNING - RISK OF FIRE AND PART DAMAGE!
Be cautious when power supply is in slide-out location.
Handle the power supply unit with cautious to prevent any foreign ob-
jects from dropping into housing of power modules.
