2 Operational safety User manual E by SIPLACE 2.2 Warning labels From software version SC 712.1 Edition 05/201 9 66 2 Item no. 031145 91-01 W220 in fig. 2.2 - 1 5 , page 65 , item no. 03114 591-01. 2 2 MAIN POWER VOLTAGE…
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.2 Warning labels
65
2.2.8.1 Warning labels on the power supply unit

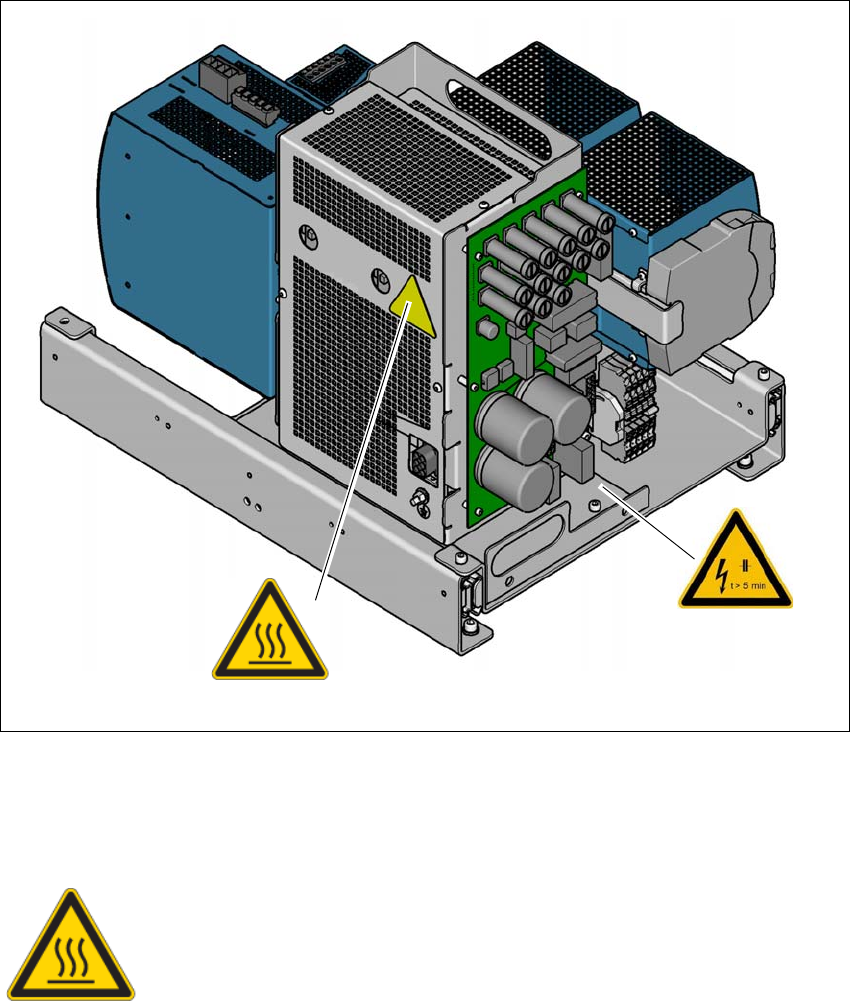

Fig. 2.2 - 15 Warning labels on the power supply unit
– W-High temperatures on the cover of the safety contactors
– W220, on the power supply fame
2
High temperatures label in 2.2 - 15, page 65, item no. 03113901-01
W-High temperatures
W220
2
RISK OF BURNS FROM HIGH TEMPERATURES!
The cover of the safety contactors can become hot during continuous oper-
ation.
Take care when touching the cover.
2 Operational safety User manual E by SIPLACE
2.2 Warning labels From software version SC 712.1 Edition 05/2019
66
2
Item no. 03114591-01
W220 in fig. 2.2 - 15, page 65, item no. 03114591-01.
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 5 minutes until the capaci-
tors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.2 Warning labels
67
2.2.9 Warning label on PCB conveyor
2

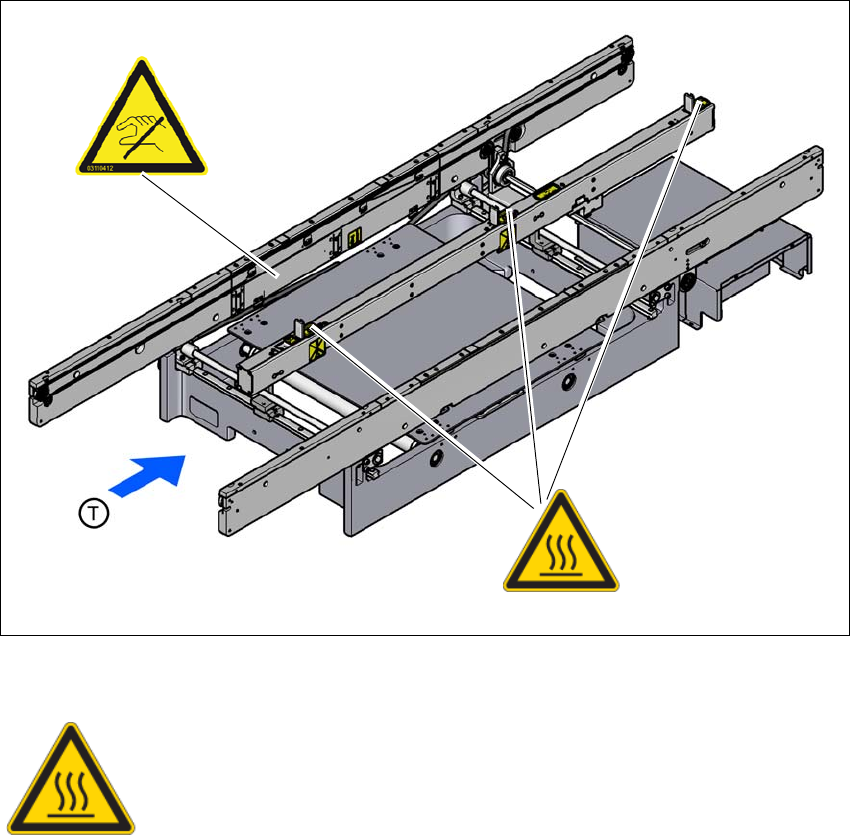

Fig. 2.2 - 16 Warning labels on the PCB conveyor
In fig. 2.2 - 16, page 67, hot surface label, item no. 03031926-01
W-Hot surface
2
RISK OF BURNS FROM HOT SURFACE!
The stopper units can become high temperatures continuous operation.
Take care when touching the stopper units.
