User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.2 Warning labels
69
2.2.10 Warning label on the changeover table
2

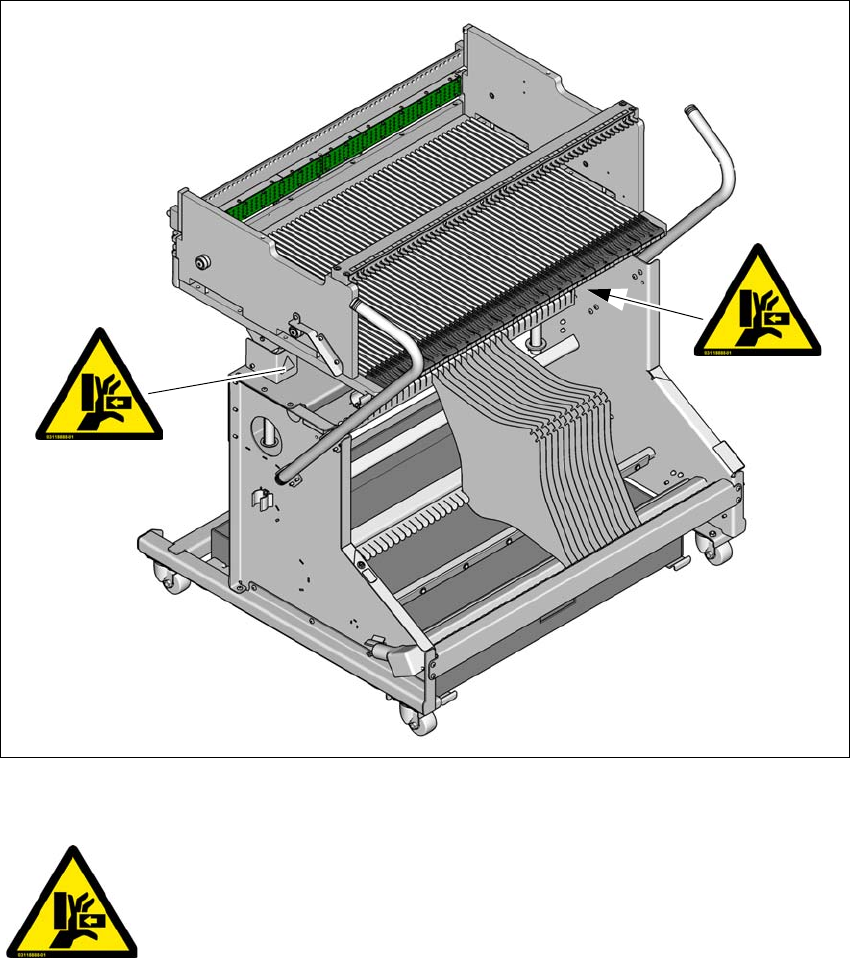

Fig. 2.2 - 17 Warning labels on the changeover table
In fig. 2.2 - 17, page 69, hand crushing label, item no. 03118888-01 (1 label on the left side and 1
label on the right side)
Hand crushing
Hand crushing
2
RISK OF HAND CRUSHING!
Lifting and lowering the changeover table can crushing the hands.
Take care when lifting and lowering the changeover table.
Observe the description in Section 4.4 on page 195.
2 Operational safety User manual E by SIPLACE
2.3 Classification of optical systems From software version SC 712.1 Edition 05/2019
70
2.3 Classification of optical systems
2.3.1 Classification of the whole machine
2
2.3.2 Laser classification
The following modules are assigned to laser class 2:
– Component sensor on SIPLACE CP14
2.3.3 Classification of camera systems
2
The operational machine as a whole is classified as laser class 2.
The laser classes are determined according to IEC 60825-1:2014.
PLEASE NOTE
The camera illumination system used has bright LEDs fitted. These are classified as risk
group 1, according to IEC 62741:2006.
Do not look into beam!
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.4 Safety instructions for transporting the machine
71
2.4 Safety instructions for transporting the machine
2
Use a fork-lift truck with the following specification to carry the machine:
Fork length: Min. 1800 mm
Carrying power: Min. 5,000 kg
Clear width between forks: Min. 350 mm 2
2
2.5 Safety instructions for operating the machine
2.5.1 Safety instructions for closing the protective covers
To avoid risk of injury when closing the protective covers on the machine, the operator must in-
struct the personnel concerned to always follow the instructions below when handling the protec-
tive covers.
2
WARNING
Risk of tilting!
Risk of tilting, if the required specifications for the fork-lift truck are not observed.
Only use the specified fork-lift for transportation.
Proper transportation of the machine is described in chapter 4
, section 4.1, page 169.
CAUTION
DANGER OF CRUSHING!
Risk of crushing hands if the protective covers are not closed correctly.
Close the protective covers correctly.
